1.
T

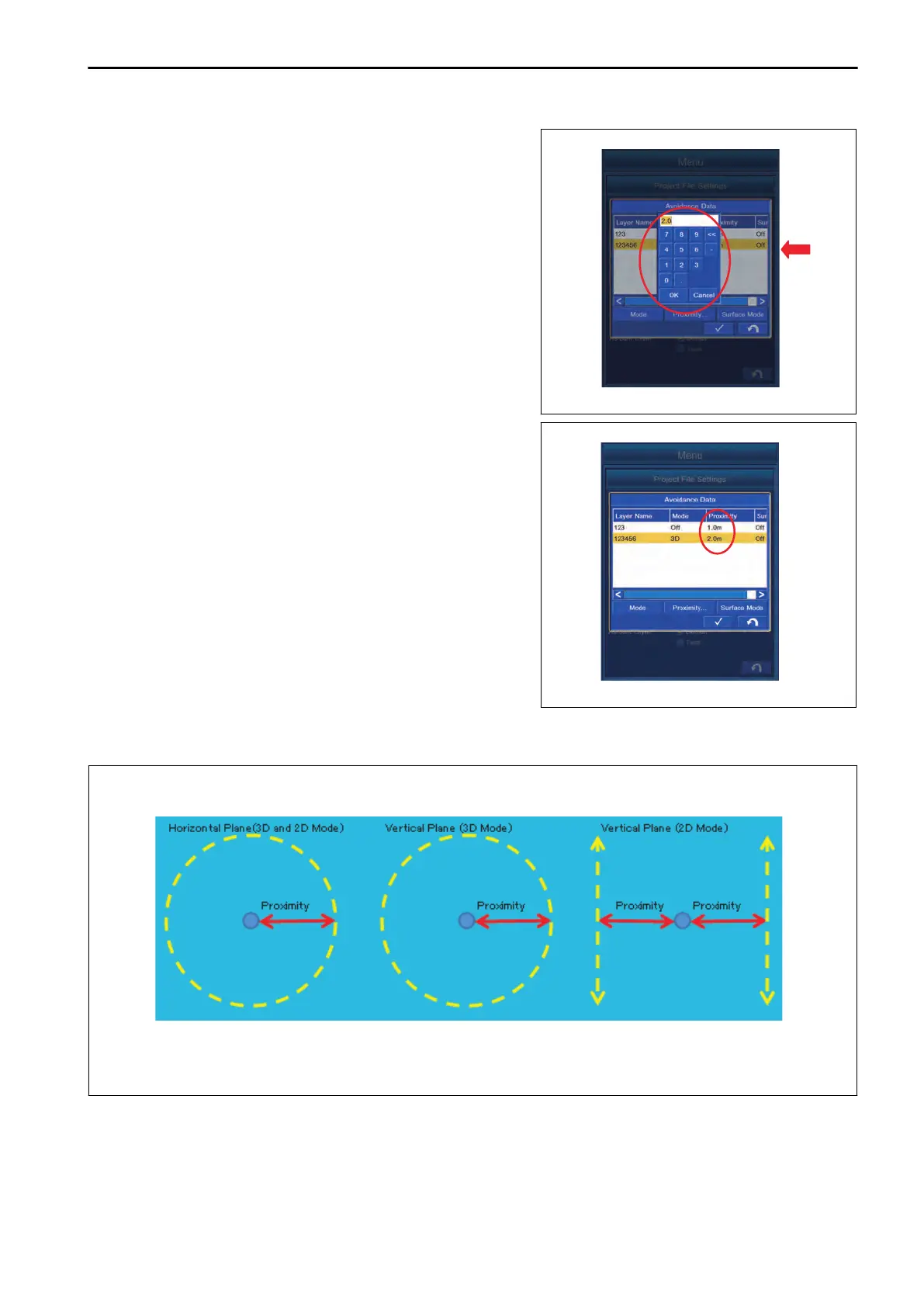

ap “Proximity...” button on the setting screen of Avoidance
Data.
The screen changes to the numeric keypad screen.
2.
Input the desired area, and tap OK button.
Selected Proximity is displayed.
Proximity varies depending on the shape of A
voidance Data.
Proximity by the shape of Avoidance Data is shown in the figure.
SURFACE MODE SETTINGS
Surface mode can be selected.
Y
ou can select the following Surface mode.
“Above”: When the work equipment is above the Starting point or Linework, a warning is displayed in this mode.
SETTING CONTROL BOX
7-51
