“Steering offset”
Y
ou can perform the display setting for the offset amount which
is set in the configuration of the steering Light Bar.
“Offset to line”
You can perform the display setting for the distance from the
bucket edge to the Alignment.
“Stationing”
You can perform the display setting for the distance from the
bucket edge to the Stationing.
“Bucket slope”
You can perform the display setting for the inclination of the
bucket edge (lateral direction of machine) against Alignment.

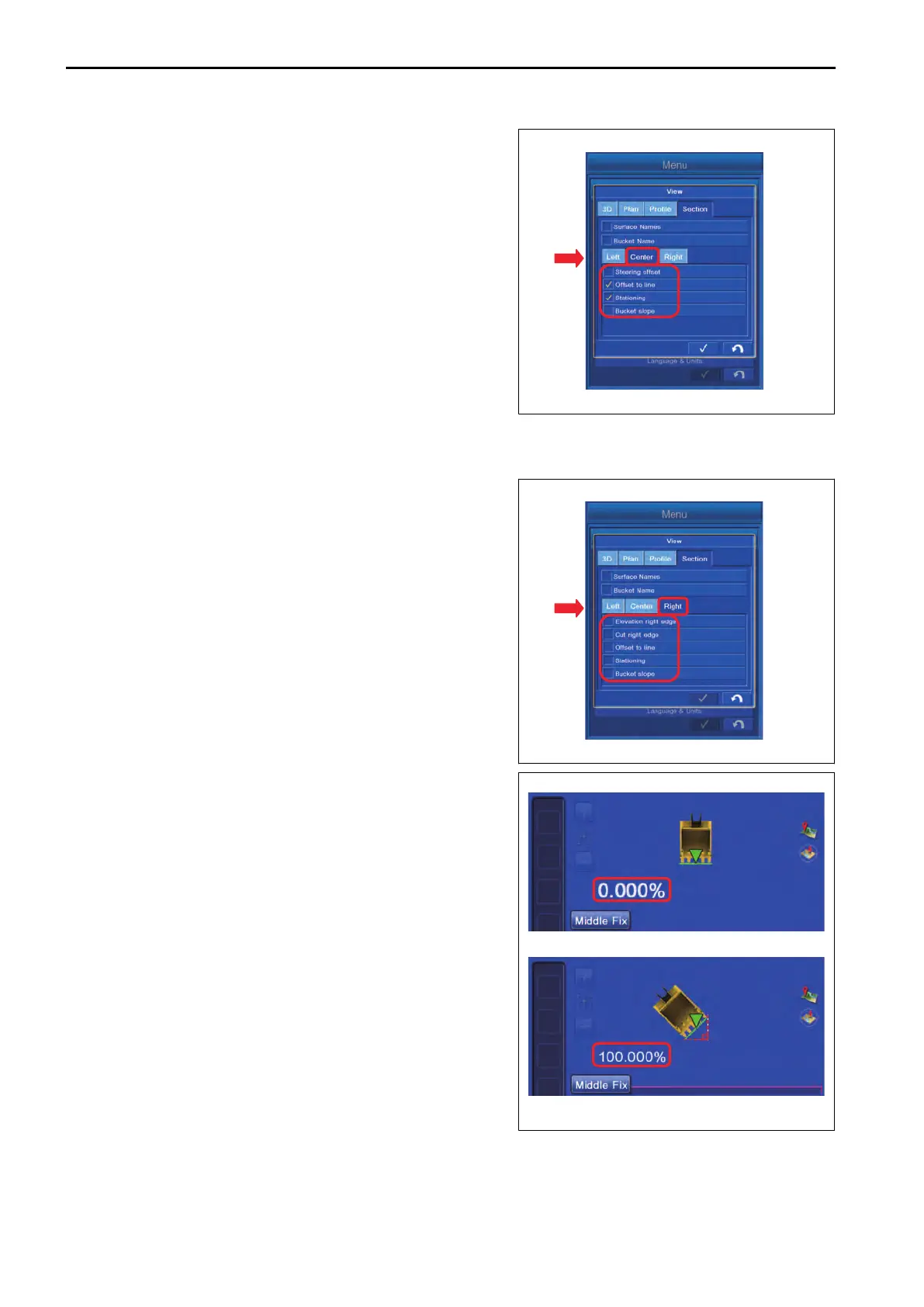

SETTING ITEMS BY RIGHT TAB
You can perform the display setting for the rightmost position information of the bucket edge.
“Elevation right edge”
You can perform the display setting for the Elevation of the
bucket edge (rightmost).
“Cut right edge”
You can perform the display setting for the distance from the
bucket edge (rightmost) to the Surface.
“Offset to line”
You can perform the display setting for the distance from the
bucket edge to the Alignment.
“Stationing”
You can perform the display setting for the distance from the
bucket edge to the Stationing.
“Bucket slope”
You can perform the display setting for the inclination of the
bucket edge (lateral direction of machine) against Alignment.
REMARK
The bucket inclination is displayed in %.
• 0.000 % for the inclination of 0 °
• 100.000 % for the inclination of 45 °
DESIGN DATA SETTINGS
Y
ou can perform the display setting of Design Data, Alignment, and Point Options.
CONTROL BOX SETTING
7-92
