4.

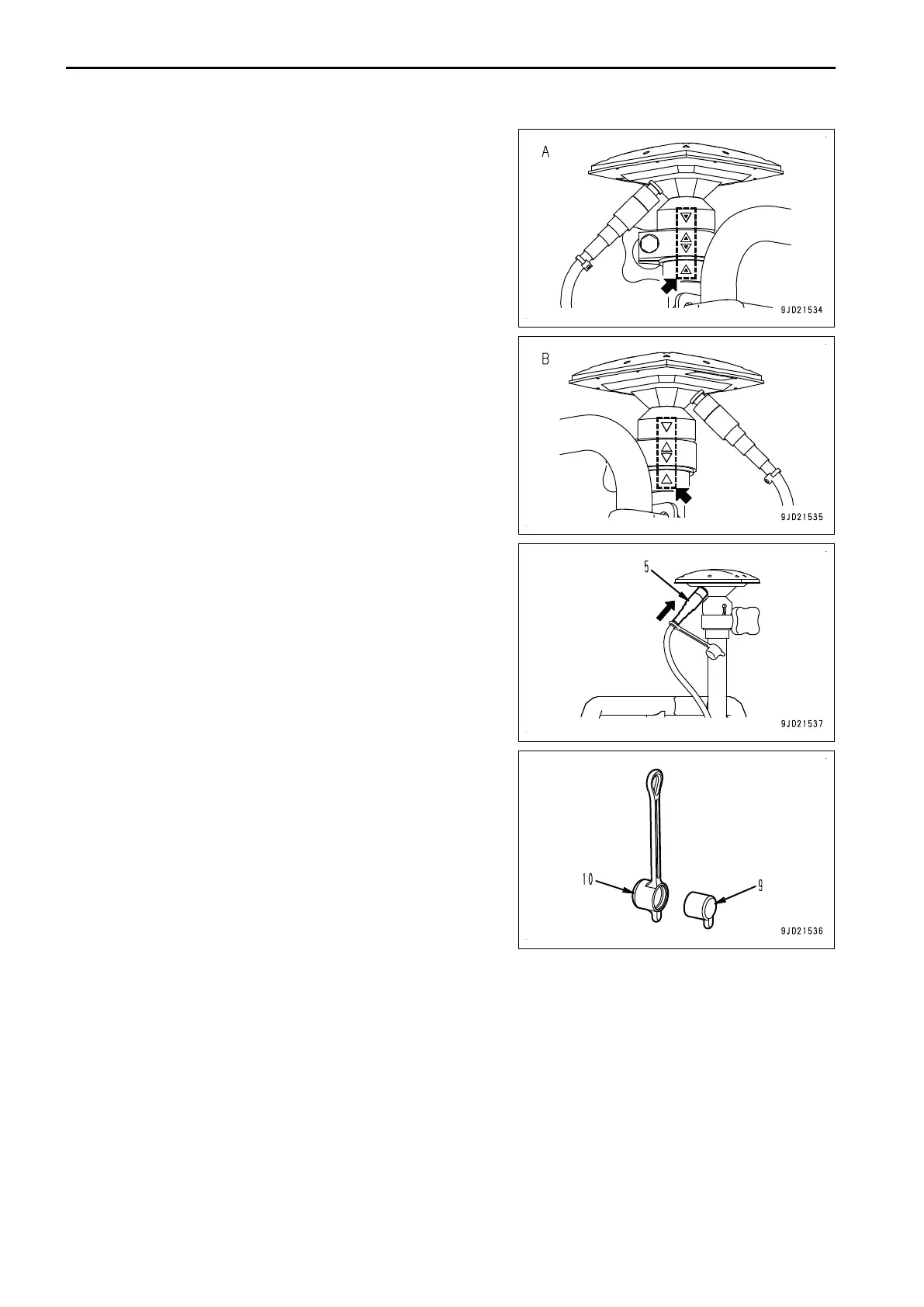

Align
the marks of the handrail and GNSS antenna, tighten
the GNSS antenna mounting knob (6) at that position, and
fix the antenna to the handrail.
Main antenna (A): Rear of cab
AUX antenna (B): Hydraulic tank side
5.
Put the connector (5) of GNSS antenna and tighten it.
NOTICE
T
ighten the thread while pushing the connector in the
direction of arrow when connecting the connector (5)
of GNSS antenna. If it is tightened lightly, it may be-
come loose during operation.
6.
Put on the dustproof cap (9) removed from GNSS antenna
to the dustproof cap (10) of GNSS antenna cable side.
If the cap is not put on, the dust easily enters the inside.
REMOVE AND INSTALL HANDRAIL
Consult your Komatsu distributor for handling of the handrails when the machine is transported. This is because
the total height may exceed the height regulation depending on the height of the trailer.
TRANSPORTATION OPERATION
3-62
