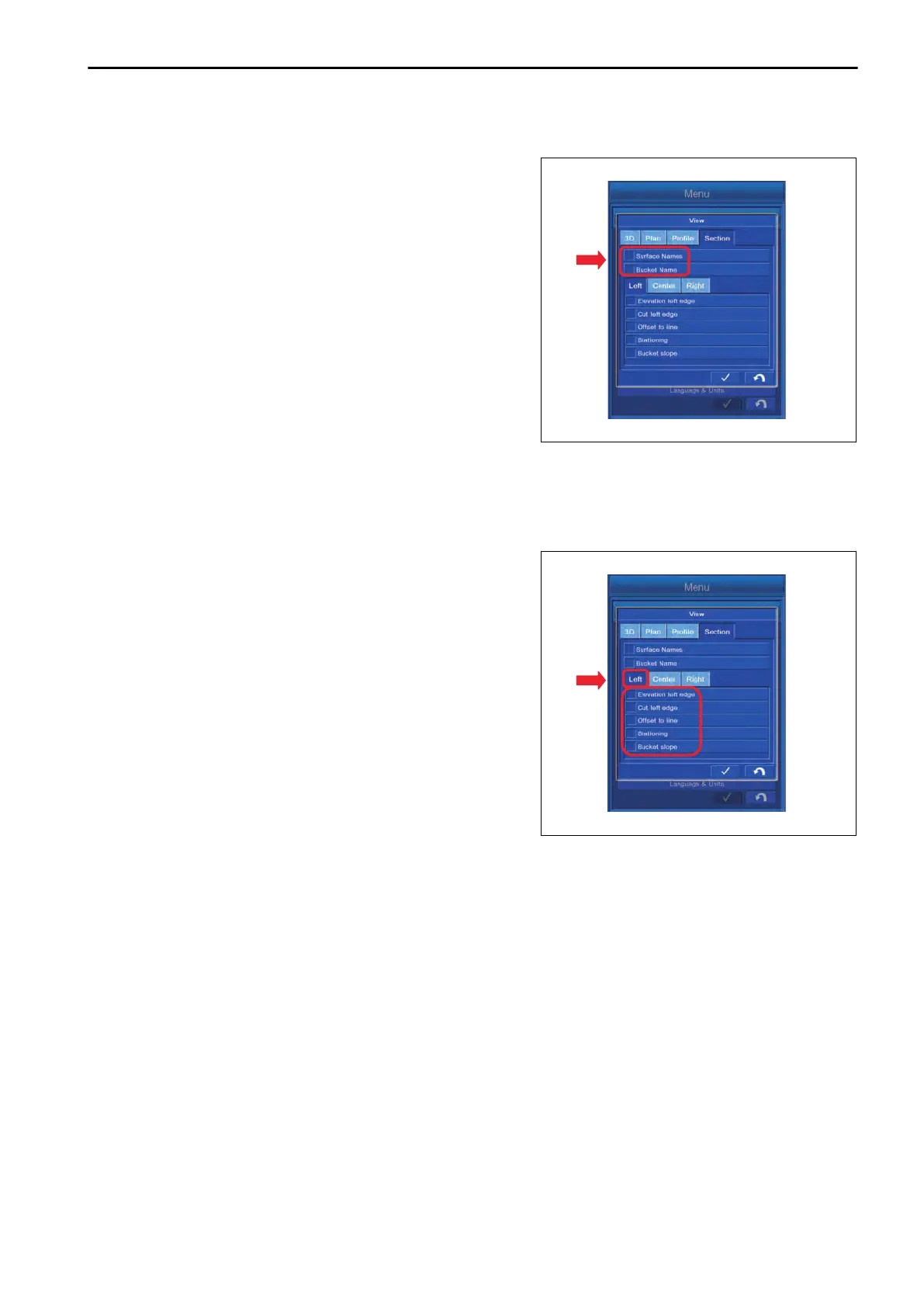

SECTION VIEW SETTINGS CONTENTS
“Surface Names”
Y
ou can display Surface Names.
“Bucket Name”
You can display Bucket Name.
For the items explained below, by putting a tick in the check box, “Display” is set. If a tick is not put, “Non-dis-
play” is set.
SETTING ITEMS BY LEFT TAB
You can perform the display setting for the leftmost position information of the bucket edge.
“Elevation left edge”
You can perform the display setting for Elevation of the bucket
edge (leftmost).
“cut left edge”
You can perform the display setting for the distance from the
bucket edge (leftmost) to the Surface.
“Offset to line”
You can perform the display setting for the distance from the
bucket edge to the Alignment.
“Stationing”
You can perform the display setting for the distance from the
bucket edge to the Stationing.
“Bucket slope”
You can perform the display setting for the inclination of the bucket edge (lateral direction of machine) against
Alignment.
SETTING ITEMS BY CENTER TAB
You can perform the display setting for the center position information of the bucket edge.
SETTING CONTROL BOX
7-91
