TRANSPORTATION
For
the method of transportation, see the Operation and Maintenance Manual of standard machine, OPERA-
TION, “TRANSPORTATION”.
However, this machine is different from standard machine in machine weight, radio antenna, GNSS antenna
bracket, and work equipment cylinder with sensor which automatically controls work equipment.
For the transportation, see the Operation and Maintenance Manual of standard machine.
REMOVE AND INSTALL GNSS ANTENNA

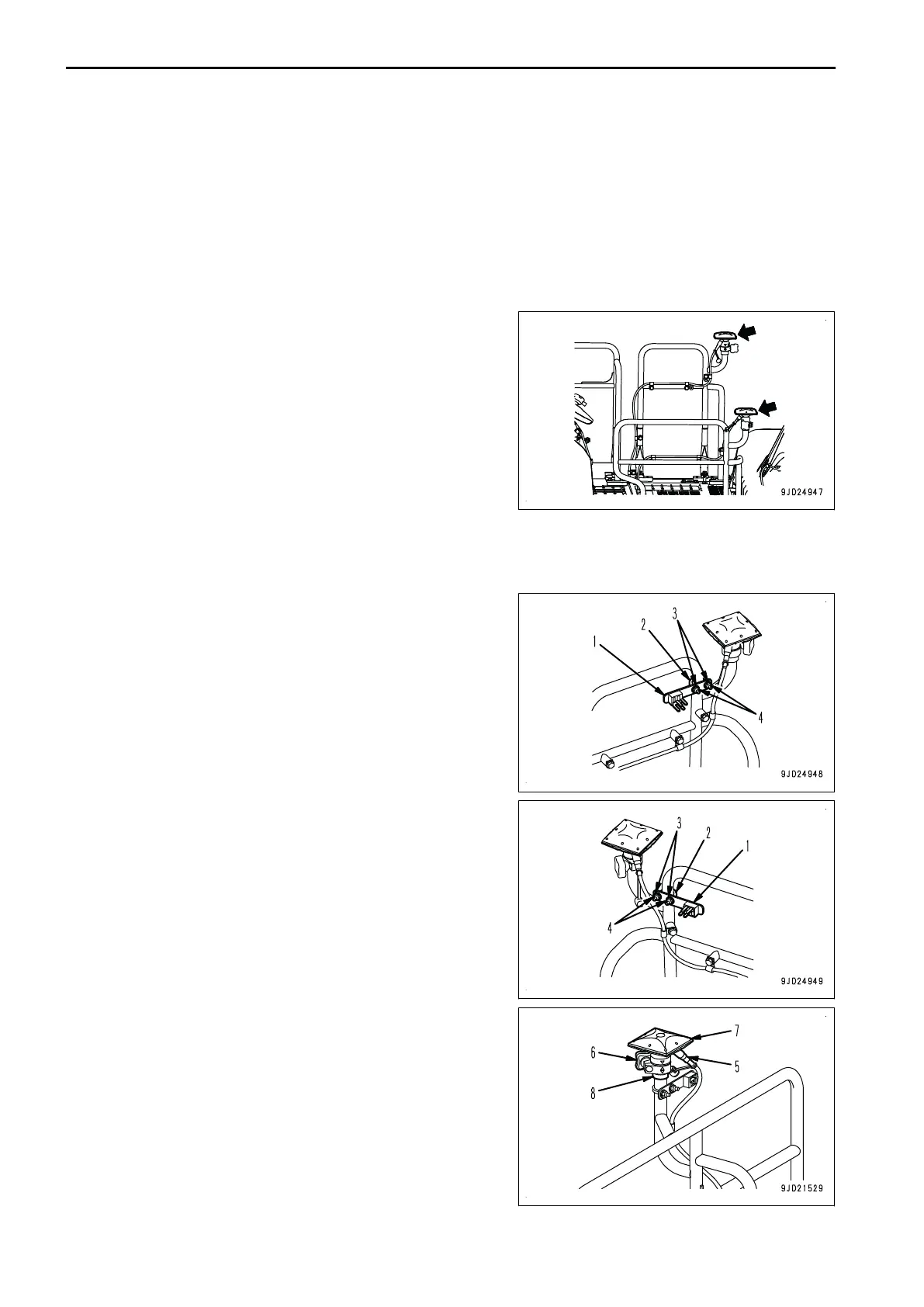

GNSS antenna is located at the position in the figure on the
right.
if the GNSS antenna is damaged or for transportation, perform
the removal or installation of the antenna by the following pro-
cedure.
METHOD FOR REMOVING GNSS ANTENNA
1.
Install the wiring harness fixing bracket (1) for transportation to the antenna bracket with the U bolt (2),
washer (3), and nut (4), and secure it.
Right side of the machine
Left side of the machine
2.
Loosen the connector (5) for GNSS antenna installed to
the handrail, and disconnect the connector.
3.
Loosen the GNSS antenna mounting knob (6), and re-
move the GNSS antenna (7) and the bracket (8) from the
handrail.
TRANSPORTATION OPERATION
3-60
