REMARK
The

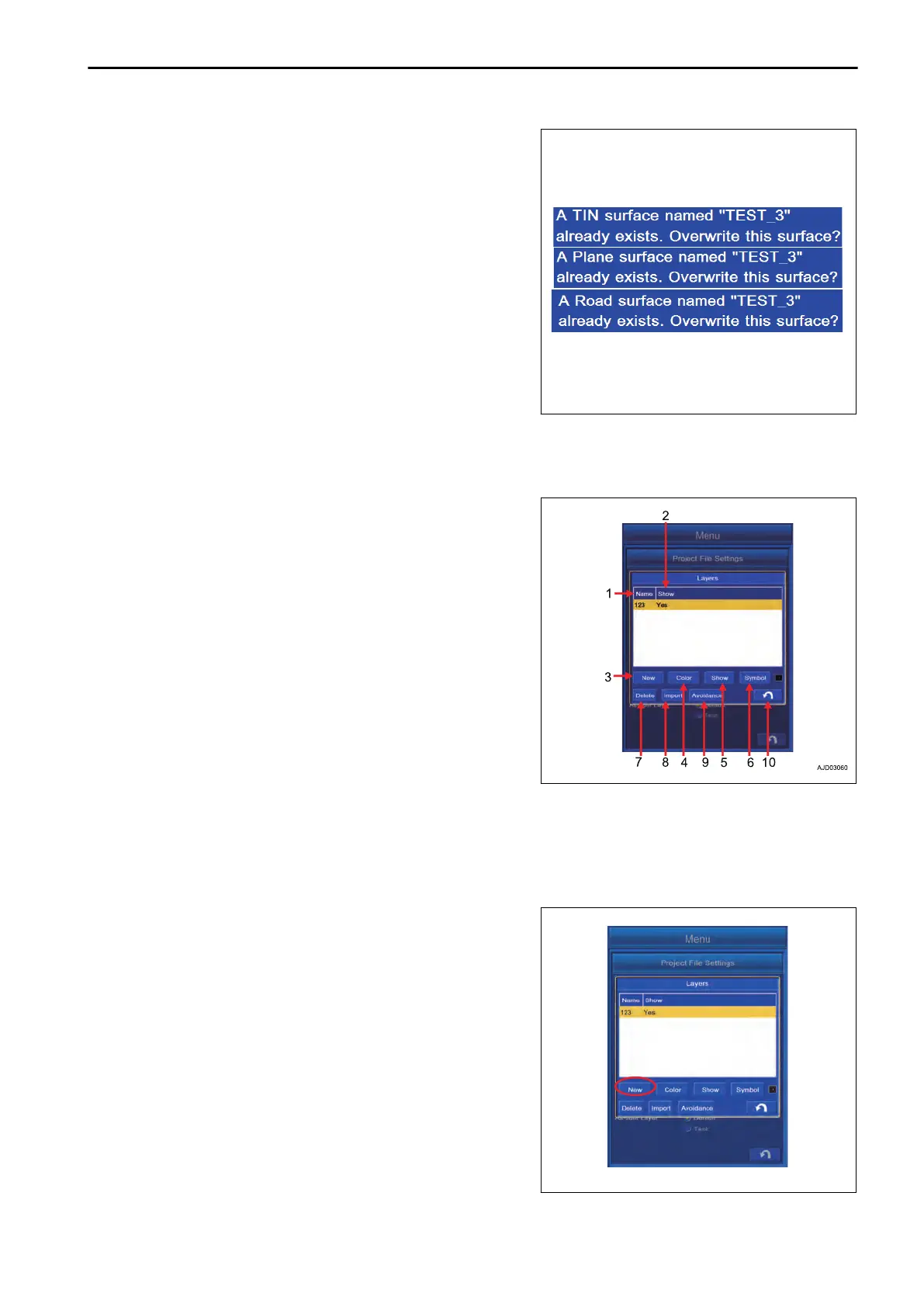

display of “MessageBox” is different as shown in the
illustration on the right.
LAYERS SETTINGS
Layer contains the points which configure Control Point, Topo survey point, and Surface. These points are
saved in the layer, and you can set and edit the display with this menu.
The contents displayed in the layer setting are as follows.
(1) “Layer Name”: Surface Names are displayed.
(2) “Show”: Setting of Display/Non-display is indicated by “Yes”/
“No”.
Contents of operation by Layer setting
(3) “New” button: You can create the new layer.
(4) “Color” button: You can select the color of point.
(5) “Show” button: You can set Display/Non-display of layer by
“Yes/No”.
(6) “Symbol” button: You can change the display of point.
(7) “Delete” button: You can delete the layer.
(8) “Import” button: You can import the Point(s) and Line-
work(s).
(9) “Avoidance” button: You can set the Avoidance Data.
(10) RETURN button: The screen returns to the previous screen.
METHOD FOR CREATING NEW LAYERS
You can create new Layers.
1.
Tap “New” button on “Layers” setting screen.
SETTING CONTROL BOX
7-45
To Next Page
