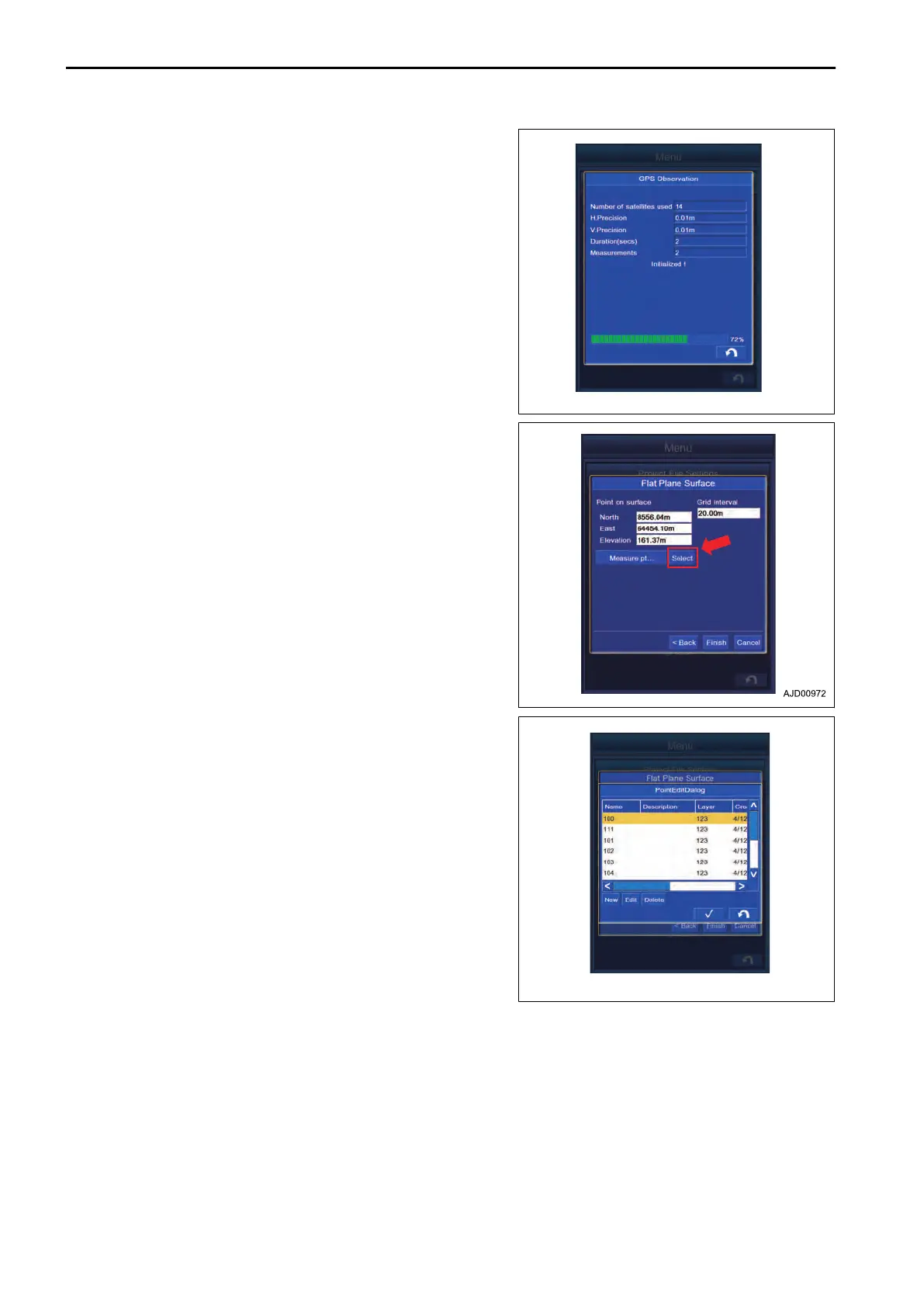

When using bucket edge coordinates
Set
the bucket edge to arbitrary
position, and tap “Measure
Point”
button.
Measurement
of
the
bucket
edge
coordi-
nates
starts.
When
the
measurement
is
finished,
the
value
is displayed in “Point on surface”.
•
When using the existing point coordinates
T
ap
“Select”
button,
and
select
any
point
by
which Surface
is created from the list.
Grid interval
Y
ou can set the Grid interval.
CONTROL BOX
SETTING
7-30
