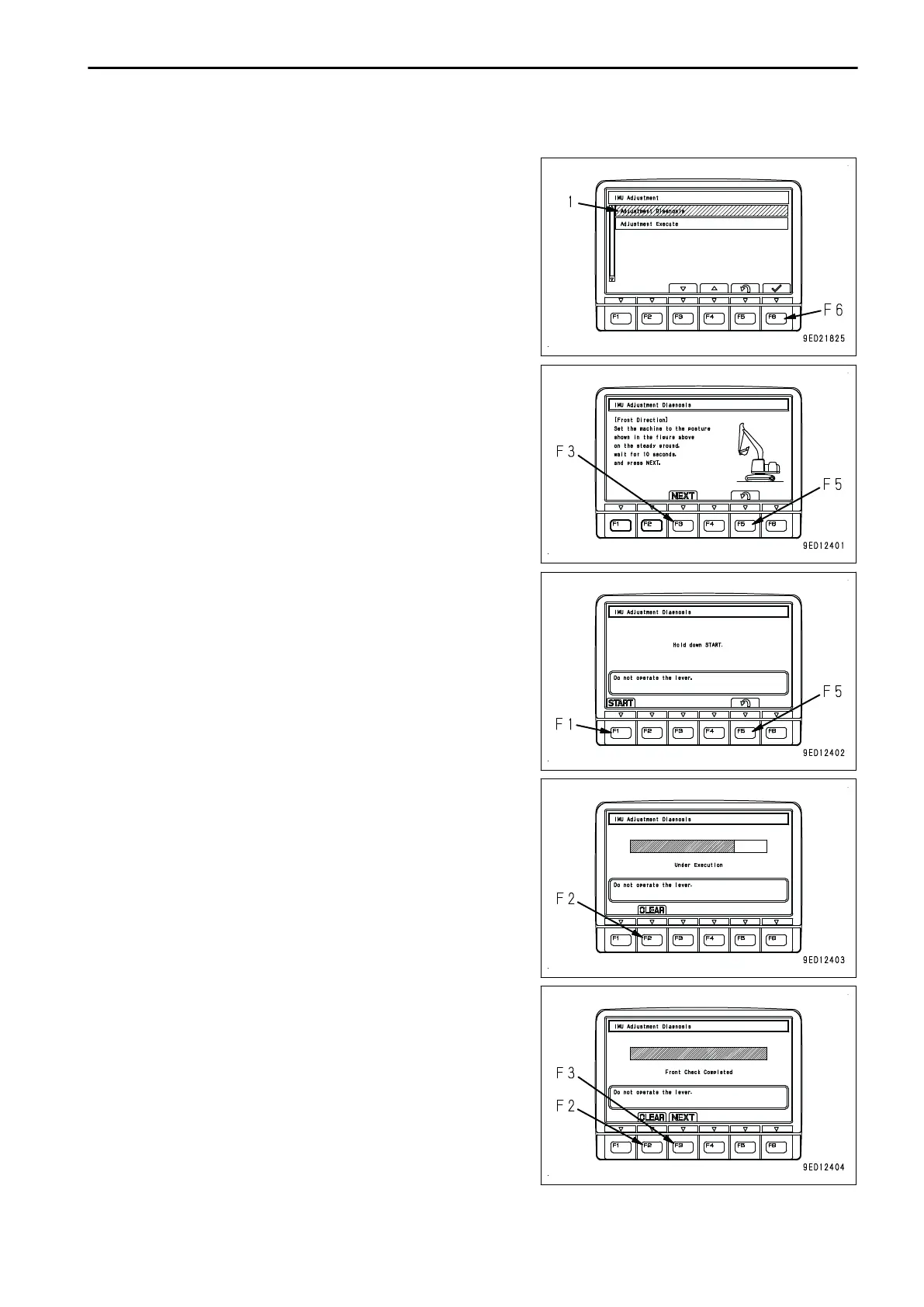

METHOD FOR DIAGNOSING IMU
1.
Select the “Adjustment Diagnosis” (1) on the “IMU Adjust-
ment” screen, and press the switch “F6”.
F3:
Moves to the next item (1 line below). When it is on the
last line, it moves to the first line.
F4: Moves to the previous item (1 line above). When it is
on the first line, it moves to the last line.
F5: Returns the screen to “MC Setting” screen.
F6: Executes the selected item.
2.
Move the machine to be the same posture as one dis-
played on the machine monitor.
Make the track frame face front (sprocket at rear), and set
the upper structure and track frame in parallel at this time.
Move the machine to be the correct posture, and then
press the switch “F3”.
F3: Proceeds to the next step.
F5: Cancels “Adjustment Diagnosis” and returns the
screen to “IMU Adjustment” screen.
3.
Hold down the switch “F1” according to the display on ma-
chine monitor.
F1: Proceeds to the next step.
F5: The screen returns to the screen of step 2.
“Adjustment Diagnosis” in a forward direction is executed,
wait for a little while until it is completed.
F2: Cancels the diagnosis and returns the screen to the
screen of step 2.
4.
When the “Adjustment Diagnosis” in a forward direction is
completed,
the screen changes to the screen shown in the
figure on the right. Press the switch “F3”.
F2: The screen returns to the screen of step 2.
F3: Proceeds to the next step.
SETTING MACHINE MONITOR
7-181
