BUCKET EDGE POSITION
With
“Bucket edge position” menu of bucket edge position information, you can check bucket edge position in-
formation (bucket edge accuracy ), and correct the bucket edge position by comparing the bucket edge position
with the bench mark (control point) at jobsite.

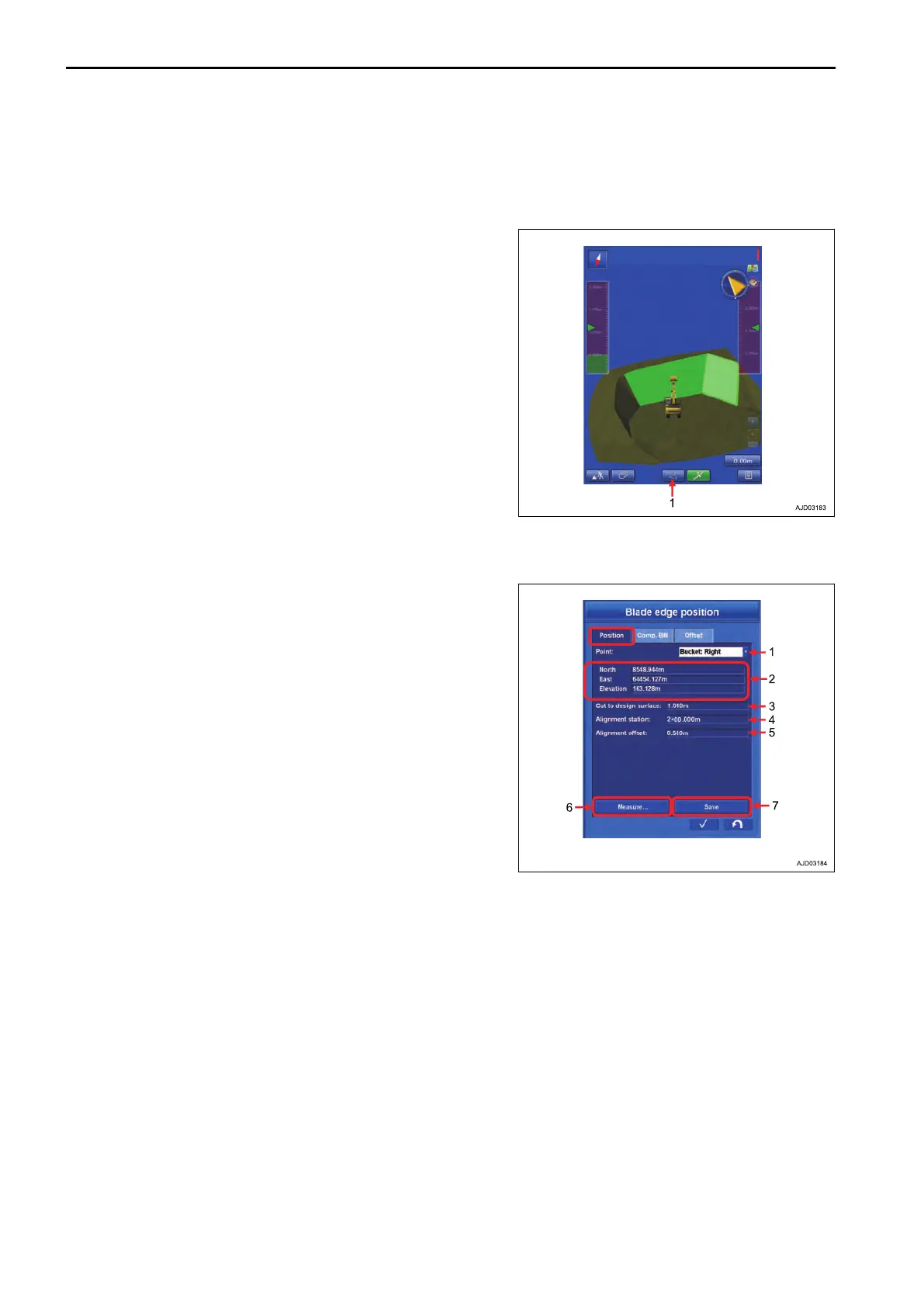

Tap the button (1) at the bottom of the working screen. The dis-
play changes to the bucket edge information screen.
DISPLAY BUCKET EDGE POSITION
With “Position” tab, the current bucket edge position information is displayed.
(1) “Point”
Measuring point of bucket edge position can be selected.
(2) “North”, “East”, “Elevation”
Displays the bucket edge position coordinates.
(3) “Cut to design surface”
Displays vertical distance between bucket edge and the design
data.
(4) “Alignment station”
Displays the bucket edge position with the observation point.
(5) “Alignment offset”
Displays the distance between center line and bucket edge po-
sition.
(6) “Measure...”
You can measure the bucket edge position again.
(7) “Save”
You can save the measuring result.
METHOD FOR SETTING MEASURED BUCKET EDGE POSITION
Tap Point column, and you can set the bucket edge position to be measured.
• “Bucket: Left cutting edge”Leftmost position of bucket edge
• “Bucket: Middle cutting edge”Middle position of bucket edge
• “Bucket: Right cutting edge”Rightmost position of bucket blade edge
DISPLAY BUCKET EDGE COORDINATES
In the North, East, Elevation, bucket edge coordinates which has been set at point are displayed.
BUCKET EDGE POSITION EXECUTIONS
8-26
