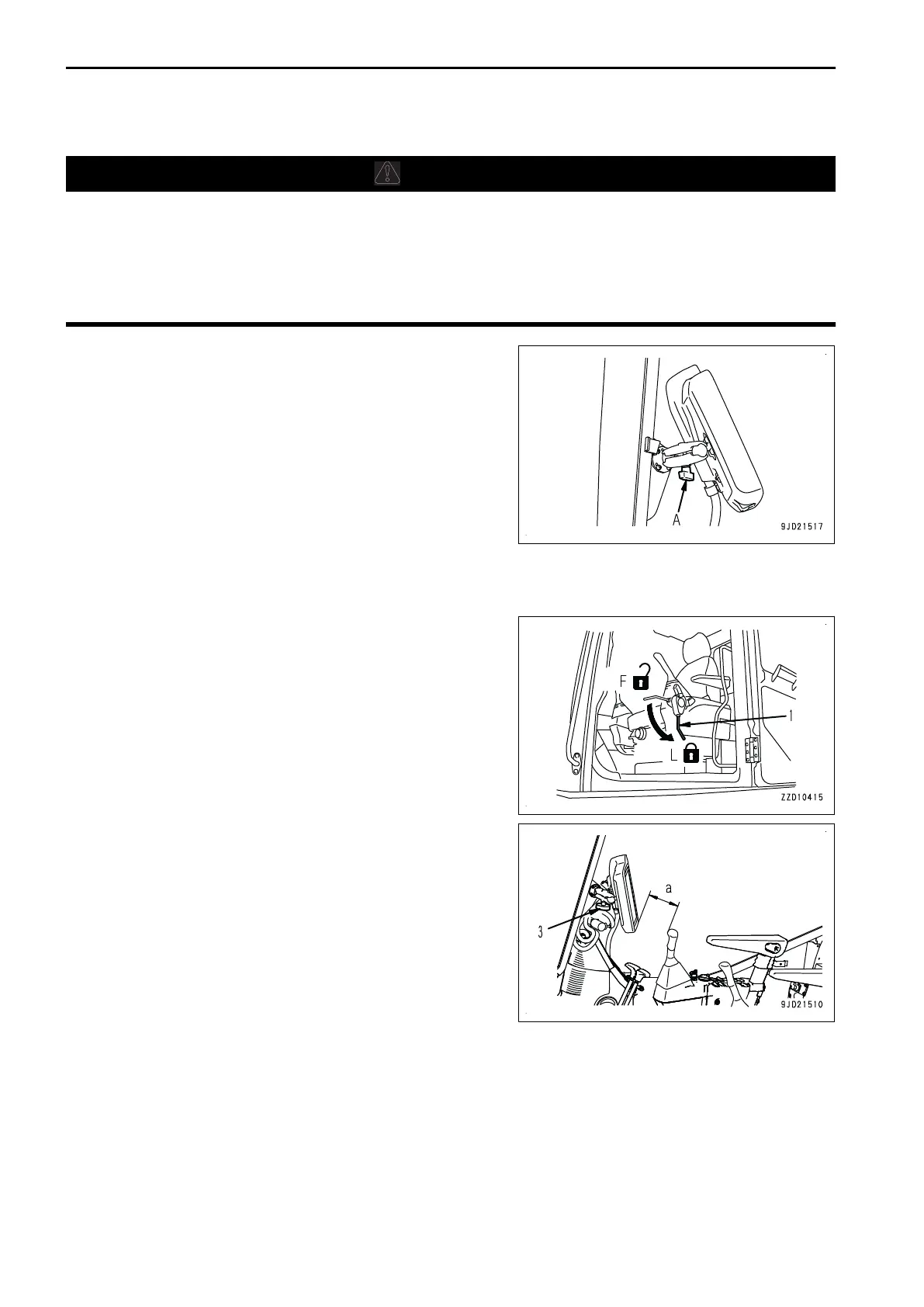

METHOD FOR ADJUSTING CONTROL BOX POSITION
WARNING
• In
order to perform the position adjustment of control box, place the machine on a level ground,
lower the work equipment to the ground, stop the engine, and check that the power supply of con-
trol box is off.
• Set the lock lever to LOCK position always when performing the position adjustment of control box.
If the control lever or control pedal is touched by mistake when the lock lever is in FREE position, it
may cause serious personal injury or death.
NOTICE
• The
control box may fall by its own weight when loos-
ening the mount of control box. Hold the control box
securely, and loosen the handle (A) of mount.
• Hold the control box securely when installing the
mount of control box. Tighten the handle (A) of the
mount fully, and do not release the control box until
the position is secured.
If the handle (A) is not tightened sufficiently, control
box may fall off and break.
• Do not perform position adjustment of control box
while the handle (A) is tightened. Otherwise, control
box or mount may break.
1.
Lower the work equipment to the level ground, and set the
lock lever (1) securely to LOCK position (L).
2.
Stop the engine.
3.
Turn the handle (3) of mount to loosen it, adjust the posi-
tion
of control box for you to see it well, and securely tight-
en the mount.
Adjust the position of control box so that the clearance (a)
is kept 40 mm {1.6 in} or more with R.H. work equipment
control lever tilted forward.
MACHINE OPERATIONS AND CONTROLS OPERATION
3-46
