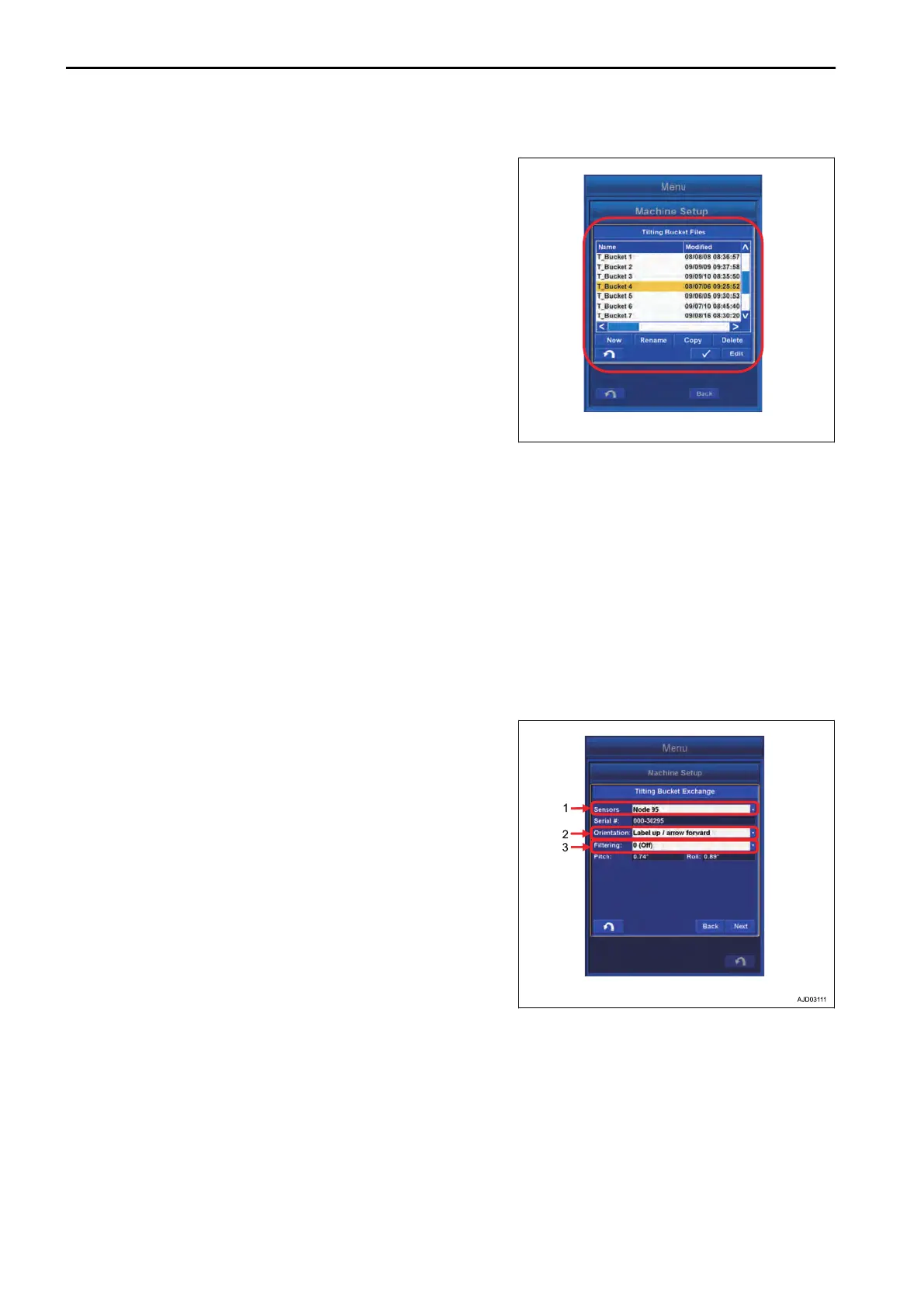

METHOD FOR SELECTING TILT BUCKET FILES
1.
Select the bucket file to be used from the list on Tilting
Bucket Files screen.
• When
changing the content of selected bucket file, tap
the “Edit” button.
• When not changing, tap the ENTER button.
REMARK
• The currently selected bucket is highlighted in yellow.
• If the bucket file is not in the list, tap the “New” button
and create the file newly. The input data will be saved
in the file.
Function of the button in the screen is as follows.
• “New” button
Creates the new file based on the highlighted file.
• “Rename” button
Changes the name of the highlighted file.
• “Copy” button
Copies the bucket file from the USB flash drive into
the control box.
• “Delete” button
Deletes the highlighted file.
• RETURN button
Returns the display to the previous screen.
2.
After the setting is completed, turn the starting switch key to OFF position, turn it to ON position again, and
restart the control box.
METHOD FOR SELECTING TIL
T SENSOR
1.
Select the name of installed tilt sensor from the pull down
menu (1).
2.
Select the direction of installation of tilt sensor from the pull
down menu (2).
Set the tilt sensor label and direction of arrow on the label.
3.
Select the filter level from the pull down menu (3).
Filter level can be selected from 0 to 4.
Filter level “0” is the state of no filter, and sensor sensibility
is high. The higher the filter level is, the lower the sensor
sensibility is.
The error may occur on the value sensed by controller due
to disturbance such as vibration or shock. The use at filter
level “0” (OFF) is not recommended.
4.
After the selection is completed, tap the "Next" button.
CONTROL BOX SETTING
7-164
