• Calibrate the Vigilance II monitor before monitoring. For more information, see the Vigilance II
operator’s manual for the calibration instructions.
• For the Vigilance II monitor, Flow Control must be set to 2 seconds.
20.5.3 Connecting to the Vigileo Monitor
The following figure shows the rear housing connectors of the Vigileo monitor.
To connect the Vigileo monitor, follow this procedure:
1.
Connect the end of the CCO/SvO
2
cable marked CN1 to the CCO/SvO
2
module.
2. Insert the CVP signal end of the CCO/SvO
2
cable into the analog signal input port on the rear housing of
the Vigileo monitor.
3. Insert UART end of the CCO/SvO
2
cable into the serial port on the rear housing of the Vigileo monitor.
4. Enter the Serial Port Setup menu of the Vigileo monitor, and make the following settings:
â—† Device: IFMout
â—† Baud Rate: 19200
â—† Parity: None
â—† Stop Bits: 1
â—† Data Bits: 8
â—† Flow Control: 2 seconds
5. Enter the Analog Input Port Setup menu of the Vigileo monitor, and set the CVP as follows:
â—† Parameter: CVP
â—† Voltage Range: 0-5 v
â—† Full Scale Range: 100 mmHg (13.3 kPa)
â—† Simulated High Value:100 mmHg (13.3 kPa)
â—† Simulated Low Value: 0 mmHg (0.0 kPa)
For more information, see the Vigileo operator’s manual for the operation of the monitor.

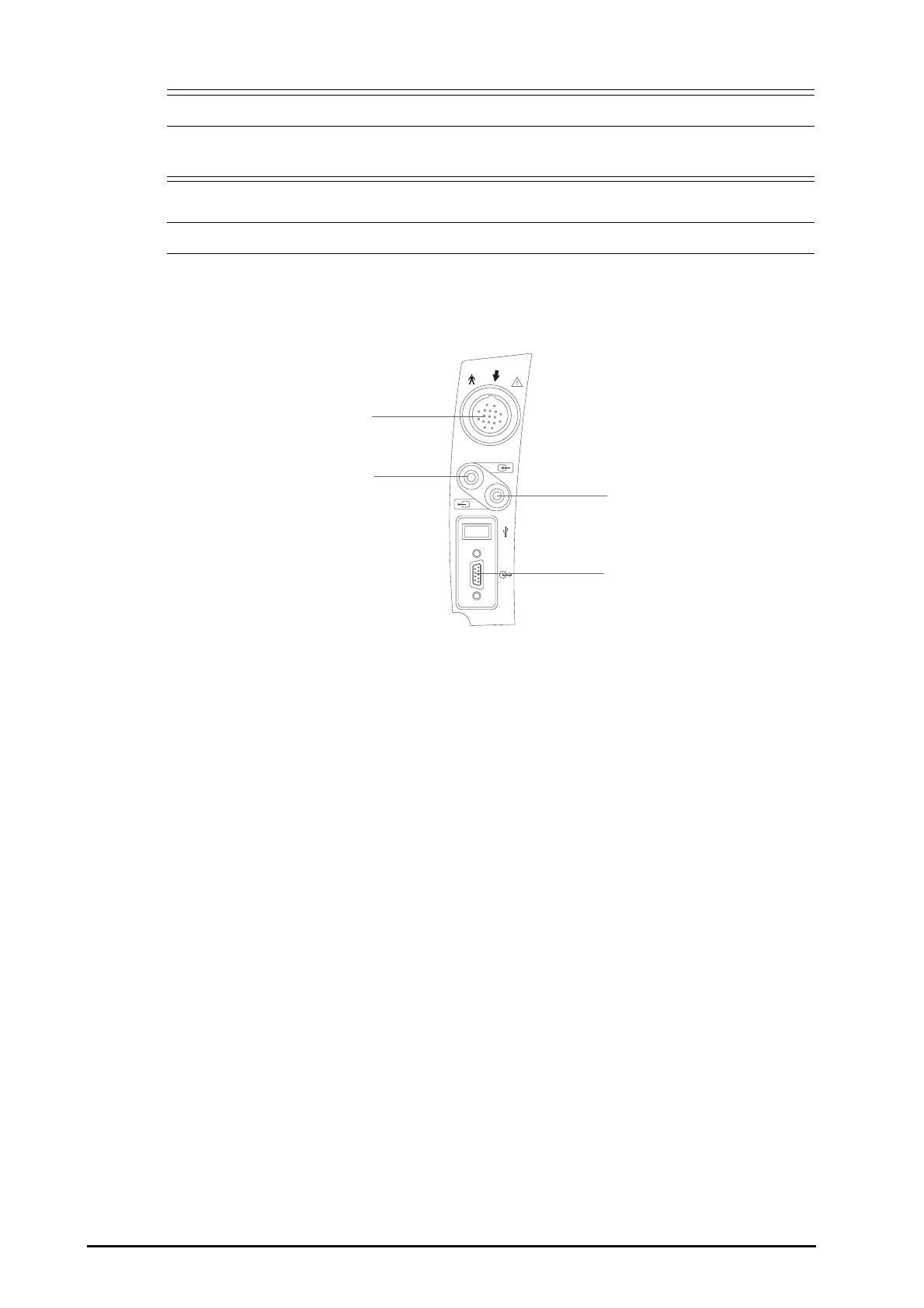

(1) Patient Optical Module (OM) (2) Analog Input
(3) Analog input (4) Serial Port
