BeneVision N Series Patient Monitor Operator’s Manual 8 - 1
8 Using with the TM80 Telemetry Monitor and BP10
NIBP Module
8.1 Pairing Introduction
You can connect a TM80 telemetry monitor (hereinafter called TM80) and a BP10 NIBP module (hereinafter
called BP10) with the monitor to measure ECG, Resp, SpO
2
, and NIBP of ambulating adult and pediatric patients.
The TM80 can be connected with the monitor either via Mindray Patient Area Network (MPAN) or Wi-Fi. The BP10
can be connected with the monitor via MPAN. The process of establishing connection between the TM80 or
BP10 and the monitor is called "pairing”. When the TM80 and BP10 are paired with the monitor, you can view the
measurement data from these devices on the monitor screen.
8.2 Pairing and Unpairing Symbols

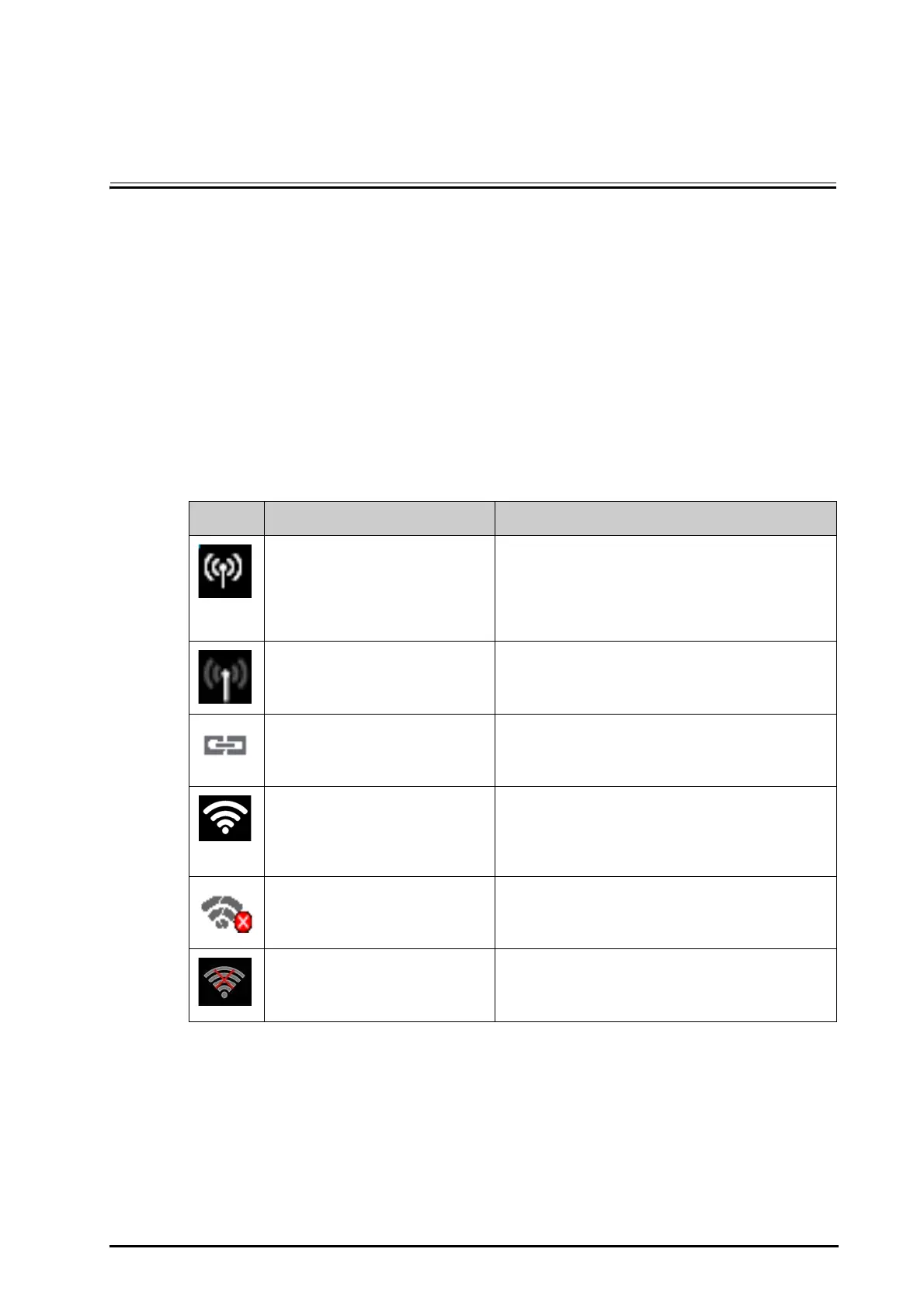

The following symbols may appear during and after pairing and unpairing.
8.3 Pairing a TM80 with the Monitor
A TM80 can be paired with the monitor via MPAN or via Wi-Fi. For pairing via MPAN, all data from the TM80 arrive
with a minimal delay on the monitor screen. For pairing via Wi-Fi, all data from the TM80 arrive with a delay of
several seconds on the monitor screen. You can chose the communication mode. For more information, see
8.3.1Pairing Procedure.
Symbol Location Description
■ Monitor’s Wireless Module Menu
■ ECG,SpO
2
, and NIBP parameter
areas on the monitor screen
■ Prompt message area of the TM80
or BP10
Indicates that a TM80 or BP10 is found via MPAN or is paired
with the monitor via MPAN.
Prompt message area of the TM80 or
BP10
Indicates that the TM80 or BP10 is not paired with the monitor
via MPAN. Or the TM80 or BP10 is not connected with the
monitor after paring.
Monitor’s Wireless Module Menu Indicates that a TM80 or BP10 is paired with the monitor.
■ Monitor’s Wireless Module Menu
■ ECG and SpO
2
parameter areas on
the monitor screen
■ Prompt message area of the TM80
Indicates that a TM80 is found via Wi-Fi or is paired with the
monitor via Wi-Fi.
ECG and SpO
2
parameter areas on the
monitor screen
Indicates that the Wi-Fi connection between a TM80 and the
monitor is interrupted.
Prompt message area of the TM80 Indicates that the TM80 is not connected to the Wi-Fi access
point.
