40.3 Installing or Replacing the Battery
No battery is installed when the monitor leaves the factory.
For N22/N19, the battery must only be installed or replaced by service personnel trained and authorized by
Mindray. To install or replace the battery, contact your service personnel.
For N12/N12C, to install the battery, follow this procedure:
1. Turn off the monitor. Disconnect the power cable and other cables.
2. Place the monitor on the worktable with monitor face down.
3. Open the battery door as indicated by Figure 1 below.
4. Turn the latch aside.
5. Insert the battery into the battery compartment with the battery terminal inwards. Turn the latch back to
the middle as indicated by Figure 2 below. To replace the battery, remove the old battery and insert a new
one.
6. Close the battery door.
For N17/N15, to install the battery, follow this procedure:
1. Turn off the monitor. Disconnect the power cable and other cables.
2. Place the monitor on the worktable with monitor face down.
3. Pull up the battery door to open the battery compartment as indicated by Figure 1 below.
4. Insert the battery into the battery compartment. Push the battery downwards till the battery terminal is
plugged into the battery connector as indicated by Figure 2 below. To replace the battery, remove the old
battery and insert a new one.
5. Close the battery door.

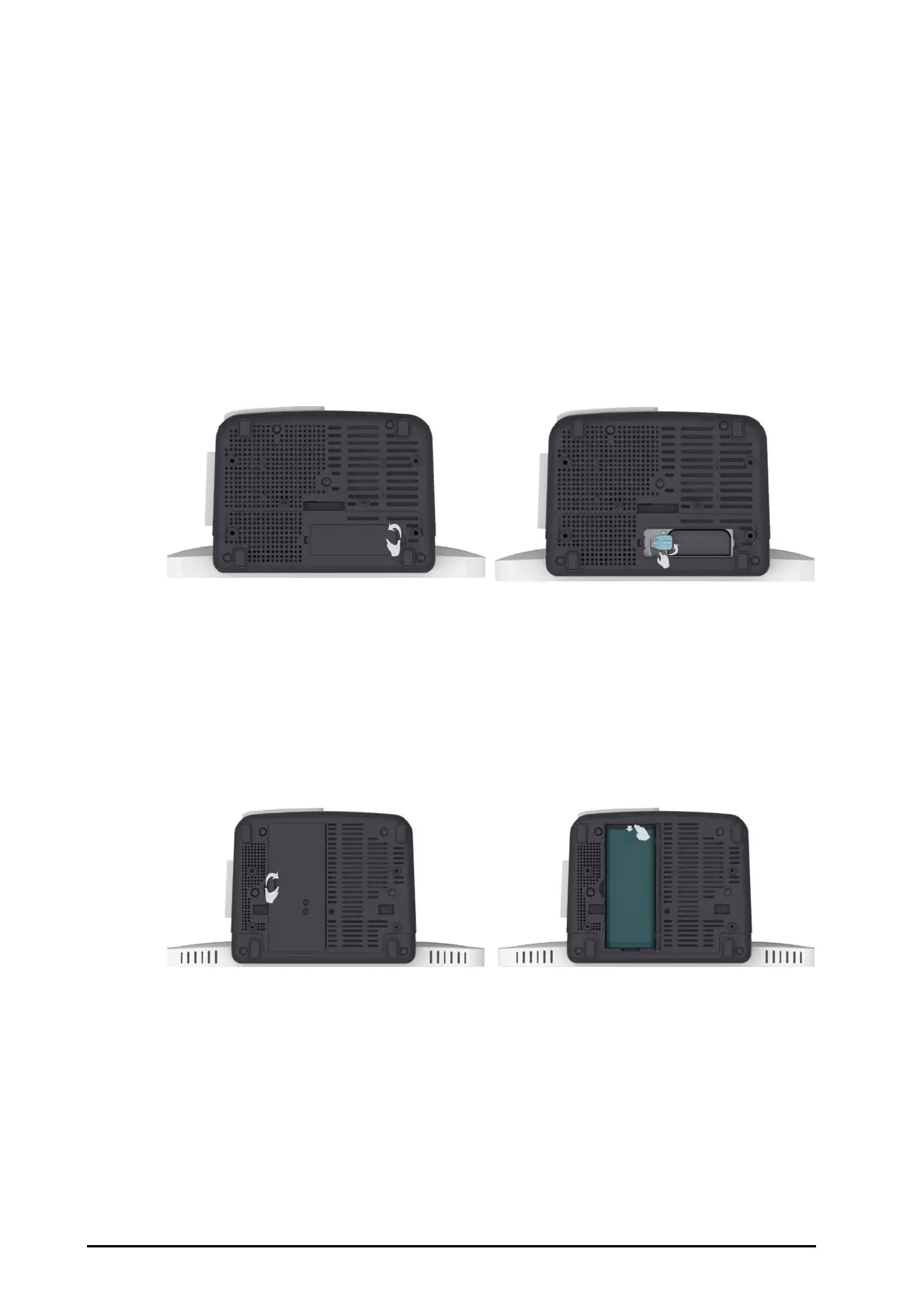

Figure 1
Figure 2
Figure 1
Figure 2
