BeneVision N Series Patient Monitor Operator’s Manual 3 - 3

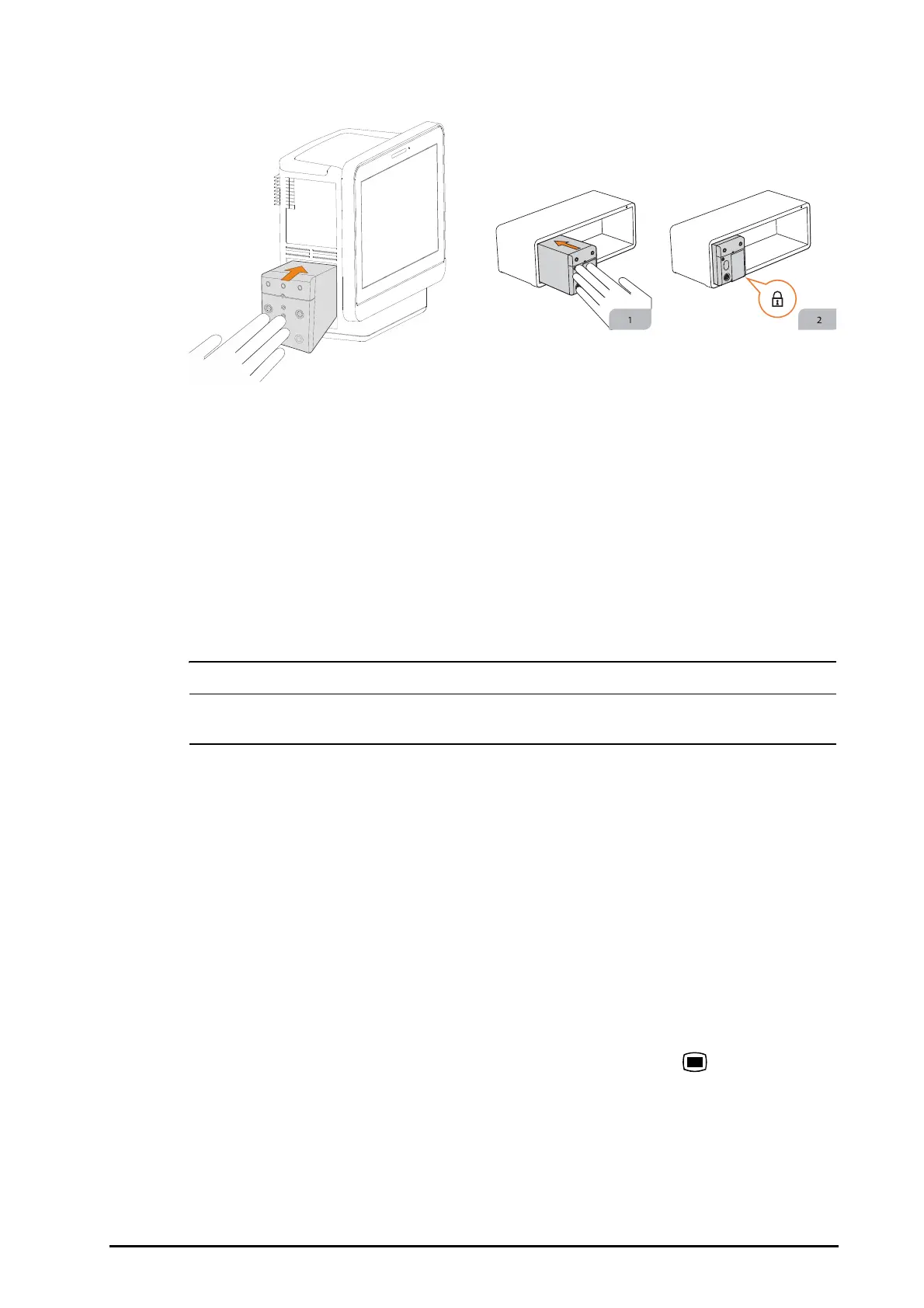

3.3.4 Connecting Modules to the Module Rack or SMR
To connect a module to the SMR or module rack (for BeneVision N17/N15/N12/N12C), follow this procedure:
1. With the module properly oriented, align the module insertion guide slot with the SMR insertion guide.
Push the module into the SMR until you hear a click.
2. Push the lock at the bottom of the module inwards to lock the module.
3.3.5 Removing Modules from the Module Rack or SMR
To remove a module from the SMR or module rack (for BeneVision N17/N15/N12/N12C), follow this procedure:
1. Pull outwards the lock at the bottom of the module to release the module.
2. Lift the latches at the bottom of the module and slide the module out of the SMR. Hold on the module to
make sure it does not drop when it comes out.
• When removing modules, be careful not to drop them. Always support with one hand while pulling
out with the other.
3.4 Turning on the Monitor
Before turn on the monitor, perform the following inspections:
1. Check the monitor, SMR and modules for any mechanical damage. Make sure that all external cables, plug-
ins and accessories are properly connected.
2. Connect the power cord to the AC power source.
To turn on the monitor, press the power switch. For N22/N19, if you are using the secondary display, turn it on
too.
3.5 Operation and Navigation
Everything you need to operate the monitor is on its screen. Almost every element on the screen is interactive.
Screen elements include parameter values, waveforms, quick keys, information fields, alarms fields and menus.
Often you can access the same element in different ways. For example, you can access a parameter menu by
selecting corresponding numeric area or waveform area, through the Menu hard key on the parameter
module, or through the Parameter Setup quick key.
3.5.1 Using the Touchscreen
You can use the touchscreen to select a screen element by pressing directly on the monitor’s screen.
