BeneVision N Series Patient Monitor Operator’s Manual 25 - 9
■ Unsteady FiO
2
values
■ Other circumstance causing wrong CO
2
, O
2
, and Flow measurements
Measurement cannot be taken in the following situations due to inadequate time for accurate sampling:
■ High frequency ventilation (HFV) or bi-level positive airway pressure (BiPAP)
■ Respiration rate is above 35 rpm.
25.9.4 Equipment to Patient Connection When RM Module in Use with CO
2
or AG
Module

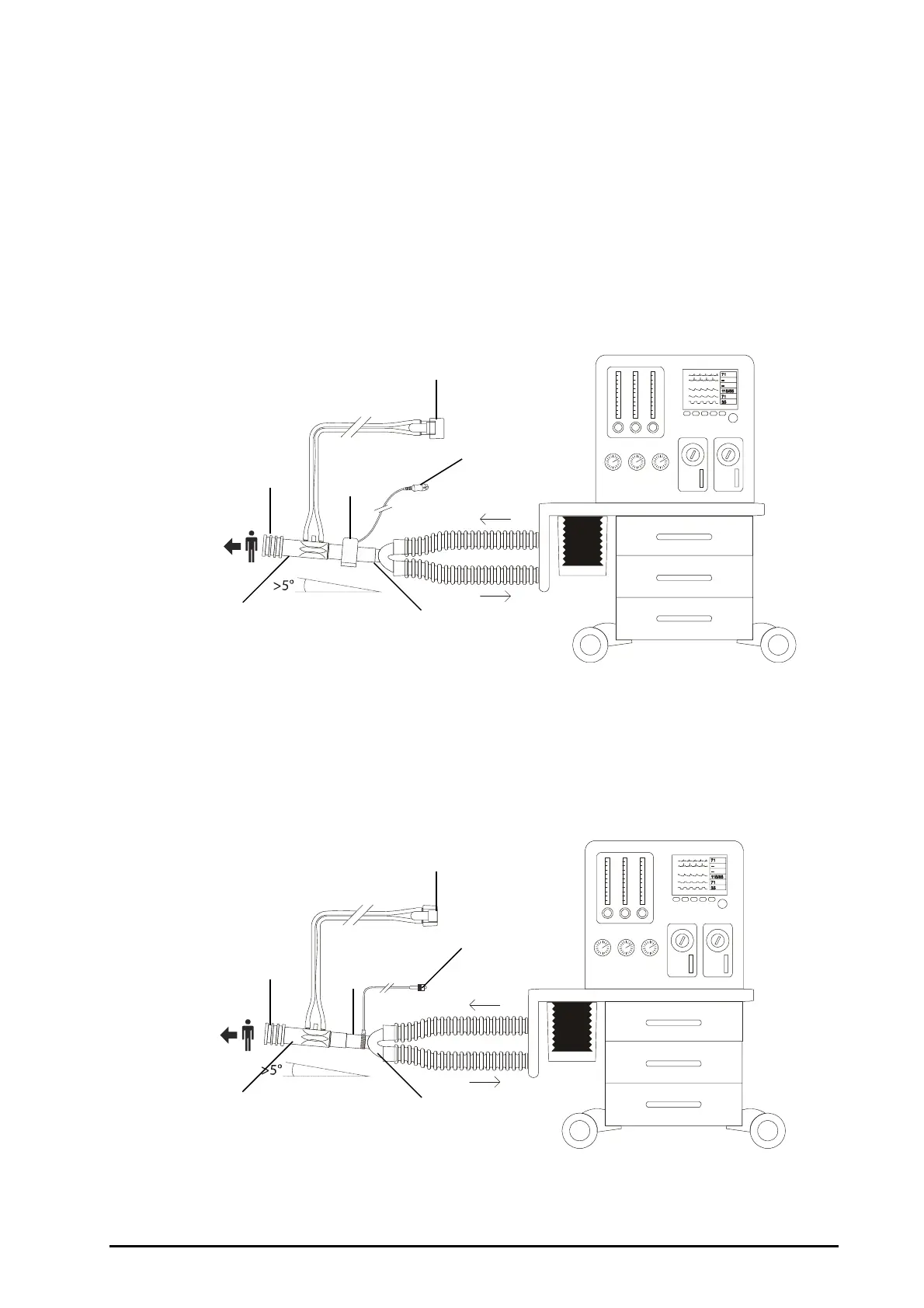

When the RM module is used together with the mainstream CO
2
module, equipment to patient connection is as
follows:
When the RM module is used together with the sidestream CO
2
module or AG module, equipment to patient
connection is as follows:
(1) Connects to the patient (2) RM flow sensor (3) Connects to the RM module
(4) Airway adapter (5) Connects to the mainstream CO
2
module
(6) Y-piece (connects to the ventilator or anesthesia machine)
(1) Connects to the patient (2) RM flow sensor (3) Connects to the RM module
(4) Airway adapter (5) Connects to the sidestream CO
2
module or AG module
(1)
(2)
(3)
(5)
(4)
(6)
(1)
(2)
(3)
(5)
(4)
(6)
