4.6 The SpO
2
Screen
For neonatal patients, if you are only concerned with the patient’s SpO
2
and pulse rate, you can use the SpO2
screen.
The SpO
2
screen displays SpO
2
related data. It also displays realtime Temp and NIBP measurements.
NOTE
• The SpO
2
screen is intended for neonatal patient only.
4.6.1 Entering the SpO
2
Screen
To enter the SpO
2
screen, choose any of the following ways:
■ Swipe left or right on the touchscreen with two fingers to switch to the SpO
2
screen.
■ Select the Screen Setup quick key → select the Choose Screen tab → select SpO2 Screen.
■ Select the Main Menu quick key → from the Display column select Choose Screen → select SpO
2
Screen.
4.6.2 The Display of SpO
2
Screen

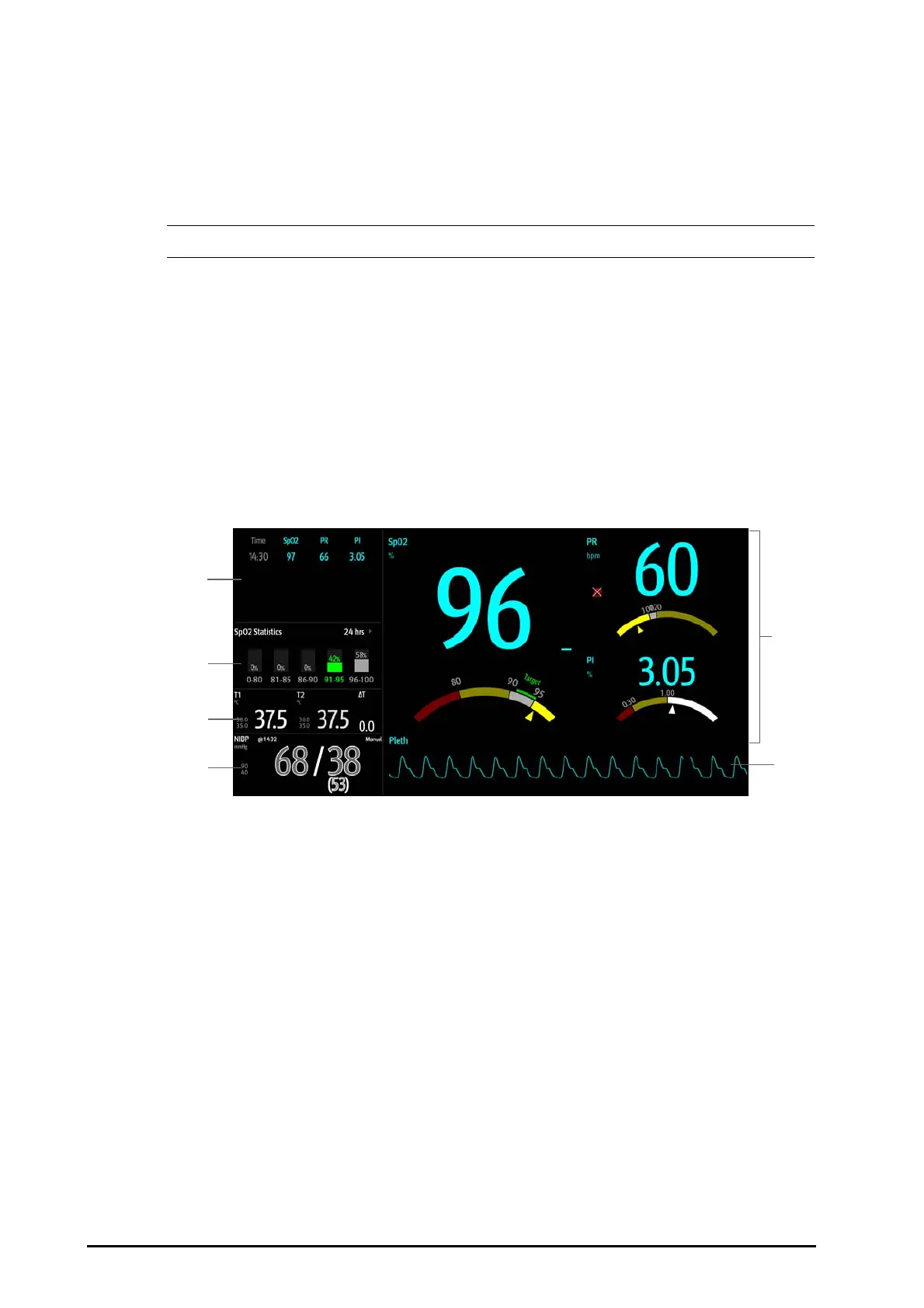

The following figure shows the SpO
2
screen. Your display may be configured to look slightly different.
4.6.3 Operating the SpO
2
Screen
You can access parameter setup and trends review from the SpO
2
screen. To do so, follow this procedure:
■ Select the trend of SpO
2
, PR, or PI to enter the Tabular Trends review page.
■ Select the SpO
2
statistics area to enter the SpO2 Statistics Setup menu. Set the range of each SpO
2
section and the target section.
■ Select the value of SpO
2
, PR, or PI, the dashboard, or Pleth waveform to enter the SpO2 menu.
■ Select the Temp area to enter the Tem p menu.
1
2
3
4
5
6
(1)
Tabular trend: displays trends of SpO
2
, PR, and PI.
(2) SpO
2
statistics area: displays the statistics data of each SpO
2
section.
(3)
Temp area: displays Temp measurements and alarm limits.
(4)
NIBP area: displays NIBP measurements and alarm limits.
(5)
SpO
2
area: displays measurements and alarm limits of PR, and PI. The dashboards show information of alarm
limits. The
△ pointers indicate the current measurement values.
(6)
The Pleth waveform
■ Select the NIBP area to enter the NIBP menu.
