34.8.2 The Display of InfusionView

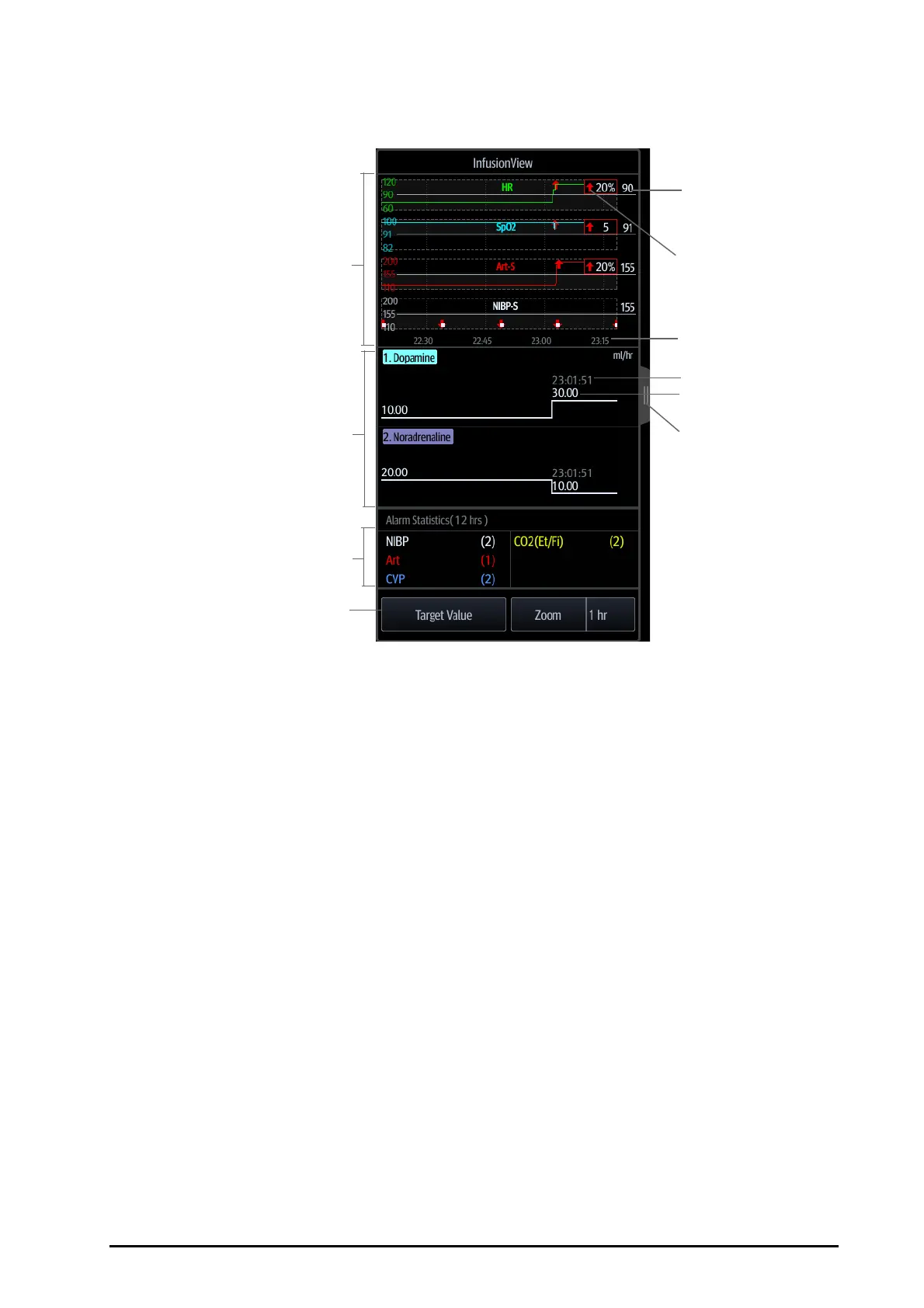

The following figure shows the InfusionView. Your display may be configured to look slightly different.
34.8.3 Selecting Trend Parameters and Target Values
To select displayed parameter and target values, follow this procedure:
1. Enter the InfusionView.
2. Select the Target Value.
3. Set the following parameters as required:
â—† Select trend parameters: only selected parameters will be displayed.
â—† Set target values: the target values are displayed as white lines.
(1) Parameter minitrends area: displays the minitrends of vital sign parameters.
(2) Drug area: displays the name and flow rate of vital sign related drugs, such as vasoactive drugs, sedative drugs,
and antiarrhythmic drugs, as well as the time when the flow rate changes. Dragging this area up and down can
view trends of more drugs.
(3) Alarm statistic area: displays the statistics of physiological alarms over the extended minitrend length.
(4) Button area: sets parameter target values and minitrend length.
(5) Target value: expected vital sign value.
(6) Vital sign fluctuation prompt: a red arrow is marked if the parameter value reaches prompt threshold for the set
duration. The current mark is enclosed by a red box, If target value settings are changed, the marks update
accordingly. The color of history marks turns dark red.
(7) Minitrend time: the length of minitrends displayed on the current screen.
(8) Time when the drug flow rate is changed.
(9) Drug flow rate
(10) Select this symbol to view extended length of vital signs minitrends.
