03.04 Operator Components/Sequence of Operations
2.1 O
p
erator
p
anels
2
Ó Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition 2-29
2.1 Operator panels
2.1.1 OP 010 operator panels

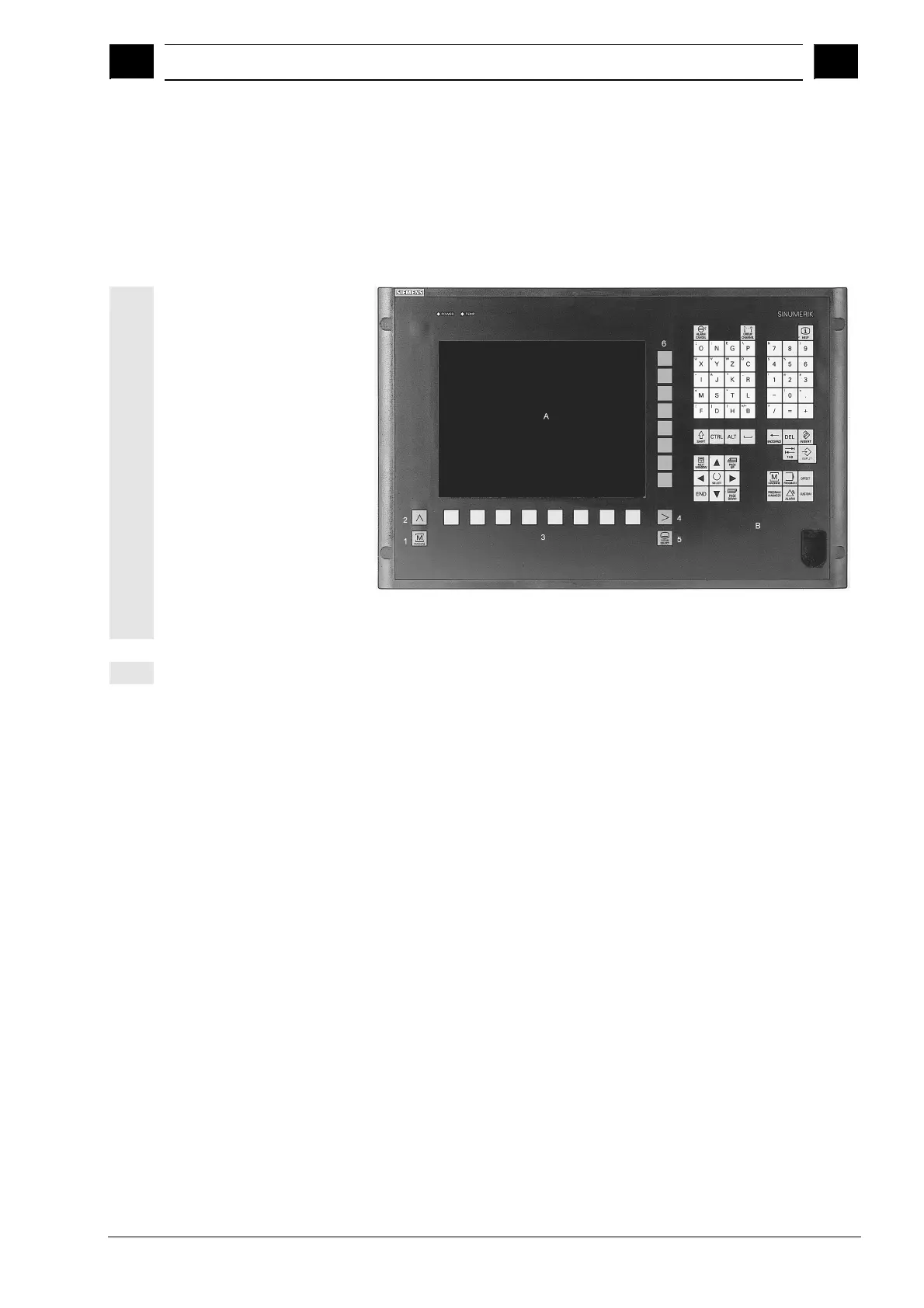

A Display
B Alphanumeric keypad
Correction/cursor keys
1 Machine area key
2 Recall (return)
3 Softkey bar (horizontal)
4 ETC key
(menu extension)
5 Area switchover key
6 Softkey bar (vertical)
All keys are described in the following sections.
