8
"Diagnosis" Operating Area 03.04
8.3 Service dis
la
8
Ó Siemens AG, 2004. All rights reserved
8-412 SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition
8.3.4 Service Safety Integrated
Function
Three information blocks on Safety Integrated data are offered in HMI
Advanced for the selected axis by pressing the softkey "Service SI":
· Status SI (selected by default)
· SGE/SGA
· SPL
References: FBSI/, Description of Functions Safety Integrated.

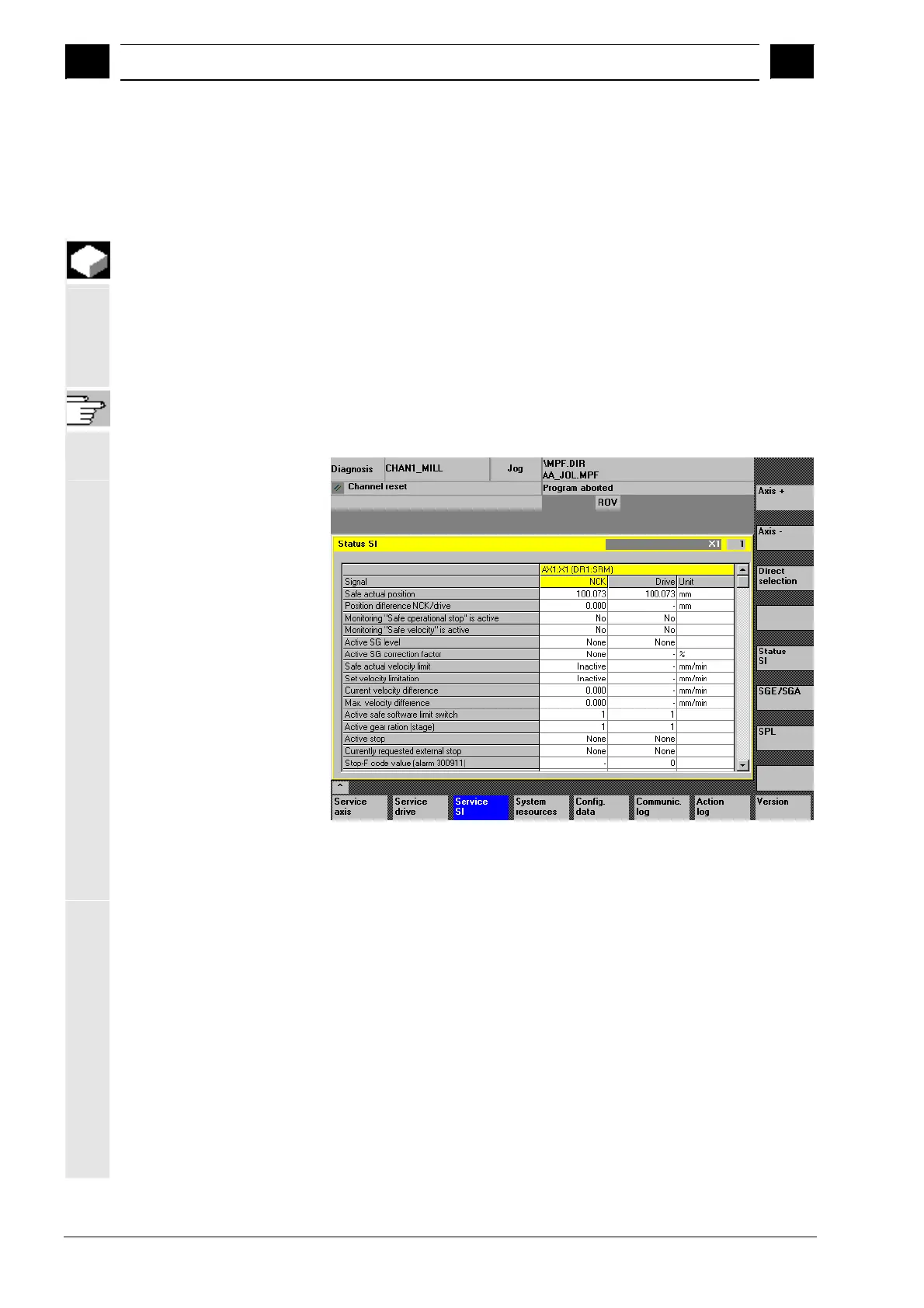

Status SI
The vertical softkeys axis +, axis - or direct selection are used to set
the desired axis. The active axis is displayed in the top right half of the
table.
Available signals/values
Safe actual position
Positional deviation NCK/drive
"Safe operational stop" monitoring active
"Safe velocity" monitoring active
Active SG step
Active SG correction factor
Safe actual velocity limit
Setpoint velocity limit
Current velocity difference
Maximum velocity difference
Active safe software limit switch
Active gear ratio (step)
