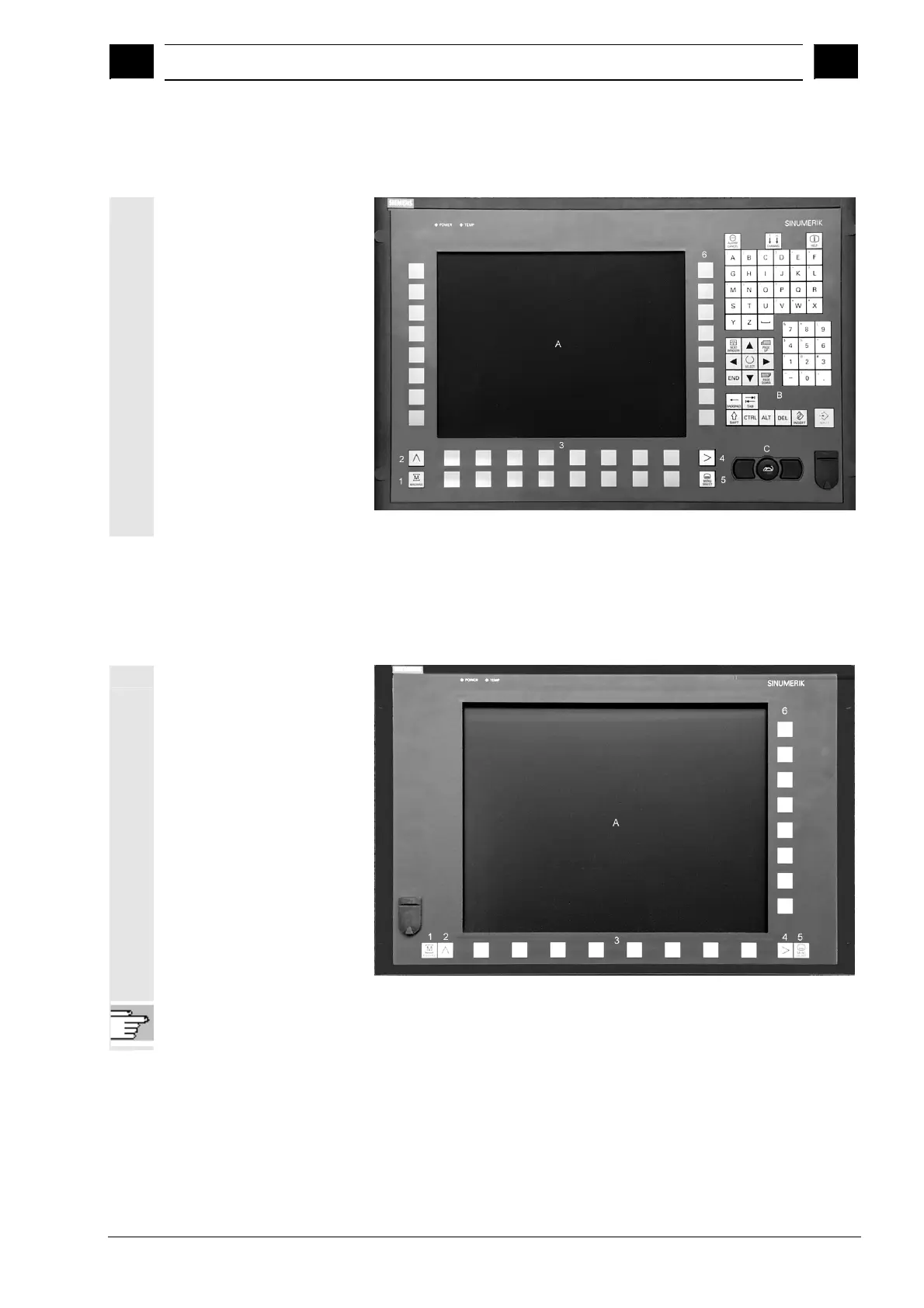

2.1.4 OP 012 operator panel
A Display
B Alphanumeric keypad
Correction/cursor keys
C Mouse and mouse keys
1 Machine area key
2 Recall (return)
3 Softkey bar (horizontal)
4 ETC key
(menu extension)
5 Area switchover key
6 Softkey bar (vertical)
2.1.5 OP 015 operator panel
A Display
1 Machine area key
2 Recall (return)
3 Softkey bar (horizontal)
4 ETC key
(menu extension)
5 Area switchover key
6 Softkey bar (vertical)
For further information about operator components, please see:
/BH/ Operator Components Manual.
