7.5 Operation

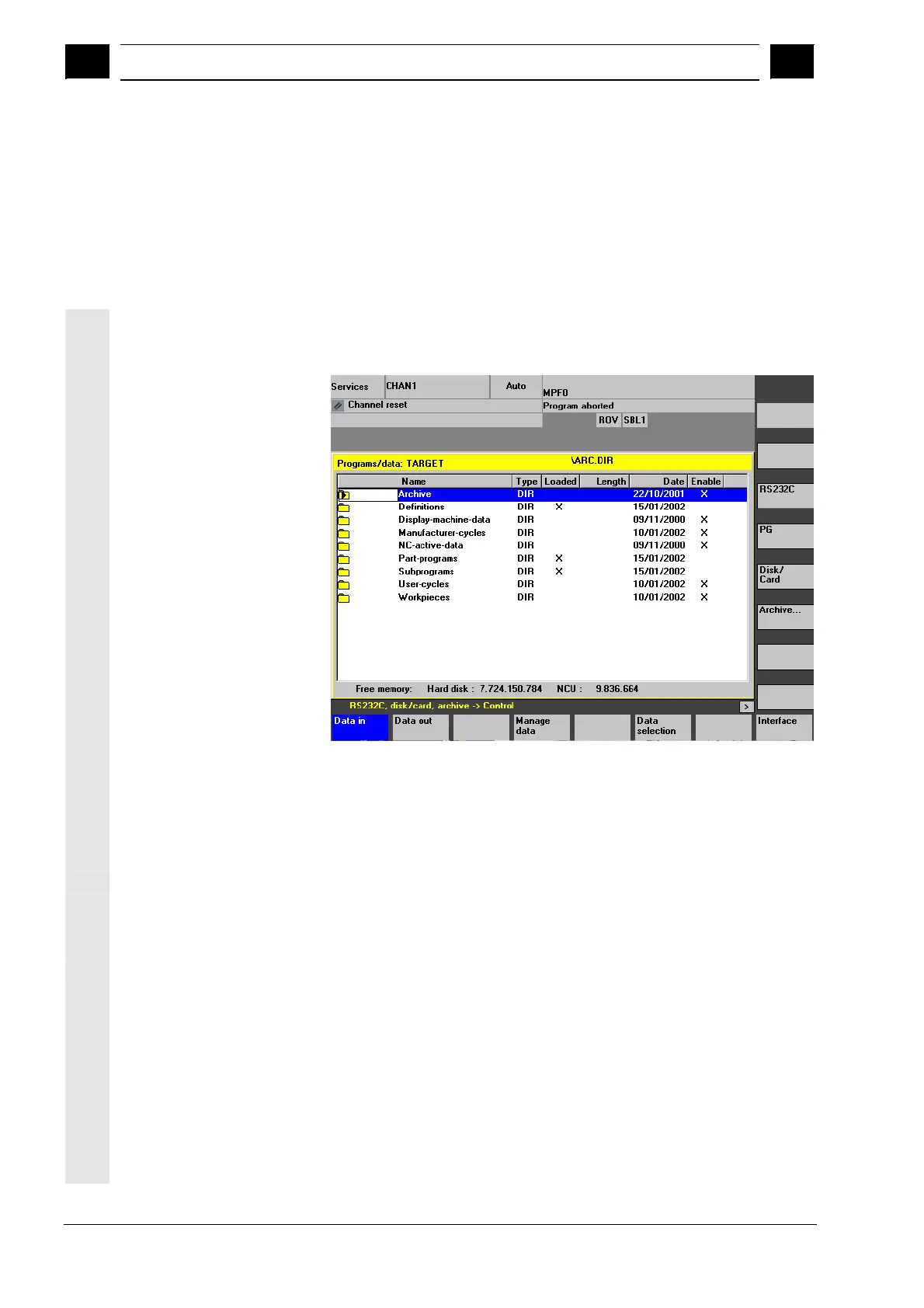

7.5.1 Services main screen
All programs/data stored on the hard disk or in the NC memory are
listed in the "Services" basic display.
Explanation of
main screen
Display of the current file tree
The following file attributes can be displayed for each file (depending
on the default setting):
Name Directory name/file name
Files with a maximum name length of 25 characters can be managed
on the HMI.
Type Specifies the file type which matches the file identifier.
Loaded To execute a program in the NC (through NC Start), it must be loaded
into the NC main memory. To ensure that the memory does not
become overloaded, however, related programs and data can be
loaded explicitly (from the hard disk to the NC memory) and unloaded
again (from NC memory back to hard disk).
The current status of a file is indicated by an "X" in a column under
"Loaded": File loaded, file can be selected and executed with an NC
Start.
