Operator Components/Sequence of Operations 03.04
2.1 O
p
erator
p
anels
2
Ó Siemens AG, 2004. All rights reserved
2-30 SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition

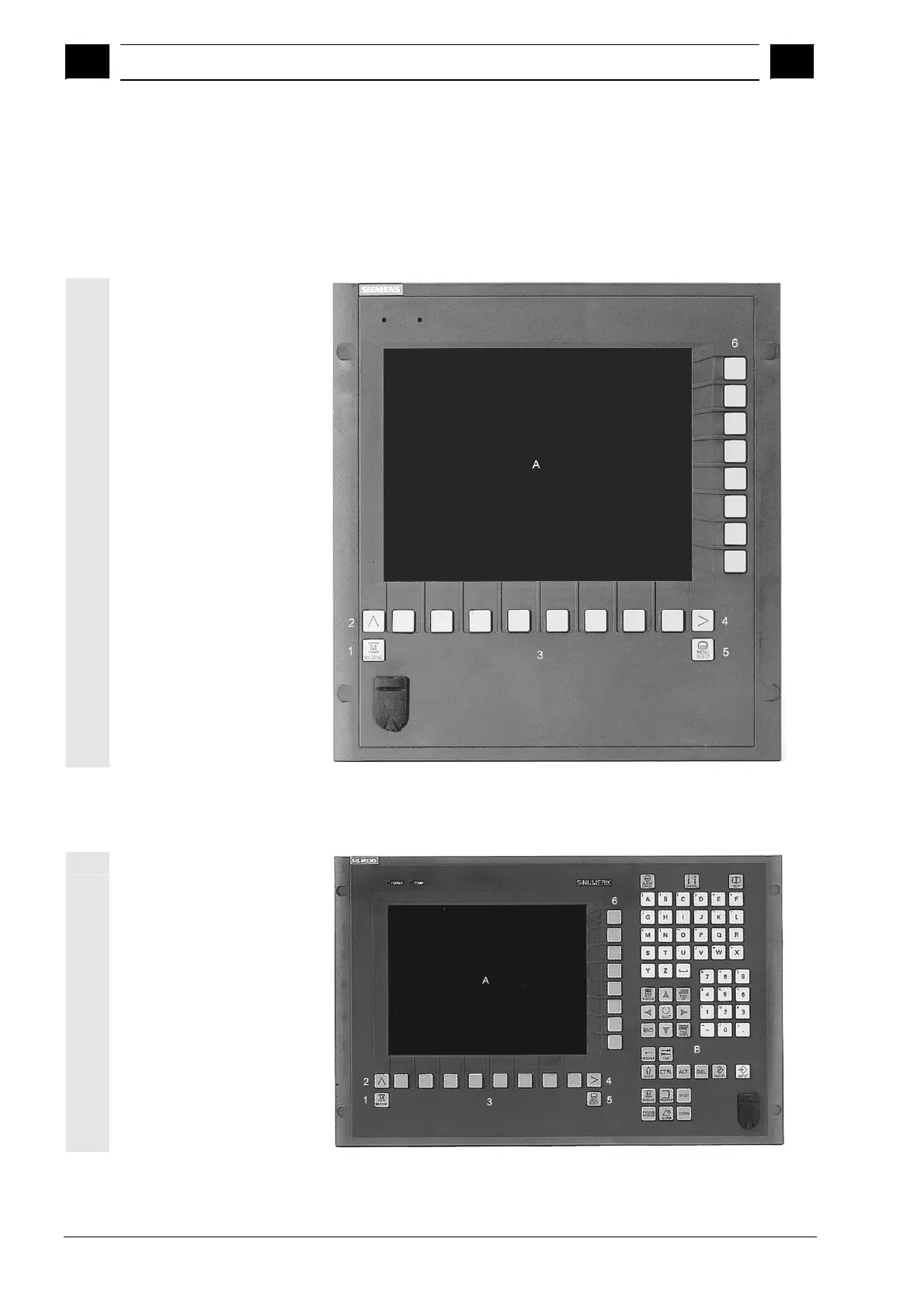

2.1.2 OP 010S operator panel
A Display
1 Machine area key
2 Recall (return)
3 Softkey bar (horizontal)
4 ETC key
(menu extension)
5 Area switchover key
6 Softkey bar (vertical)
2.1.3 OP 010C operator panel
A Display
B Alphanumeric keypad
Correction/cursor keys
1 Machine area key
2 Recall (return)
3 Softkey bar (horizontal)
4 ETC key
(menu extension)
5 Area switchover key
6 Softkey bar (vertical)
