2.5 Screen layout
In HMI Advanced SW 6.2 or later the states of the control are clearly
indicated by additional indicators and icons.
2.5.1 Overview
Machine
Channel interrupted
Stop: No NC Ready
Jog
MCS Position Repos offset Auxiliary Functions
M0
M0
M0
H0.000000
H0.000000
H0.000000
M0
M0
+ X 900.000 mm 0.000
- Y -156.000 mm 0.000
+ Z 230.000 mm 0.000
Feedrate mm/min
Act. 3000.000 0.0 %
Set. 3000.000
Auto
MDI
JOG
REPOS
REF
Machine
Parameters
Program Services Diagnosis
Tool
G0 G91
.
1 4 6
8
9
2
i
5
3
7
16
11
12
13
11
11
11
11
17
preselected tool:
Start-up
>
10
>
CHAN1 \MPF.DIR
SHAFT1.MPFP
Global machine status display
Horizontal softkeys
Vertical
softkeys
18
19
Program stopped
DRY ROV

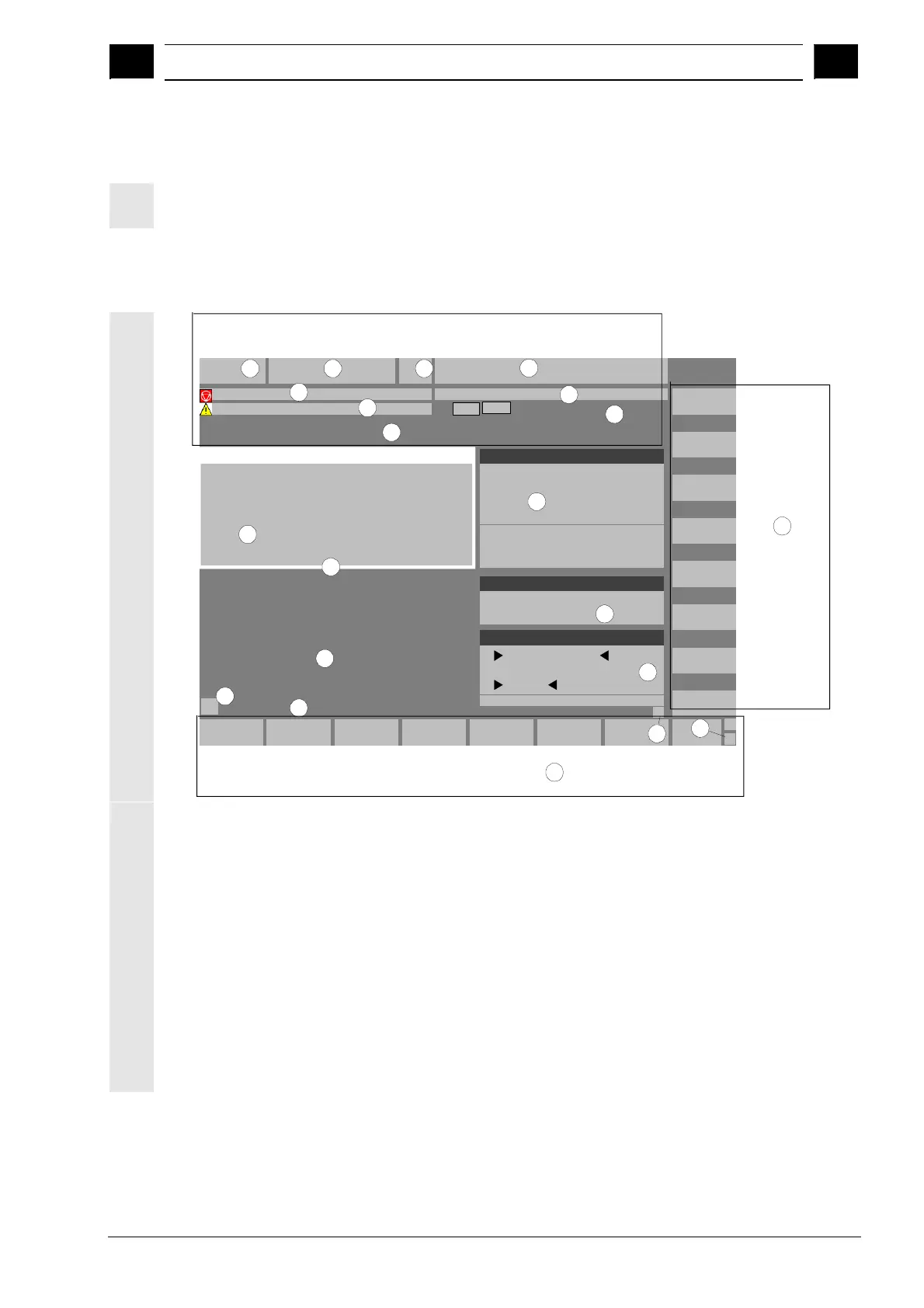

1 Operating areas
2 Channel status
3 Channel operational messages
4 Channel name
5 Alarm and message line
6 Operating mode, submode, (increment if relevant)
7 Program name of the selected program
8 Program status
9 Program control
10 Additional information (help)
i You can display information by pressing the i key
^ Recall: Return to higher-level menu
> ETC.: Expansion of the softkey bar in the same menu.
