6
03.04 "Program" Operating Area
6.10 Mana
e
ro
rams
6
Ó Siemens AG, 2004. All rights reserved
SINUMERIK 840D/840Di/810D Operator's Guide HMI Advanced (BAD) – 03.04 Edition 6-339

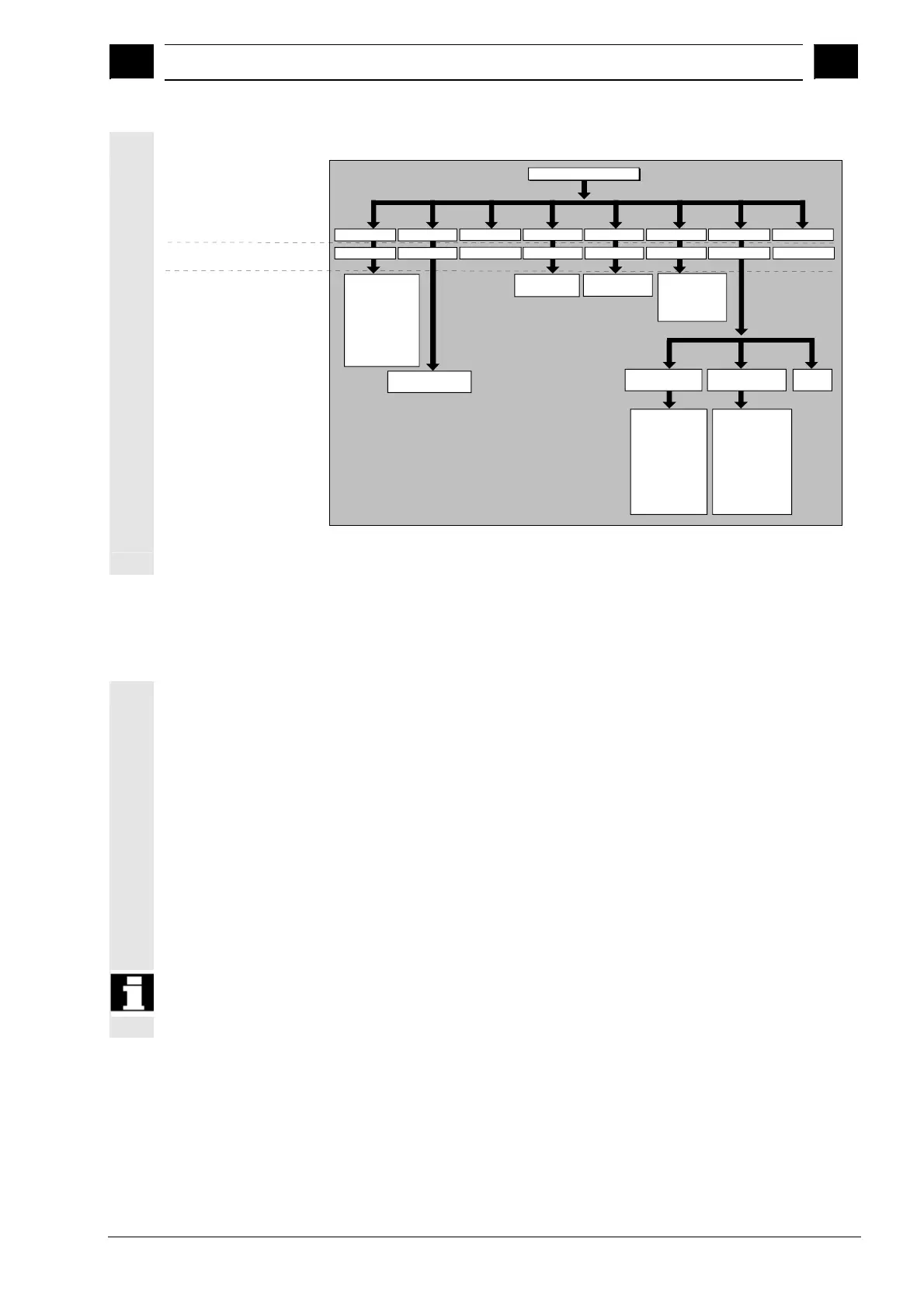

The following diagram shows an example of directory contents:
Internal directory
name
Directory name on
interface
Internal file name
...
Program memory
_N_SMAC_DEF
_N_MMAC_DEF
_N_UMAC_DEF
_N_SGUD_DEF
_N_MGUD_DEF
_N_UGUD_DEF
_N_GUD4_DEF
...
_N_GUD9_DEF
_N_POCKET1_SPF
_N_..._SPF
_N_L199_SPF
_N_..._SPF
_N_GLOB_SPF
_N_..._SPF
_N_MPF1_MPF
_N_MOV_MPF
_N_..._MPF
_N_...
_N_SHAFT_WPD
_N_MPF123_WPD
_N_SHAFT_MPF
_N_PART2_MPF
_N_PART1_SPF
_N_PART2_SPF
_N_SHAFT_INI
_N_SHAFT_SEA
_N_PART2_INI
_N_PART2_UFR
_N_PART2_COM
_N_SHAFT
_N_MPF123_MPF
_N_L1_SPF
_N_..._...
Name in bold script: contained as standard
Names not in bold script: assigned by the user
_N_CUS_DIR_N_CMA_DIR_N_CST_DIR_N_DEF_DIR _N_SPF_DIR _N_MPF_DIR _N_WKS_DIR _N_COM_DIR
User cyclesManufact. cyclesStandard cyclesD e f in it io n s Subprograms Parts programs W o r k p ie c e s
Comments
6.10.2 NC data types and directories
File types
File types can be identified by the file name extension (e.g. .MPF).
name.MPF Main program
name.SPF Subroutine
name.TEA Machine data
name.SEA Setting data
name.TOA Tool offsets
name.UFR Work offsets/frame
name.INI Initialization file
name.COM Comment
name.DEF Definition of global user data and
macros
Please note that the directories for
comments \COM.DIR and definitions \DEF.DIR can only be
accessed in the Services operating area via "Manage data".
