Version 7.0 583 Mediant 3000
User's Manual 30. Configuring General SBC Settings
30 Configuring General SBC Settings
The General Settings page allows you to configure general SBC parameters. For a
description of these parameters, see ''SBC Parameters'' on page 1030.
 To configure general parameters:
1. Open the General Settings page (Configuration tab > VoIP menu > SBC > General
Settings).

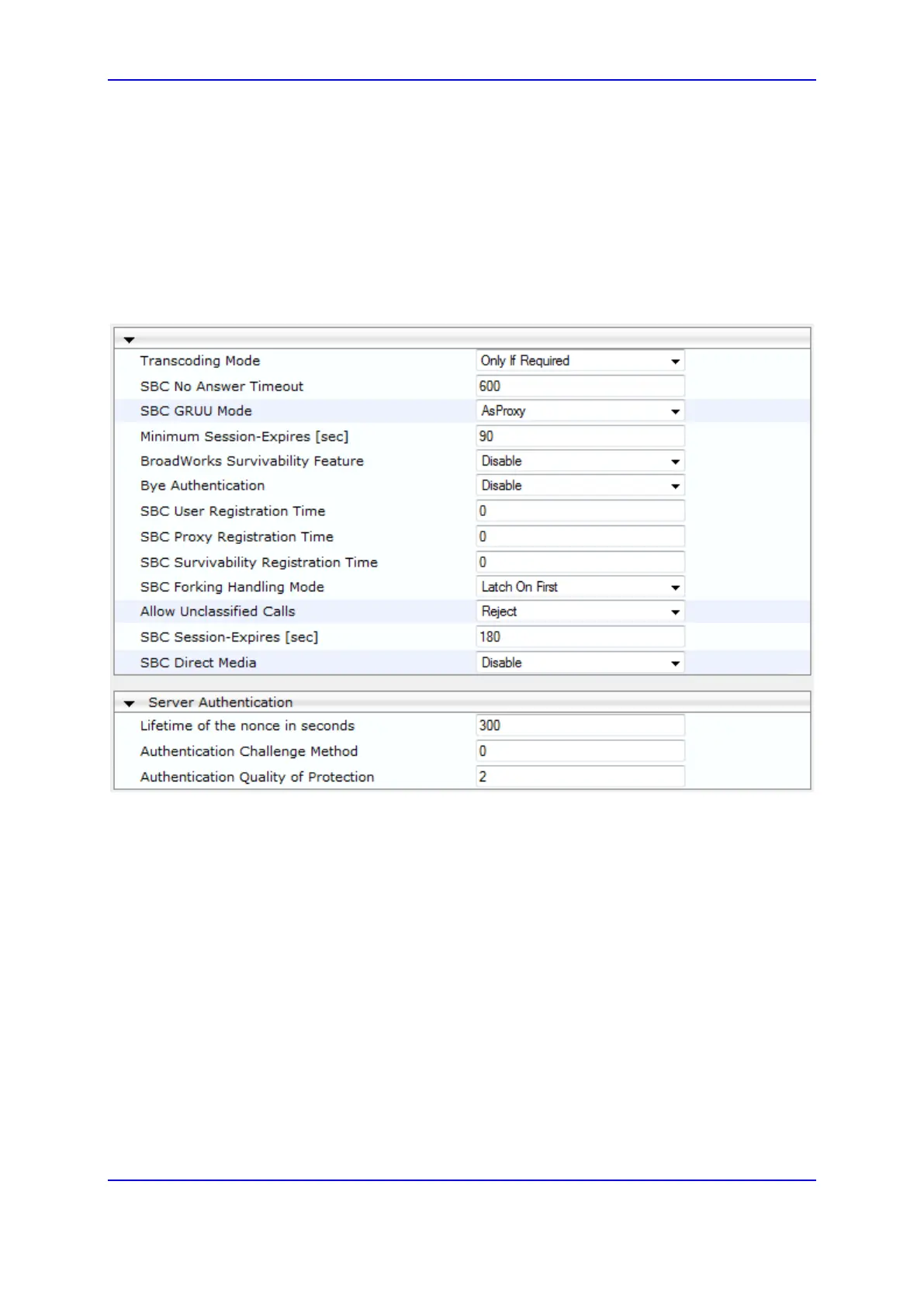

Figure 30-1: General Settings Page
2. Configure the parameters as required.
3. Click Submit.
4. To save the changes to flash memory, see ''Saving Configuration'' on page 672.
30.1 Interworking Dialog Information in SIP NOTIFY
Messages
You can enable the device to interwork dialog information (XML body) received in SIP
NOTIFY messages from a remote (WAN) application server. The NOTIFY message is sent
by application servers to notify a SIP client, subscribed to a service and located behind the
device (LAN), of the status of another SIP client in the LAN. For example, user B can
subscribe to an application server for call pick-up service, whereby if user A's phone rings,
the application server notifies user B. User B can then press a pre-configured key
sequence to answer the call.
The NOTIFY message contains the XML body with call identifiers (call-id and tags).
However, as the application server is located in the external network WAN and the SIP
clients behind the device, the call dialog information sent by the application server reflects
To Next Page
