When the device is configured for HA mode, the Home page displays the chassis with two
VoIP blades (TP-6310 or TP-8410) and two SAT (SA/M3K Alarms, Status and
Synchronization) blades, as shown in the figure below:

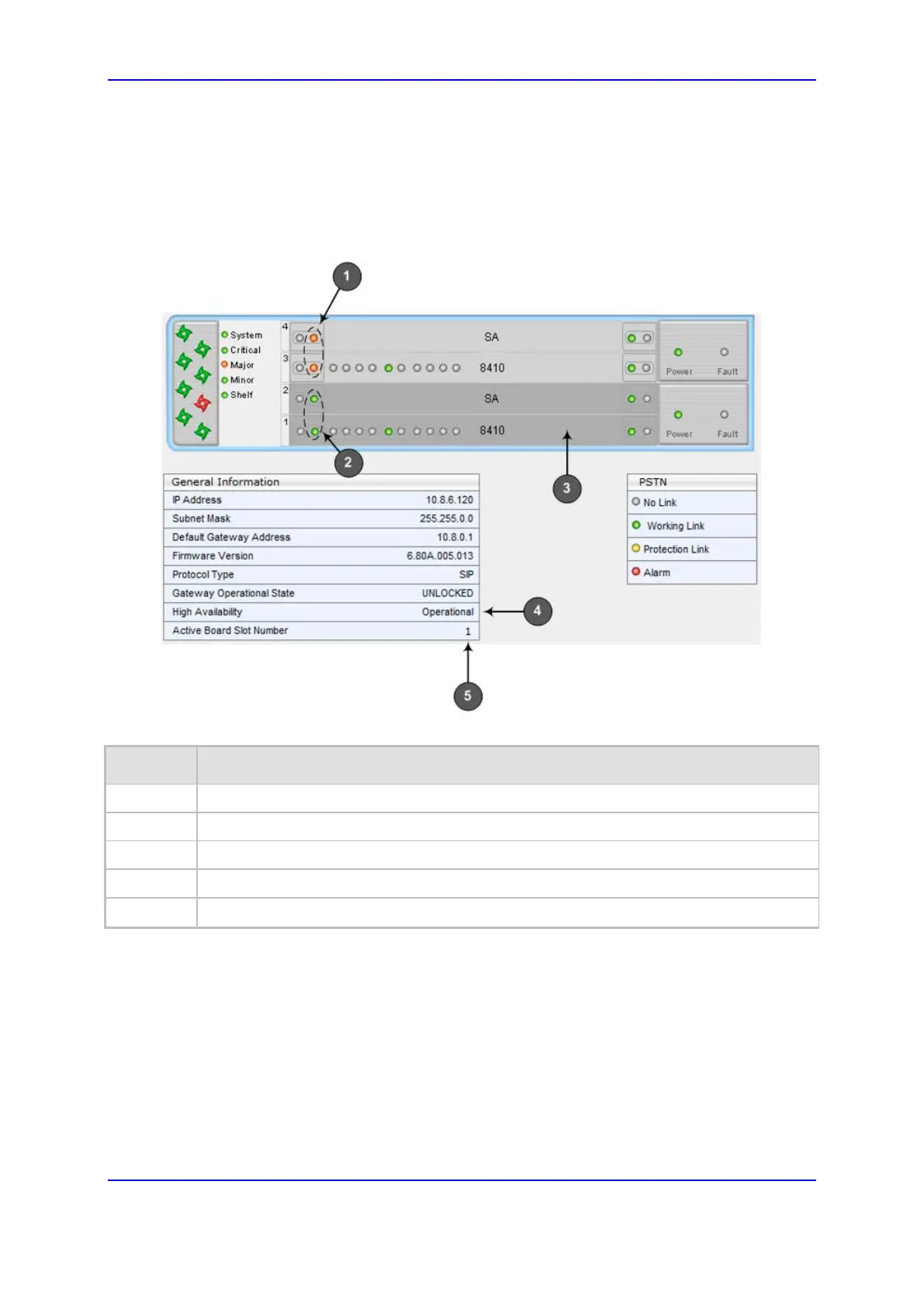

Figure 40-1: Home Page for Mediant 3000 HA Device
Table 40-1: Indications of HA on Home Page
Item # Description
1
ACT icons displayed in orange, indicating Redundant blades
2
ACT icons displayed in green, indicating Active blades
3
Active blades displayed with dark-colored background
4
Device is in HA mode
5
Chassis slot number of Active blade
The status of the HA mode is indicated in the General Information pane's 'High Availability'
field:
"Operational": device is in HA mode
Synchronizing: device is synchronizing (temporary state, after which it changes to
Operational if successful)
"Stand Alone": device is in Simplex mode
"Not Available": HA is not configured
"Not Operational": HA is not supported
"Not Operational: Load from Boot": device is loading from BootP
