User's Manual 748 Document #: LTRT-89730
Mediant 3000
To view the status of the D-channels and NFAS groups:
Open the NFAS Group & D-Channel Status page (Status & Diagnostics tab > VoIP
Status menu > NFAS Group & D-Channel Status).

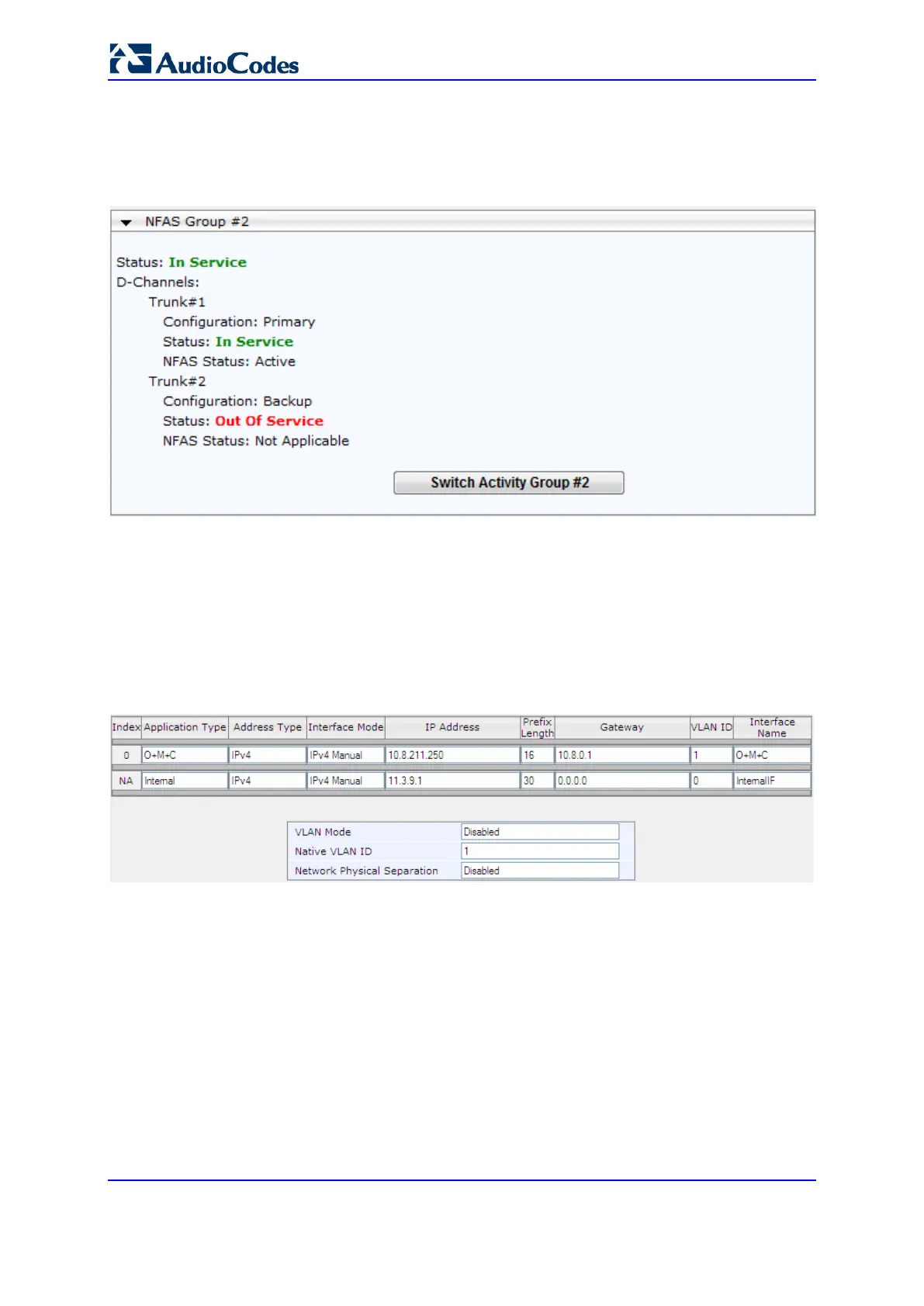

Figure 51-3: NFAS Group & D-Channel Status Page
51.3 Viewing Active IP Interfaces
The IP Interface Status page displays the device's active IP interfaces that are listed in the
Interface table (see ''Configuring IP Network Interfaces'' on page 145).
To view active IP network interfaces:
Open the IP Interface Status page (Status & Diagnostics tab > VoIP Status menu >
IP Interface Status).
51.4 Viewing Static Routes Status
The IP Routing Status table displays the status of the static routes. These are routes
configured in the Static Route table (see ''Configuring Static IP Routing'' on page 154) and
routes through the Default Gateway.
The status of the static routes can be one of the following:
"Active": Static route is used by the device.
"Inactive": Static route is not used. When the destination IP address is not on the
same segment with the next hop, or the interface does not exist, the route state
changes to "Inactive".
