Version 7.0 749 Mediant 3000
User's Manual 51. VoIP Status
To view the status of static IP routing:
Open the IP Routing Status table (Status & Diagnostics tab > VoIP Status menu
>Static Route Status).

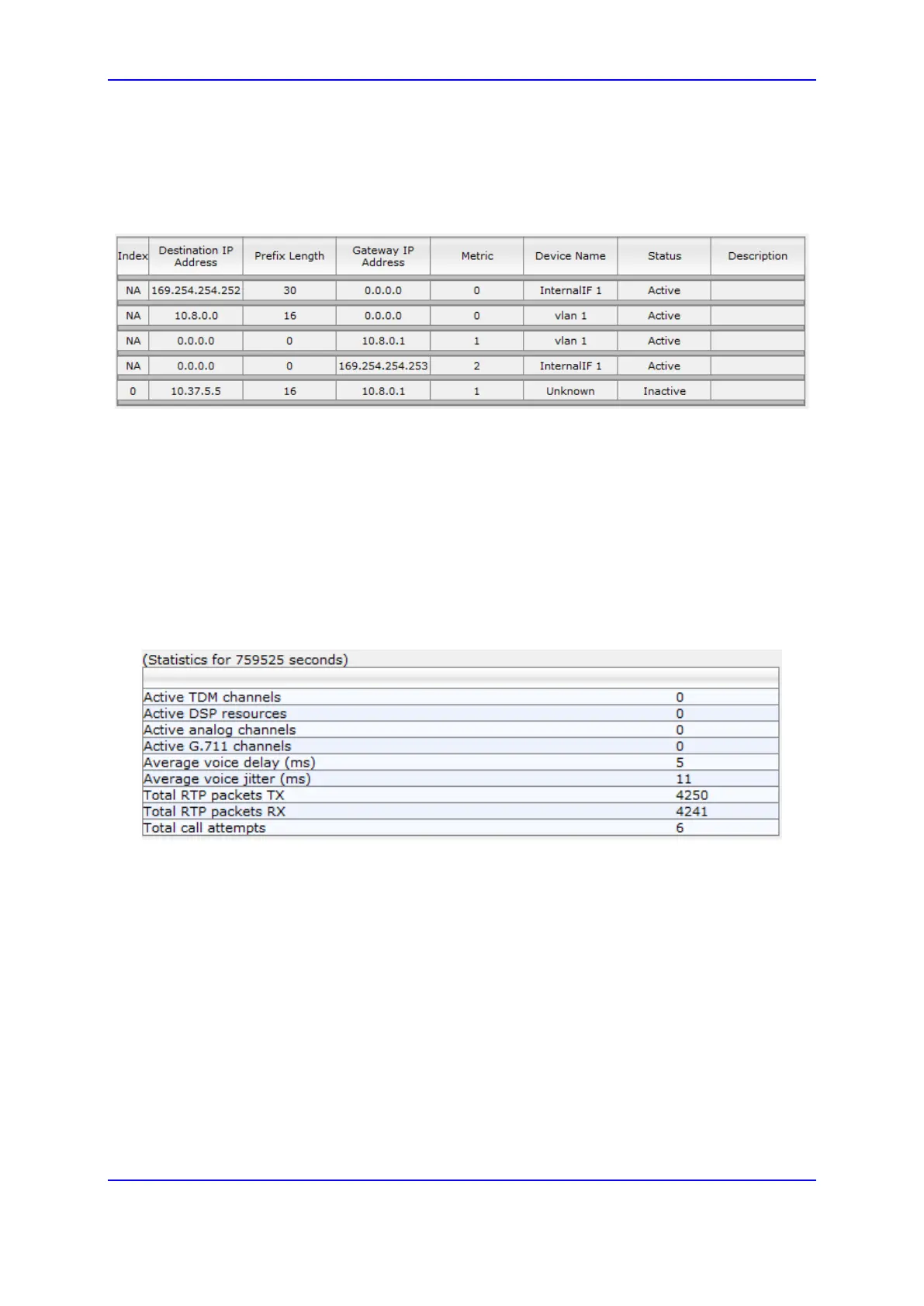

Figure 51-4: IP Routing Status Table Page
51.5 Viewing Performance Statistics
The Basic Statistics page provides read-only, device performance statistics. This page is
refreshed every 60 seconds. The duration that the currently displayed statistics has been
collected is displayed above the statistics table.
To view performance statistics:
Open the Basic Statistics page (Status & Diagnostics tab > VoIP Status menu >
Performance Statistics).
Figure 51-5: Basic Statistics Page
The duration that the displayed statistics were collected is displayed in seconds above the
table. To reset the performance statistics to zero, click the Reset Statistics button.
51.6 Viewing Call Counters
The IP to Tel Calls Count page and Tel to IP Calls Count page provide you with statistical
information on incoming (IP-to-Tel) and outgoing (Tel-to-IP) calls. The statistical
information is updated according to the release reason that is received after a call is
terminated (during the same time as the end-of-call Call Detail Record or CDR message is
sent). The release reason can be viewed in the 'Termination Reason' field in the CDR
message.
You can reset the statistical data displayed on the page (i.e., refresh the display), by
clicking the Reset Counters button located below the table.
