User's Manual 7. Web-Based Management
7.1.3 Areas of the GUI
The areas of the Web interface's GUI are shown in the figure below and described in the
subsequent table.

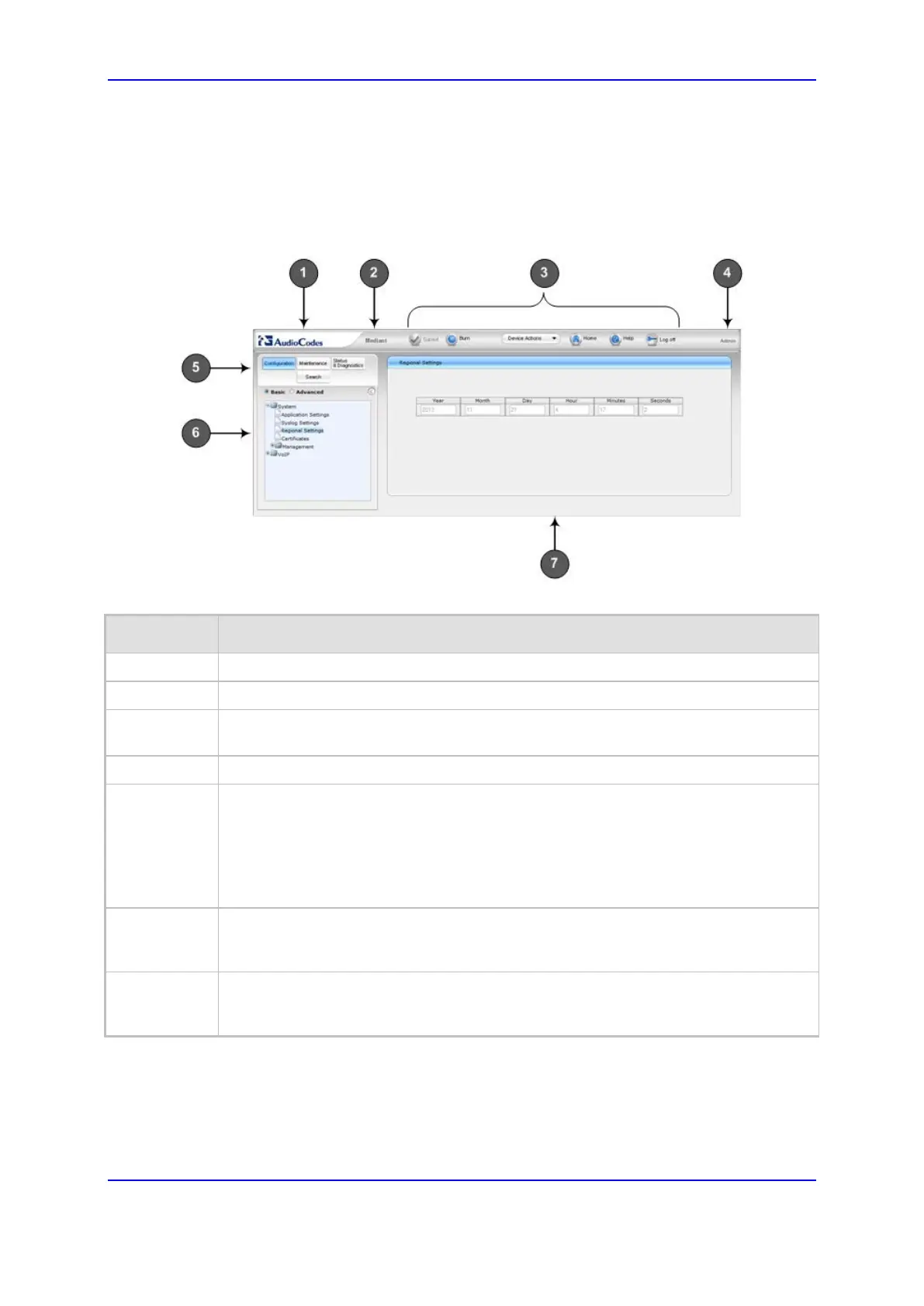

Figure 7-2: Main Areas of the Web Interface GUI
Table 7-1: Description of the Web GUI Areas
Item # Description
1
AudioCodes company logo.
2
Product name.
3
Toolbar, providing frequently required command buttons. For more information, see
''Toolbar Description'' on page 64.
4
Displays the username of the Web user that is currently logged in.
5
Navigation bar, providing the following tabs for accessing various functionalities in
the Navigation tree:
 Configuration, Maintenance, and Status & Diagnostics tabs: Access the
configuration menus (see ''Working with Configuration Pages'' on page 67)
 Search tab: Enables a search engine for searching configuration parameters (see
''Searching for Configuration Parameters'' on page 74)
6
Navigation tree, displaying a tree-like structure of elements (configuration menus or
search engine) pertaining to the selected tab on the Navigation bar. For more
information, see ''Navigation Tree'' on page 65.
7
Work pane, displaying the configuration page of the selected menu in the Navigation
tree. This is where configuration is done. For more information, see ''Working with
Configuration Pages'' on page 67.
