GE VOLUSON
i / VOLUSON
e
D
IRECTION KTI106052, REVISION 10 SERVICE MANUAL
Chapter 3 - Setup Instructions 3-33
3-5-2-5 Mounting small Peripherals (e.g., Black & White Printer)
1.) Place the B&W Printer on the upper peripheral shelf of the Dock Cart.
2.) Take a Velcro tape and pull it under the shelf.
3.) Pull up the Velcro tape on the left side. The other end of the tape place on the printer.
4.) Place the end of the Velcro tape on the top of the other end.
NOTE: Make sure that the Velcro tape is firmly fastened. For reference see: Figure 3-29 on page 3-30.
5.) Connect the peripheral device and mount the pull out protection of the power cable.
Links to connection schemes can be found in Table 3-9, “Connection Procedures,” on page 3-23.
NOTE: A power extender cable only from the on-board power sockets of the Dock Carts transformer should
be used to connect peripheral devices. Please connect the power extender cable to the peripherals
first, then connect the other end to the Power Distribution of the Dock Cart.

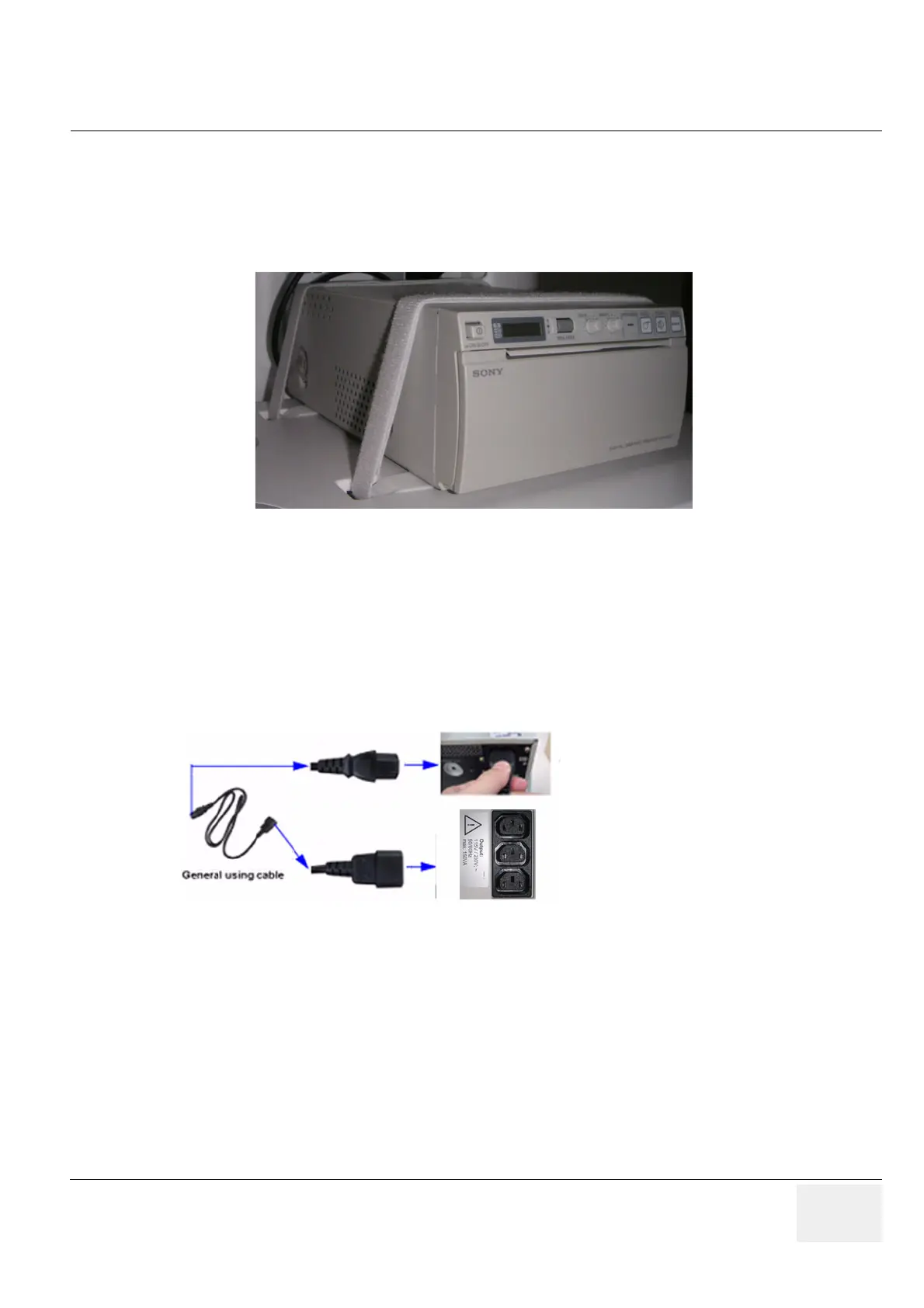

Figure 3-34 pull Velcro tape under shelf and printer and fasten it
Figure 3-35 Connect peripheral device to the Dock Cart
Connect B/W printer
or Color printer
Connect Power
Distribution
