Chapter 5 - Components and Functions (Theory) 5-43
5-8-1-3 DVD+(R)W Drive (Writer)
The portable DVD+R/RW Drive (Writer) is used to backup images and reports. In addition, it is used as
the main source of software upgrades and other service utility operations. The DVD+R/RW drive can
read/write CDs and +DVDs. It is controlled by the BEP via the USB port.
5-8-1-4 Wireless Network Adapter
The Voluson i / Voluson e supports a unique type of Wireless Network Adapter. For details regarding
type and installation, refer to Section 3-5-4 "Connecting the Wireless Network Adapter/Interface" on
page 3-43.
The Wireless Network Adapter provides a mobile network connection to the local area network.
The Wireless Network Adapter is supported via the PCMCIA port.
5-8-1-5 Wireless Network Interface
The Voluson i / Voluson e supports a unique type of Wireless Network Interface. For details regarding
type and installation, refer to Section 3-5-4 "Connecting the Wireless Network Adapter/Interface" on
page 3-43.
The Wireless Network Interface provides a mobile network connection to the local area network.
The Wireless Network Interface is supported viathe USB port.
5-8-1-6 Footswitch
The Footswitch is used for comfortable system control when no hand is free.
To adjust function of the Footswitch (Left/Right) see: Section 3-8-1-4 on page 3-100.
Section 5-9
External I/O
1.) Two interchangeable USB ports (Printers, DVD+R/RW Drive and other peripherals)
2.) Docking connector (connector for Voluson Station Docking Adapter)
3.) Port for DC IN (AC Adapter)
4.) SVGA Output (VCR option or CRT monitor option)
5.) LAN 10/100 Base-TX Ethernet network connector
6.) PCMCIA port for PC card (Wireless LAN; only available at GPC1-3)
7.) Ejection lever for PCMCIA device

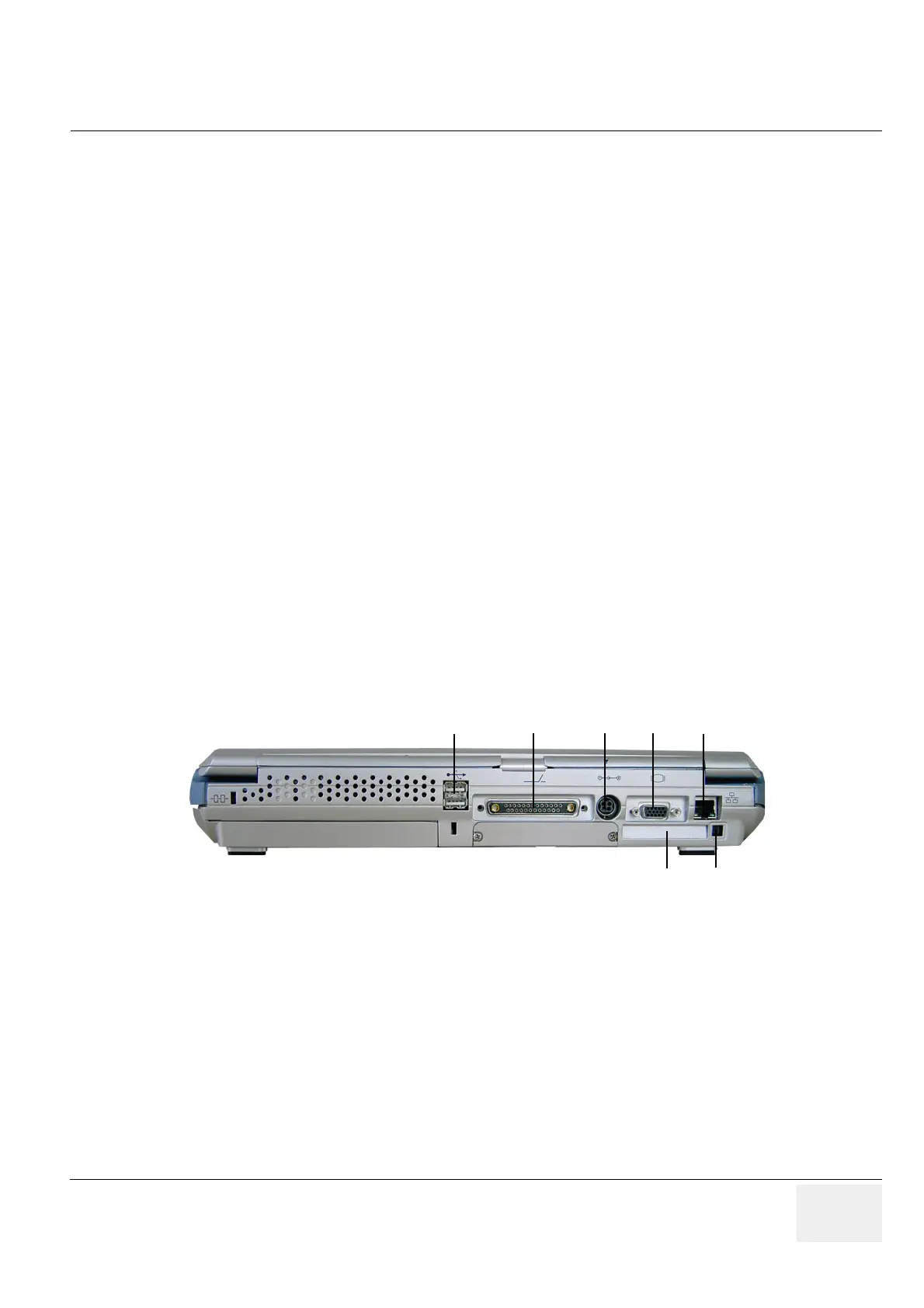

Figure 5-14 View of the Voluson i / Voluson e Rear Panel
