GE Voluson i BT06 User Manual

GE VOLUSON i / VOLUSON e
D
IRECTION KTI106052, REVISION 10 SERVICE MANUAL
Chapter 4 - Functional Checks 4-15
4-4-5 Volume Mode Checks
NOTE: Different menus are displayed depending on which Menu and which Volume Mode is selected.
4-4-5-1 Pre-Volume Mode Functions
NOTICE
!! NOTICE:
Static 3D, 4D Real Time,TUI*, VCI*, RT 4D Biopsy*, SonoAVC, SonoVCAD heart*,
SonoVCAD labor and STIC* are optional.
If these options are not a part of the system configuration, the appendant checks can be obmitted.
BT Version:
BT-Version:
The options “RT 4D Biopsy” and “VCI” are only applicable at Voluson i systems with BT´07 software
and higher.
BT Version:
BT-Version:
The options “SonoVCAD heart” and “STIC” are only applicable at Voluson i systems with BT’09
software.
BT Version:
BT-Version:
The options “SonoAVC” and “SonoVCAD labor” are only applicable at Voluson i / Voluson e systems
with BT’09 software.
NOTICE
!! NOTICE:
Not all Options are available on the Voluson e (marked with * in this manual).
BT Version:
BT-Version:
The options “SonoRS” and “SonoNT” are only applicable at Voluson i / Voluson e systems with BT’11
software.

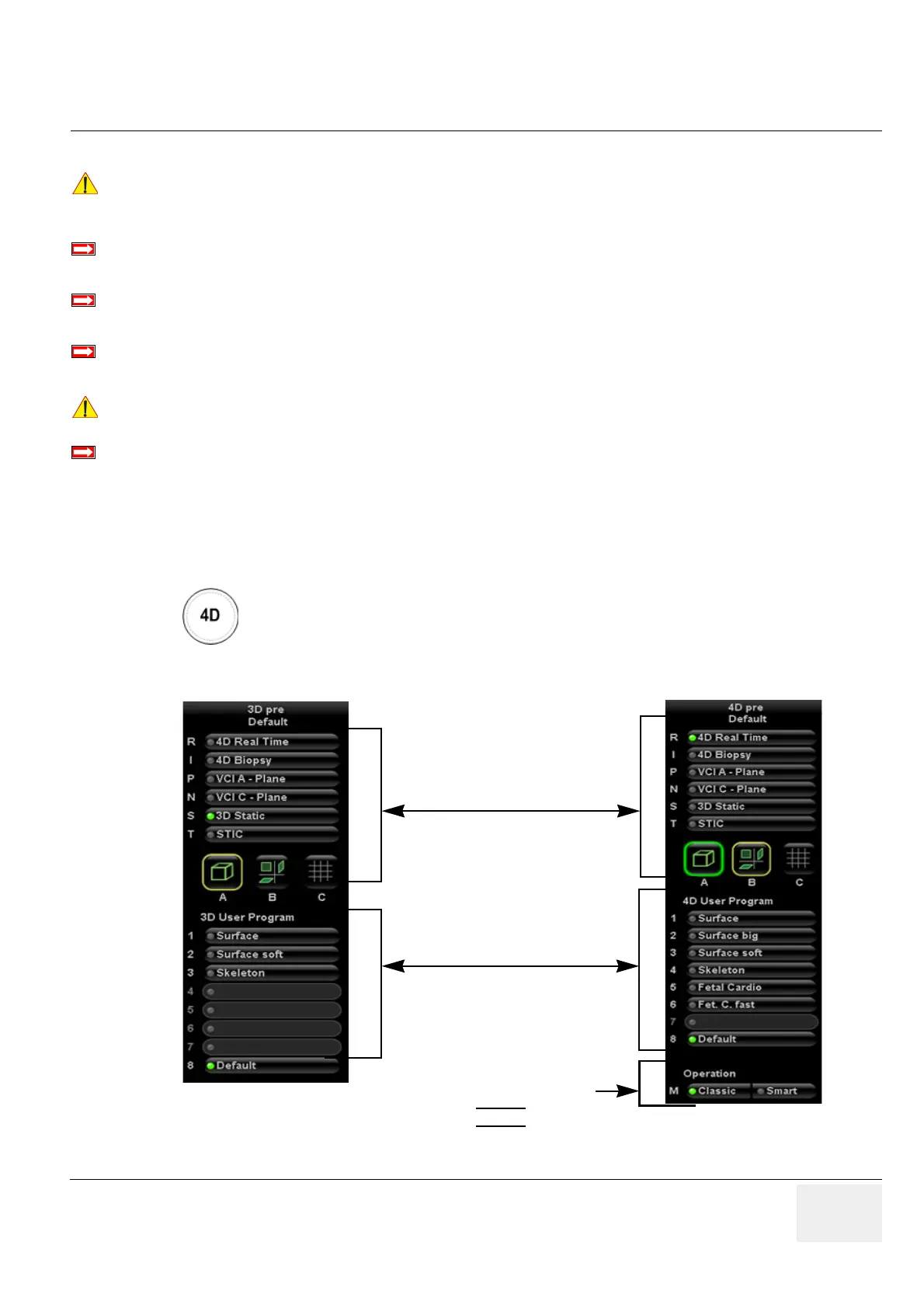

Figure 4-9 Pre-Volume Mode menus
Volume Acquisition: Static 3D
5. Start the Volume Acquisition with the Freeze
key resp. the right trackball key.
Volume Acquisition: Real Time 4D
1. select the desired Volume Acquisition Mode:
The Volume Mode function is switched on, the “3D Pre” respectively “4D Pre” menu appears
on the screen (write mode) and the volume box appears on the Image area.
2. select Acquisition and/or
3. select an User Program
Visualization Mode
4. select desired Operation mode

GE Voluson i BT06 Specifications

General

Type	Ultrasound System
Model	Voluson i BT06
Manufacturer	GE Healthcare
Display	15-inch LCD
Portability	Portable
Application	Obstetrics, Gynecology
Imaging Modes	Color Doppler, Power Doppler
Software Features	Automated measurements
Weight	Approx. 10 kg
Power Requirements	100-240V AC
Connectivity	DICOM, USB

Summary

Important Precautions

Translation Policy

Manual is available in English only; translation services are the customer's responsibility.

Chapter 1 Introduction

Section 1-1 Overview

Provides a summary of the chapter's content and discusses the purpose of the service manual.

Section 1-2 Important Conventions

Details conventions used in the manual, including model designations, icons, and safety precaution messages.

Section 1-3 Safety Considerations

Outlines essential safety precautions for operation, service, and repair of the equipment.

Section 1-4 Electromagnetic Compatibility (EMC)

Explains EMC, compliance requirements, and electrostatic discharge prevention measures.

Section 1-5 Customer Assistance

Provides contact information for support and assistance from GE.

Chapter 2 Site-Preparation

Section 2-1 Overview

Provides an overview of the chapter and its purpose.

Section 2-2 General Console Requirements

Details environmental and electrical requirements for the console.

Section 2-3 Facility Needs

Outlines purchaser responsibilities and site recommendations for installation.

Chapter 3 Setup Instructions

Section 3-1 Overview

Introduces the chapter and its purpose, including procedures for receiving, unpacking, and configuring equipment.

Section 3-2 Set Up Reminders

Provides reminders for average installation time, warnings, and system acclimation.

Section 3-3 Receiving and Unpacking the Equipment

Details procedures for receiving and unpacking the Voluson i / Voluson e ultrasound system and its peripherals.

Section 3-4 Preparing for Set Up

Covers verification of customer order, inspection of components, and system setup.

Section 3-5 Connection of Auxiliary Devices

Outlines procedures for connecting various peripherals and devices to the system.

Section 3-6 Completing the Set Up

Details connecting the unit to a power source and powering on the system.

Section 3-7 Printer Installation

Provides instructions for installing and configuring various printers.

Section 3-8 System Configuration

Covers system setup, including date/time, hospital name, language, and screen lock.

Section 3-9 Available Probes

Lists available probes and refers to their part numbers for service.

Section 3-10 Software/Option Configuration

Guides on configuring software options and parameters.

Section 3-11 Connectivity Setup

Explains how to connect the system to remote archives, workstations, or DICOM servers.

Section 3-12 Network IP Address Configuration

Details the procedure for configuring network IP addresses for system connectivity.

Section 3-13 Connectivity Setup Worksheet

Provides a worksheet for recording connectivity and network information.

Section 3-14 Paperwork

Ensures documentation for peripheral units is kept with the original system documentation.

Chapter 4 Functional Checks

Section 4-1 Overview

Provides an overview of the chapter's purpose and content.

Section 4-3 General Procedure

Outlines the general procedure for performing functional checks.

Section 4-4 Functional Checks

Familiarizes with procedures for checking system's different modes and image optimization.

Section 4-5 Backup and Restore Database, Preset Configurations and Images

Details procedures for backing up and restoring system data, presets, and images.

Section 4-6 Software Configuration Checks

Guides on checking system setup and measurement configurations.

Section 4-7 Peripheral Checks

Details how to check the functionality of peripherals.

Chapter 5 Components and Functions (Theory)

Section 5-1 Overview

Provides an overview of the chapter's purpose.

Section 5-2 General Information

Describes the system's general features, applications, and major components.

Section 5-3 Front End Processor

Explains the architecture and components of the Front End Processor.

Section 5-4 Back End Processor

Details the components and functions of the Back End Processor.

Section 5-5 Power Supply Unit

Explains the functions and components of the power supply unit.

Section 5-6 Keyboard and Control Panel

Illustrates the layout and components of the keyboard and control panel.

Section 5-11 Service Platform

Introduces the Service Platform and its access/security features.

Section 5-12 Common Service Desktop (CSD)

Describes the user interface and features of the Common Service Desktop.

Section 5-13 Service Page

Details the specific software/hardware test modules and system setup available on the Service Page.

Chapter 6 Service Adjustments

Section 6-1 Overview

Provides an overview of the chapter's purpose.

Section 6-3 LCD Display (Monitor) Adjustment

Provides instructions for adjusting color calibration and LCD brightness.

Section 6-4 Network Speed Settings

Guides on configuring network adapter settings and speeds.

Section 6-5 Modo Cart Height Adjustment

Details how to adjust the height of the Modo Cart.

Section 6-6 Dock Cart Height Adjustment

Provides instructions for adjusting the height of the Dock Cart's shelves.

Section 6-8 Voluson Station Height Adjustment

Provides instructions for adjusting the height of the Voluson Station.

Section 6-9 Modification of Keyboard Layout

Guides on setting up the Voluson i / Voluson e keyboard language layout.

Chapter 7 Diagnostics/Troubleshooting

Section 7-1 Overview

Describes how to setup and run tools for maintaining image quality and system operation.

Section 7-2 Collect Vital System Information

Details necessary information for analyzing malfunctions or returning units to the manufacturer.

Section 7-4 Screen Captures and Logs

Provides procedures for capturing screens and exporting system data for analysis.

Section 7-5 Remote Access to Service Platform

Offers GE technicians the possibility to view the customer's desktop and operation system remotely.

Section 7-6 How to use the Auto Tester program

Guides on how to start, use, and stop the Auto Tester program for recording processes.

Section 7-8 Troubleshooting Trees and Instructions

Outlines troubleshooting trees and instructions for common issues like noise and malfunctions.

Section 7-9 Error Messages

Lists error messages and their corresponding actions to resolve problems.

Chapter 8 Replacement Procedures

Section 8-1 Overview

Contains replacement procedures for different modules and subsystems.

Section 8-2 System Software - Installation/Upgrade Procedure

Details procedures for installing or upgrading system software from DVD or external device.

Section 8-11 Replacement of the GPA - Battery

Provides instructions for replacing the rechargeable battery pack (GPA).

Section 8-12 Replacement of the Display Front Frame

Details the procedure for replacing the LCD display front frame.

Section 8-14 Replacement of the BBDI Rigid Flex Assembly

Details the procedure for replacing the BBDI rigid flex assembly.

Section 8-18 Replacement of the Modo Cart Components

Outlines replacement procedures for Modo Cart components like probe holders and fuses.

Section 8-19 Replacement of the Dock Cart Components

Details replacement procedures for Dock Cart components such as trays, covers, and wheels.

Section 8-20 Replacement of the Voluson Station Components

Outlines replacement procedures for Voluson Station components like cable holders and probe holders.

Chapter 9 Renewal Parts

Section 9-1 Overview

Provides an overview of replacement parts available for the Voluson i / Voluson e.

Section 9-2 List of Abbreviations

Lists and defines abbreviations used in the manual.

Section 9-3 Parts List Groups

Categorizes mechanical and user-accessible parts for the system.

Section 9-4 Mechanical Hardware Parts and Covers

Illustrates and lists mechanical hardware parts and covers.

Section 9-5 Keyboard parts

Illustrates and lists various keyboard modules and related parts.

Section 9-6 Electronic Parts

Illustrates and lists electronic components of the system.

Section 9-7 Options and Upgrades

Lists available software options and upgrades for Voluson i and Voluson e systems.

Section 9-8 Miscellaneous Cables

Lists various cables and their part numbers for system connectivity.

Section 9-9 Optional Peripherals and Accessories

Outlines optional peripherals and accessories, including recording tools, printers, and drives.

Chapter 10 Care & Maintenance

Section 10-1 Overview

Provides an overview of periodic maintenance and the purpose of the chapter.

Section 10-2 Why do Maintenance

Explains the importance of maintaining records and quality assurance for the ultrasound system.

Section 10-3 Maintenance Task Schedule

Outlines how often care and maintenance tasks should be performed.

Section 10-4 Tools Required

Lists the special tools, supplies, and equipment needed for maintenance.

Section 10-5 System Maintenance

Covers preliminary checks, functional checks, and system checks.

Section 10-7 Electrical Safety Tests

Details electrical safety tests, including leakage current limits and grounding continuity.

Section 10-8 When There's Too Much Leakage Current...

Provides troubleshooting steps for excessive leakage current issues.

Section 10-9 Ultrasound Equipment Quality Check (EQC)

Guides on downloading and using EQC and IQC forms for quality checks.

Section 10-10 Electrical Safety Test Form

Provides a form for recording electrical safety test results.
