GE VOLUSON

i / VOLUSON

IRECTION KTI106052, REVISION 10 SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-41

8-18-2 Replacement of the Cable Clips

8-18-2-1 Manpower

One person, 5 minutes

8-18-2-2 Tools

none

8-18-2-3 Preparations

none

8-18-2-4 Cable Clips - Removal Procedure

1.) Pinch together the Cable Clips.

2.) Remove the Cable Clips.

8-18-2-5 Cable Clips - Installation Procedure

1.) Place the new Cable Clips.

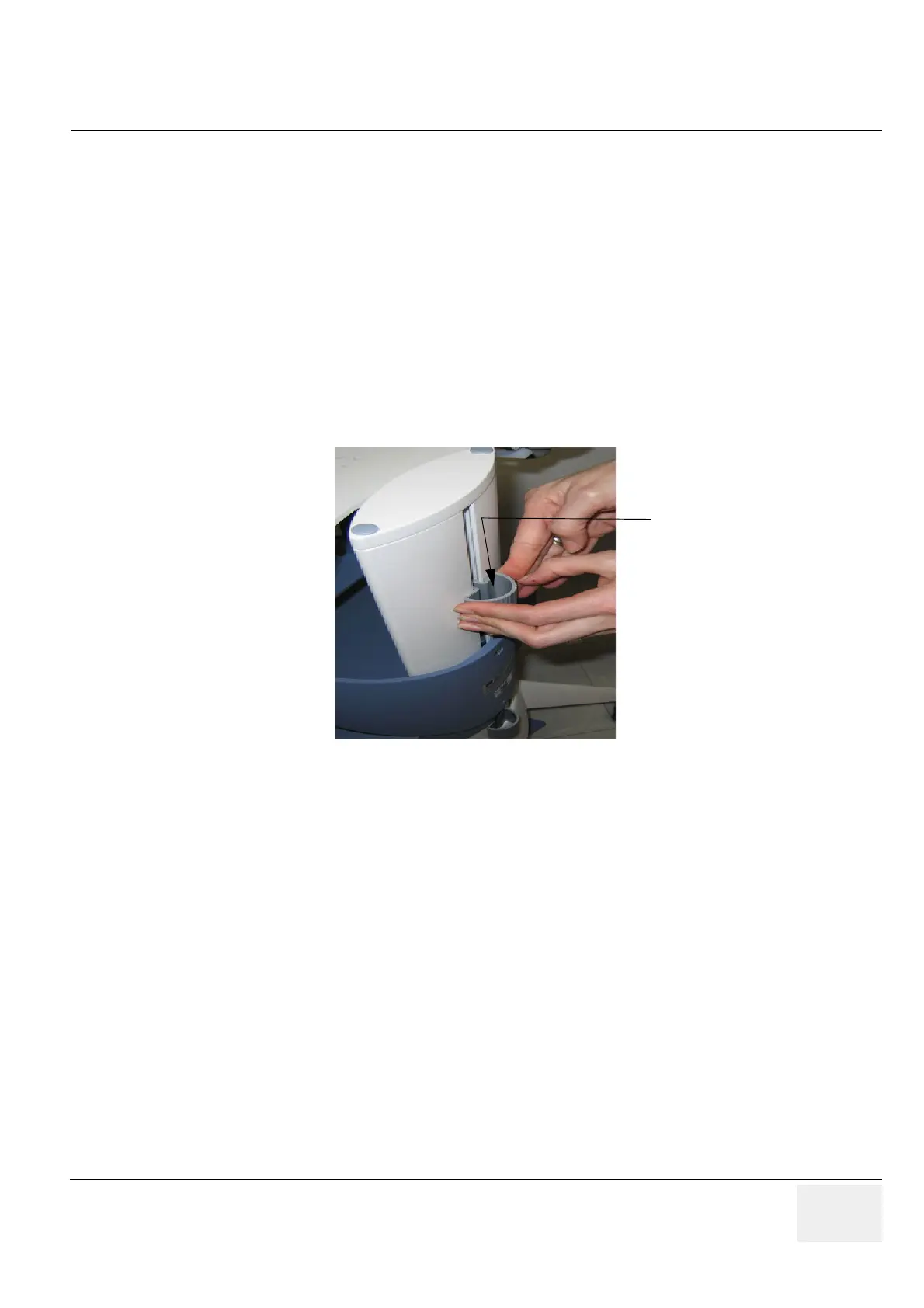

Figure 8-56 Pinch together the Cable Clips

Cable Clip

Default Chapter15
- Table of Contents15
