3-76 Section 3-6 - Completing the Set Up
- Recharge Time:
Time for a full charge from 0% to 100% state of charge is typically 4.5 hours.
- Recalibration Time
minimum recalibration time: approximately 9 hours
maximum recalibration time: approximately 14 hours
see: Section 3-6-4-2 "Recalibrating the Battery" on page 3-76.
Remove the battery from the charger unit battery bay and install it in the Voluson i / Voluson e system.
NOTE: For more details, refer to Section 5-5-6 "Battery Charger" on page 5-33.
3-6-4-2 Recalibrating the Battery
There are two possibilities to recalibrate the Voluson i / Voluson e´s lithium ion battery:
• Recalibration by means of Internal Battery Charger
• Recalibration by means of External Battery Charger
NOTE: For more details on recalibration and an explanation of why it is necessary, refer to
Section 5-5-6-2 "Recalibration" on page 5-34.

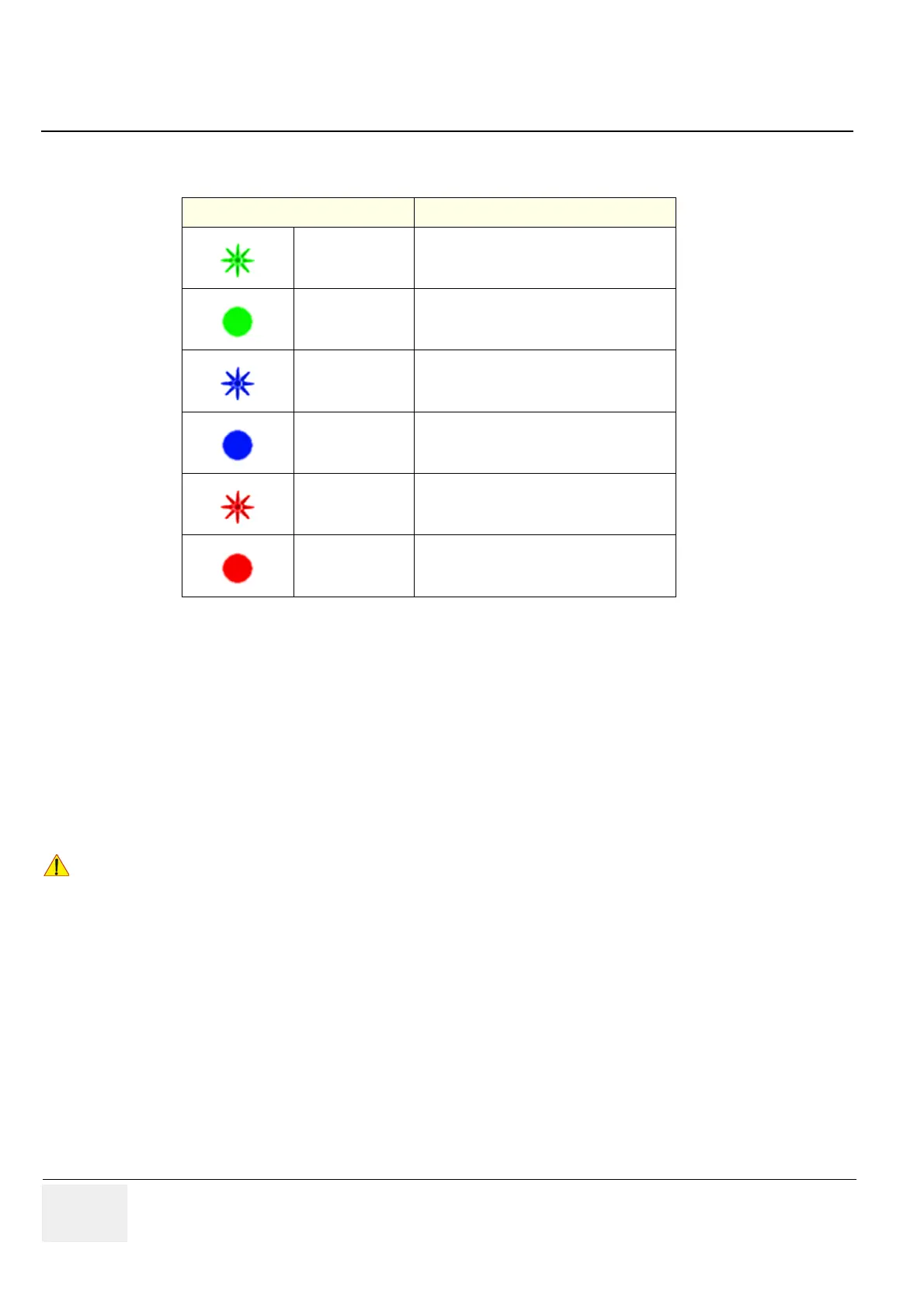

Table 3-12 Battery Charger LED Indicators and Status
LED Indicator Status
Green Flashing Battery charging
Green Solid Battery fully charged
Blue flashing Battery in calibration mode
Blue Solid Battery fuel gauge calibrated
Red Flashing Battery fuel gauge in need of recalibration
Red Solid Error
Recalibration will take between 9 an 14 hours (depending on state of charge of the battery).
In order to carry out a full recalibration the following must occur:
• a fully battery charge (to take it to 100% charged and establish current “Full point”)
• a fully calibration discharge (at this point the battery is calibrated, but also empty)
• a fully recharge to return it to use
A calibration cycle will be faster if the battery is fully charged to begin with.
