5-8 Section 5-2 - General Information

5-2-3 Block diagram Voluson i / Voluson e

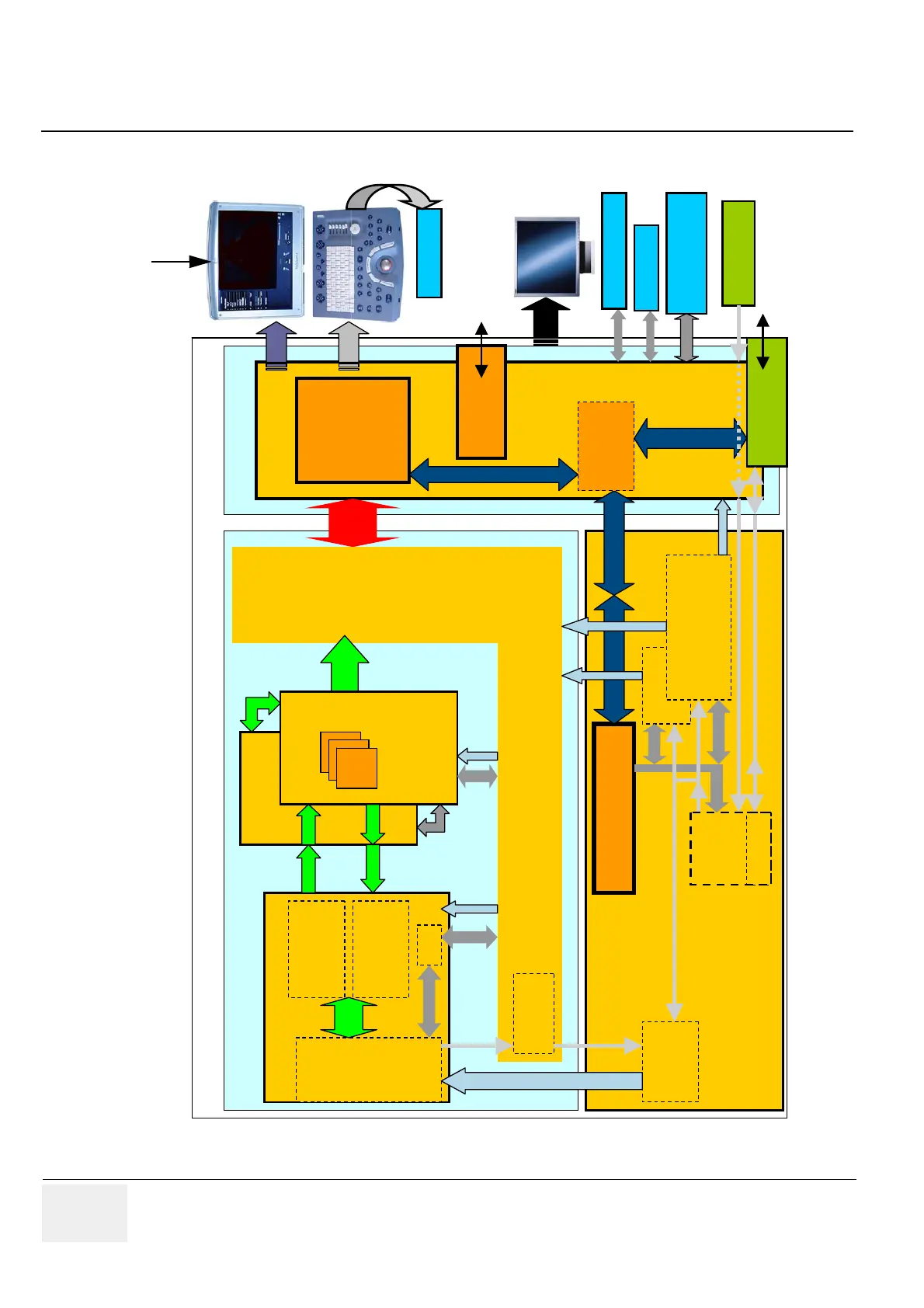

Figure 5-3 Top Level Architecture

15’’ LCD

Monitor

Front End

GPM (RPM)

Back End

Baseboard

GPP (RPS)

SMBus

Rx-MUX

192 to 64

Probe

Connector

192 El.

RBF (1)

32 x (Tx+Rx)

RBI

ControlControl

ETX

SBC

Pentium M

1.4GHz

RBF (2)

32 x (Tx+Rx)

PCI

HV-Supply

LV-Supply Frontend

LV-Supply Backend

Battery

RPC

Controller & Monitoring

Motor

Power

Amplifier

BFIC

Monitor

HDD (80GB)

SupplySupply

AC Adapter

Interface for

Docking Station ..

PMC - Power

Management

Controller

SMBus

+ Charger

Motor

Controller

System Supply

Tx-MUX

192 to 64

Buffer

Source-

Selector

SMBus

Bottom Assembly

2x USB2.0

15‘‘ LCD +

Microphone

PCMCIA

LAN 100 MBit

VGA

Microphone not

available with

SW 8.1.2 and higher
