8-26 Section 8-8 - Replacement of TGC Slider controls
Section 8-8
Replacement of TGC Slider controls
8-8-1 Manpower
One person, 5 minutes
8-8-2 Tools
small-sized slotted screwdriver or tweezers
8-8-3 Preparations
1.) Power Off/Shutdown the system as described in Section 3-6-3 on page 3-72.
8-8-4 TGC Slider - Removal Procedure
1.) Gently lift the defective key cap, until it is completely loosened from its base.
2.) Remove the defective Slider-potentiometer cap - see Figure 8-31 below.
8-8-5 TGC Slider - Installation Procedure
1.) Place a new slider cap in position on the slider base and push it down until it snaps into position.

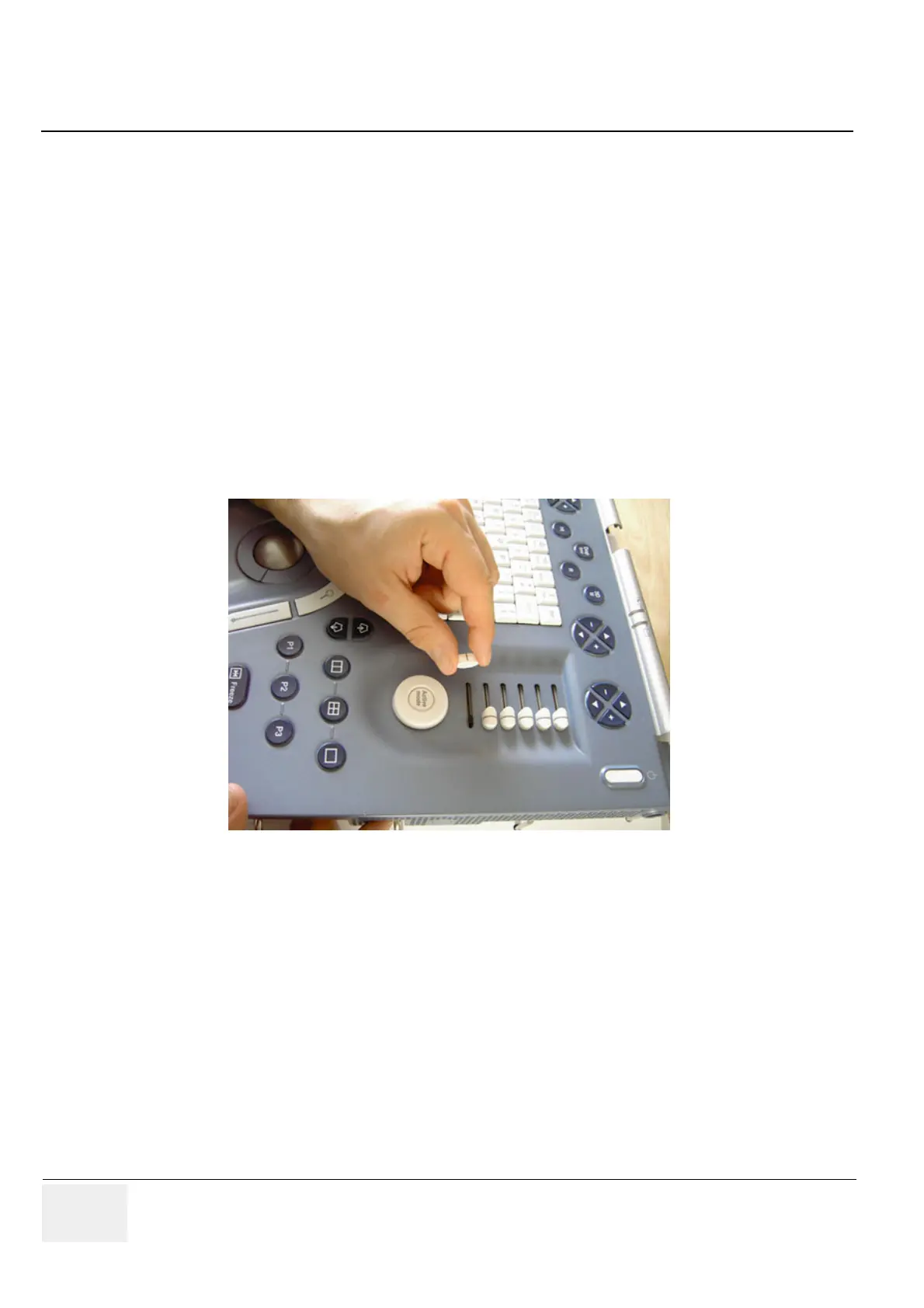

Figure 8-31 TGC Slider Replacement
