GE VOLUSON
i / VOLUSON
e
D
IRECTION KTI106052, REVISION 10 SERVICE MANUAL
3-4 Section 3-3 - Receiving and Unpacking the Equipment
Section 3-3
Receiving and Unpacking the Equipment
The Voluson i / Voluson e ultrasound system, together with peripherals, probes, cables and accessories
are shipped from the factory in a single durable shipping crate which is mounted on a raised wooden
platform base - see Figure 3-3 on page 3-5.
If the optional Modo Cart, Dock Cart or Voluson Station has been ordered, this is shipped in a separate
shipping crate.
* Weight is approximate and will vary depending upon the supplied peripherals
NOTE: Before unpacking the unit, inspect the crate for visible damage.
!! CAUTION:
Please read this section carefully before unpacking the Voluson i / Voluson e portable
ultrasound system and its (optional) peripherals.
!! CAUTION:
Transport only with forklift or stacker truck.
During transportation pay attention to the point of gravity.
Only one person is required to unpack the Voluson i / Voluson e ultrasound unit.
At least two people must be available to unpack the Modo Cart, the Dock Cart or the Voluson
Station. Attempts to move the Cart considerable distances (or on an incline) by one person
alone, could result in personal injury, and/or damage to the system.
Move the Cart forward or backward when going up or down inclines. Do not move the Cart
sideways or diagonally.
Table 3-4 Shipping Cartons - Dimensions and Weights
Description Height Width Depth
Weight*
Voluson i / Voluson e
incl. peripherals and accessories
75 cm / 30 inch 93 cm / 37 inch 70 cm / 28 inch 50 kg / 110 lbs
Voluson - Modo Cart only 106 cm / 41.7 inch 75 cm / 29.5 inch 70 cm / 28 inch 58.5 kg / 129 lbs
Voluson - Dock Cart only 100 cm / 39,3 inch 63 cm / 24,8 inch 60 cm / 24 inch 59 kg / 130 lbs
Voluson Station only 91 cm / 35,8 inch 73 cm / 28,7 inch 69 cm / 27,1 inch 61 kg / 134 lbs
!! NOTICE:
The device must only be transported in the original packaging!
Each shipping crate is sealed with cross-head screws. A Phillips 2 screwdriver is needed to open the
crate. It is recommended to keep and store the shipping crate and all other packing materials (including
the support foams, anti-static plastic cover, etc.), in case the unit (and/or Cart) has to be moved to a
different location.
Unpack the devices such a way that packaging can be reused.
For warranty purposes, storage of the above is required for one year from date of purchase.
!! NOTICE:
If the shipping crate is damaged, please inform the GE sales representative immediately.

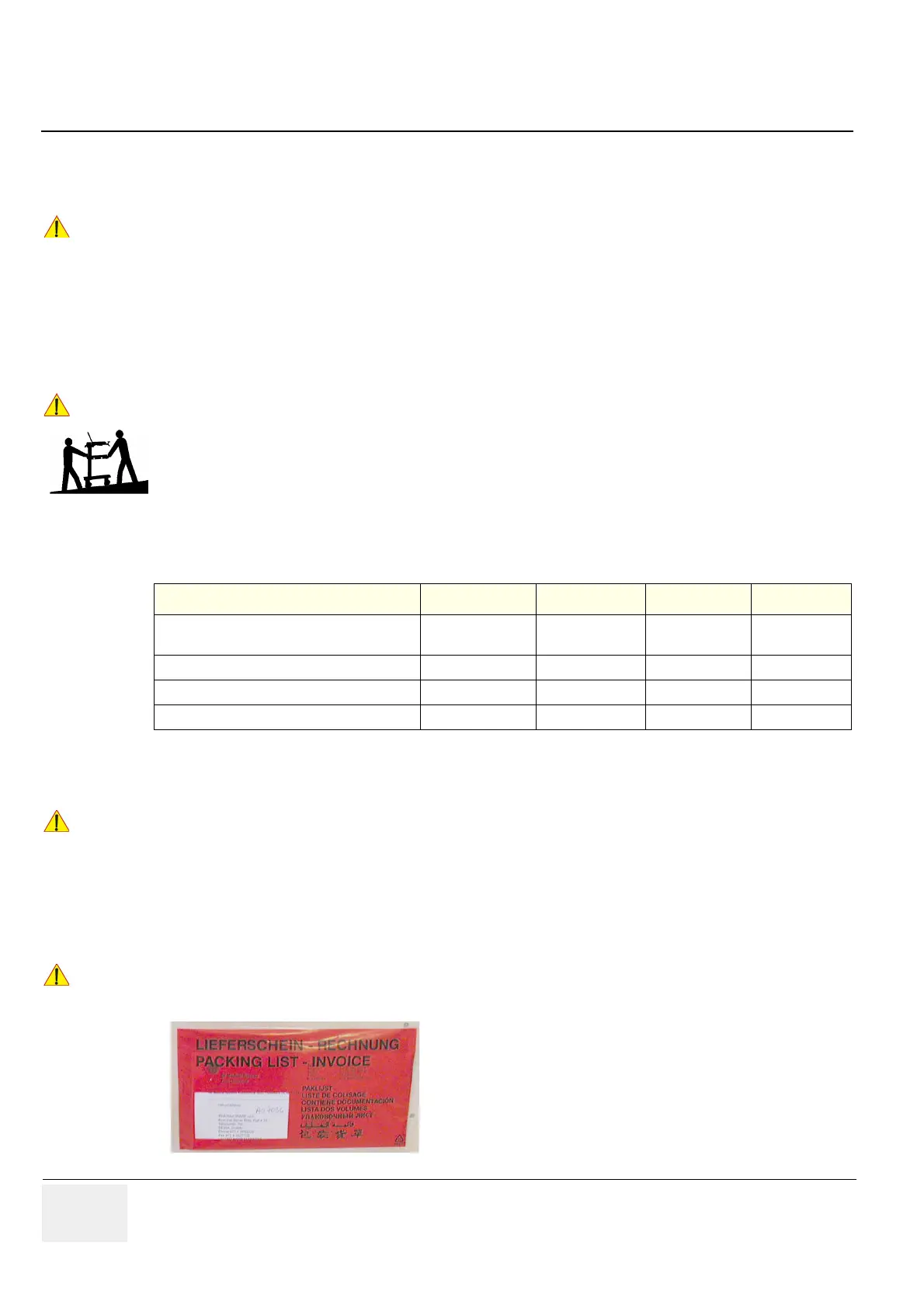

Figure 3-2 envelope at front panel of the crate
Check whether delivery is complete (according to
packing list) and check visual damage!
The envelope with delivery address, packing list and
invoice is located on the front panel of the carton.
