3-5-3 Connection and Usage of the optional Voluson Station
3-5-3-1 Attaching the Voluson i / Voluson e to the Voluson Station
1.) Place the system in the docking bay on the top shelf of the
Voluson Station (1).
2.) Pull down the docking lever(2+3).
!! WARNING:
DO NOT CONNECT any devices to any AC power other than the on-board outlets from
the transformer, as this might increase leakage currents and sacrifice patient safety.
!! WARNING:
Before starting the Voluson i / Voluson e or Peripherals that are connected to the
Voluson Station, ALWAYS make sure that rating of the power supply fuses is
compatible and the voltage output selector is in the correct position.
The wrong fuses and position of the voltage output selector may cause major damage
on the Voluson i / Voluson e system and connected peripherals.
!! CAUTION:
Make sure that all peripherals are firmly secured in position according installation procedure.
!! NOTICE:
A battery or an empty battery shell should always be attached to the Voluson i / Voluson e system
before attaching it to the Voluson Station.

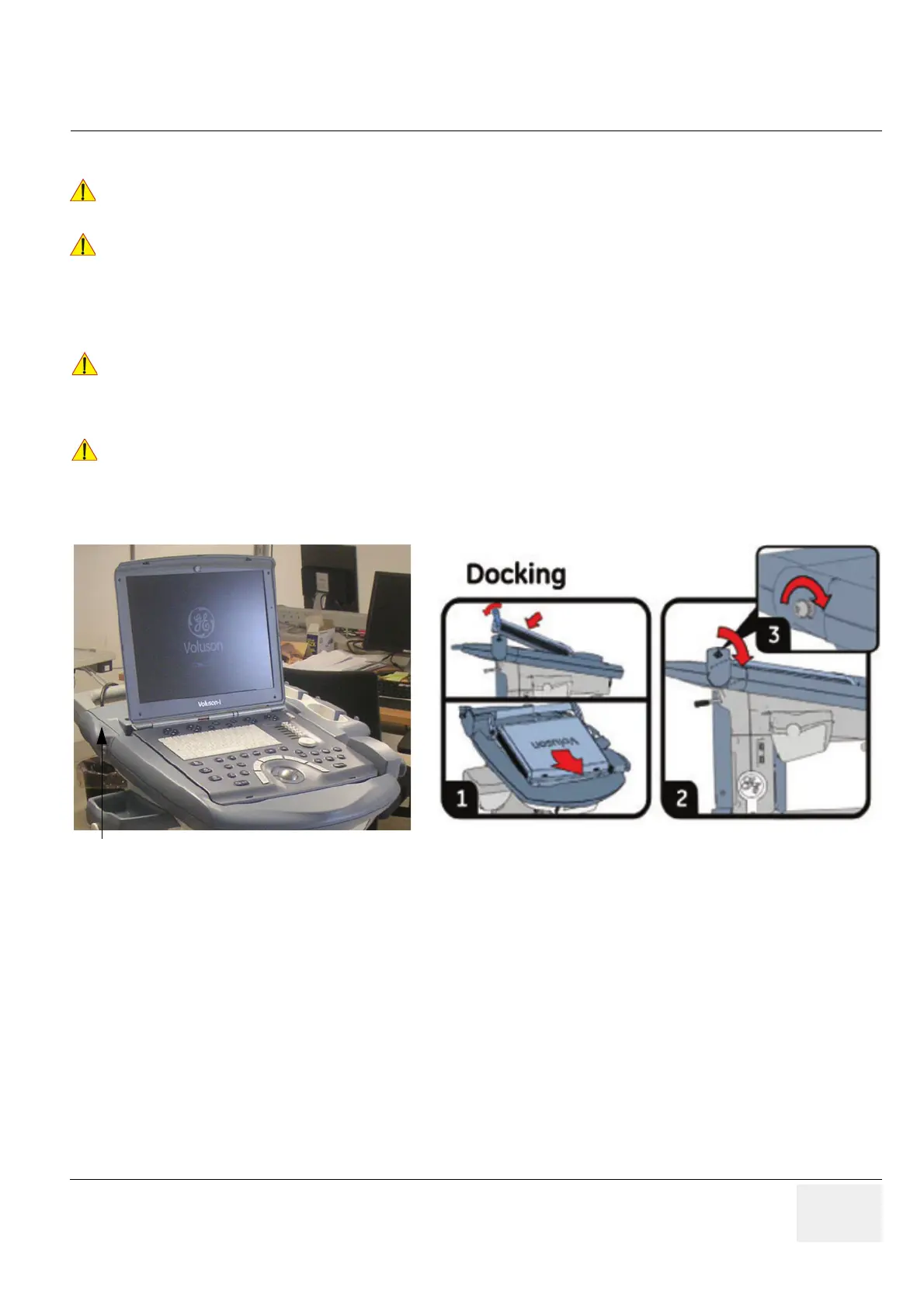

Figure 3-38 Voluson i / Voluson e attached to the Voluson Station
