GE VOLUSON
i / VOLUSON
e
D
IRECTION KTI106052, REVISION 10 SERVICE MANUAL
8-70 Section 8-20 - Replacement of the Voluson Station Components
8-20-10 Replacement of the Patient Monitor
8-20-10-1 Manpower
One person, 5 minutes
8-20-10-2 Tools
Phillips screwdriver 1
8-20-10-3 Preparations
1.) Power Off/Shutdown the system as described in Section 3-6-3 on page 3-72.
8-20-10-4 Patient Monitor - Removal Procedure
1.) Carefully pull out the Patient Monitor.
2.) Screw off the head plate of the tripot from the Patient Monitor.
3.) Screw off the tripod from the Adapter.
4.) Screw out 2 screws on the Back Handle and remove the Adapters.
8-20-10-5 Patient Monitor - Installation Procedure
5.) Insert the right and the left Adapter and fix it with the 2 screws.
6.) Fix the tripod with a thumbscrew on the Adapter (see Figure 8-92 on page 8-70).
7.) Fix the head plate from the tripod with a screw on the monitor (see Figure 8-92 on page 8-70).
8.) Place the new Patient Monitor at its original position (see Figure 8-91 on page 8-70).

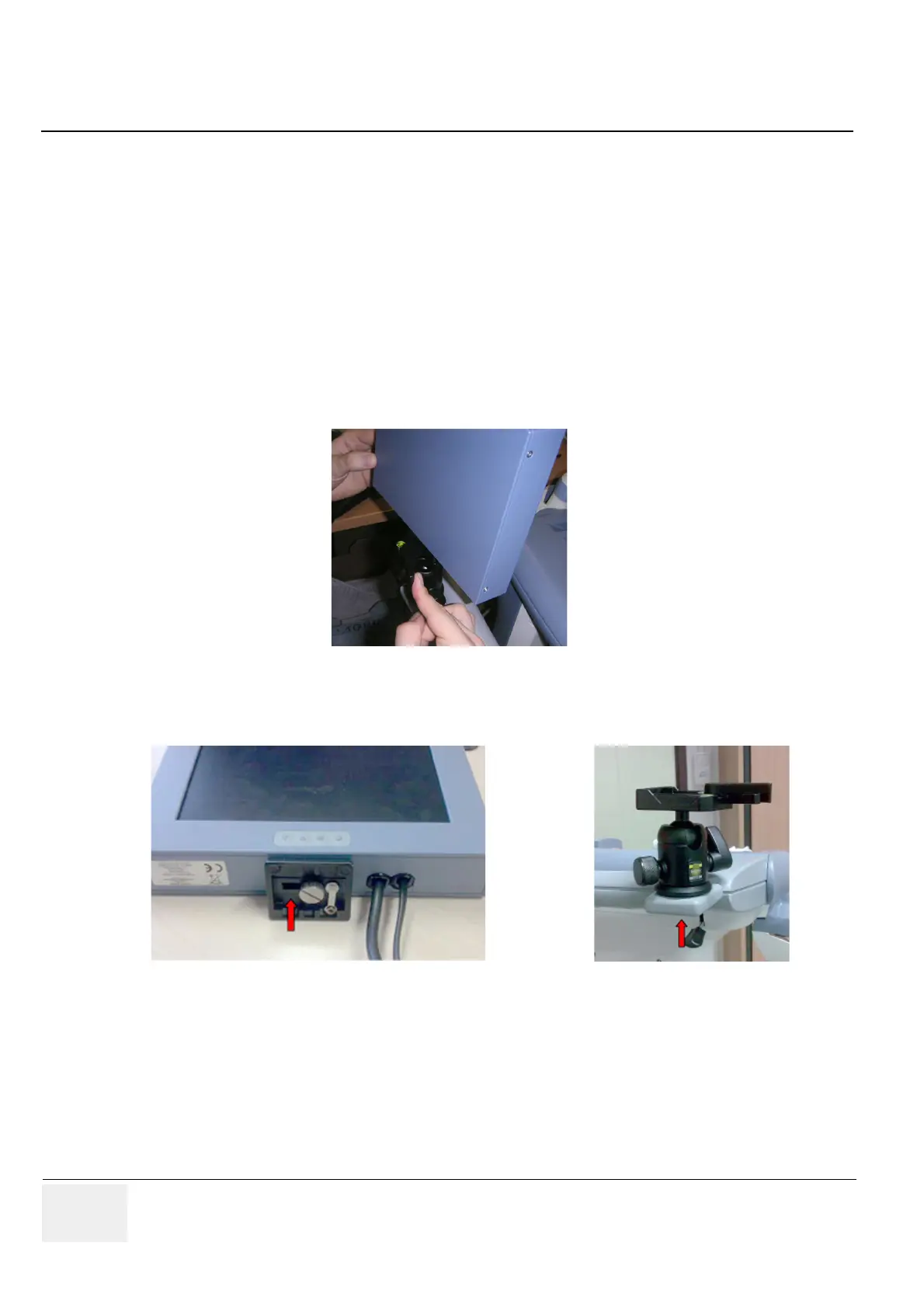

Figure 8-91 pull out the Patient Monitor
Figure 8-92 screw off the head plate / screw off the tripod
