IRECTION KTI106052, REVISION 10 SERVICE MANUAL
Chapter 3 - Setup Instructions 3-21
3-4-4 Dock Cart / Dock Cart light / Voluson Station Voltage Configuration
NOTE: Only required when using the Voluson i / Voluson e with the optional Dock Cart, Dock Cart light or
Voluson Station.
Check Fuses and Voltage Output Selector setting located on the power supply of the Cart.
If required switch Output Selector to correct position and exchange fuses of the power supply.
a.) Open the fuse protection on the rear of the power supply.
b.) Pull out the fuse holder and exchange the 2 fuses.
c.) Push the fuse holder back into position (correct voltage should be shown in upper line,
e.g, 230V) and then close protection.
!! CAUTION:
Before starting the system or peripherals connected to the Cart, always make sure:
• Rating of power supply fuses is compatible. • Output Selector is in correct position.
The wrong fuses and position of the voltage output selector may cause major damage on
Voluson i / Voluson e and connected peripherals.
!! CAUTION:
Rating of fuses depend on Voltage (refer to description on the power supply).

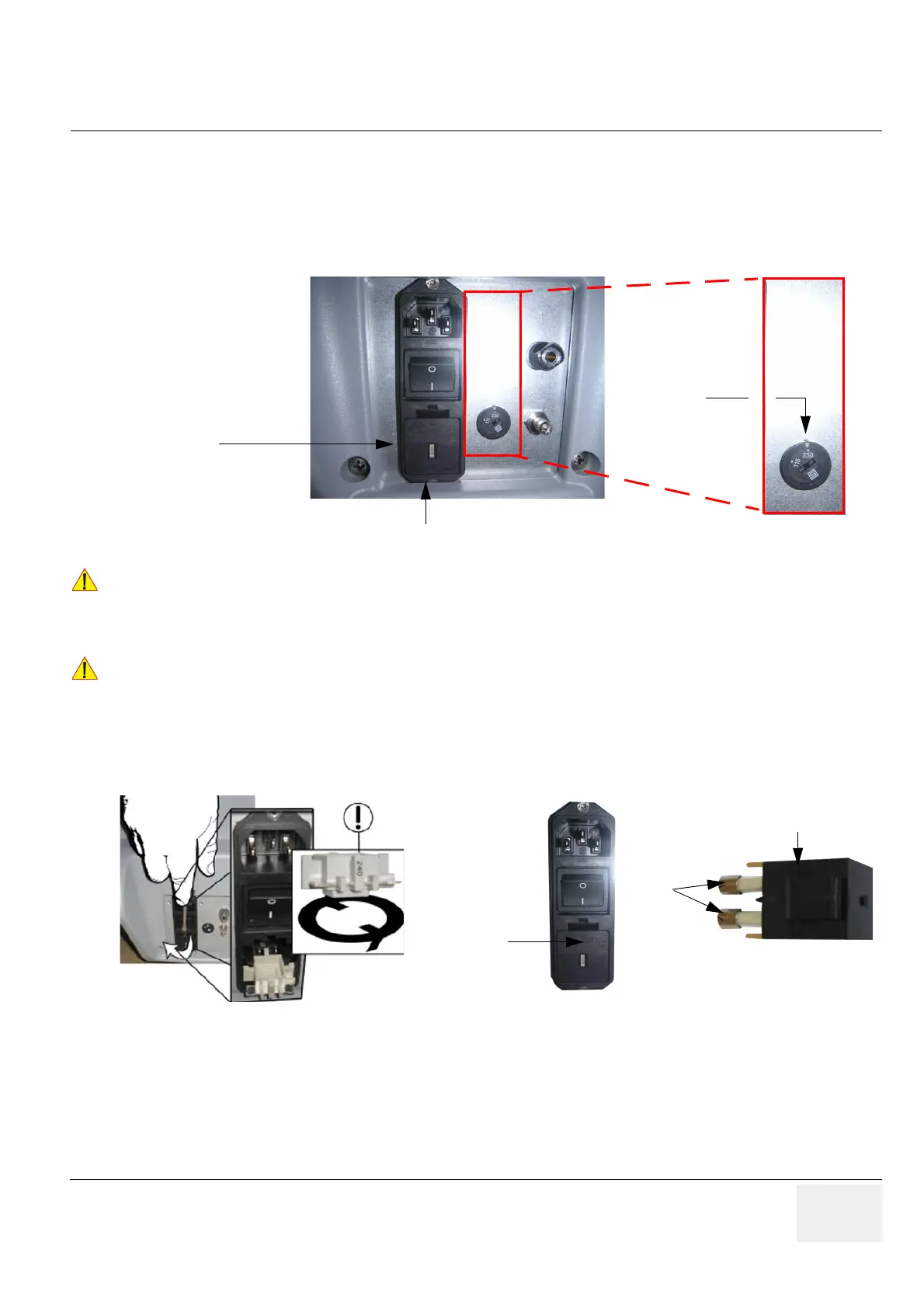

Figure 3-17 Change Main Power Voltage / Change fuses of power supply
Power Supply
Voltage
Fuses
Output
Selector
Fuse holder
(e.g. 230V)
Fuses
Fuse Holder
