GE VOLUSON
i / VOLUSON
e
D
IRECTION KTI106052, REVISION 10 SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-81
8-20-20 Replacement of the Front and Rear Wheels
8-20-20-1 Manpower
Two person, 20 minutes
8-20-20-2 Tools
flat wrench 19
8-20-20-3 Preparations
1.) Power Off/Shutdown the system as described in Section 3-6-3 on page 3-72.
2.) Disconnect and remove the Voluson i / Voluson e from the Voluson Station.
3.) Disconnect and remove all external USB-devices (e.g. USB-printer).
4.) Remove the Cover Bottom as described in Section 8-20-11 on page 8-71.
5.) With one person one each side of the Voluson Station, hold on to the top and the bottom of the
Voluson Station and turn it on the back side of the Station on a soft ground (e.g. soft foam plastic).
8-20-20-4 Wheels - Removal Procedure
1.) Loosen the nut (wrench size 19) and remove the wheels through the hole.
8-20-20-5 Wheels - Installation Procedure
1.) Place the new Wheels and fix it with the nut (tighten with high torque).
2.) With one person one each side turn the Voluson Station upright.
3.) Mount the Cover Bottom as described in Section 8-20-11-5 on page 8-71.

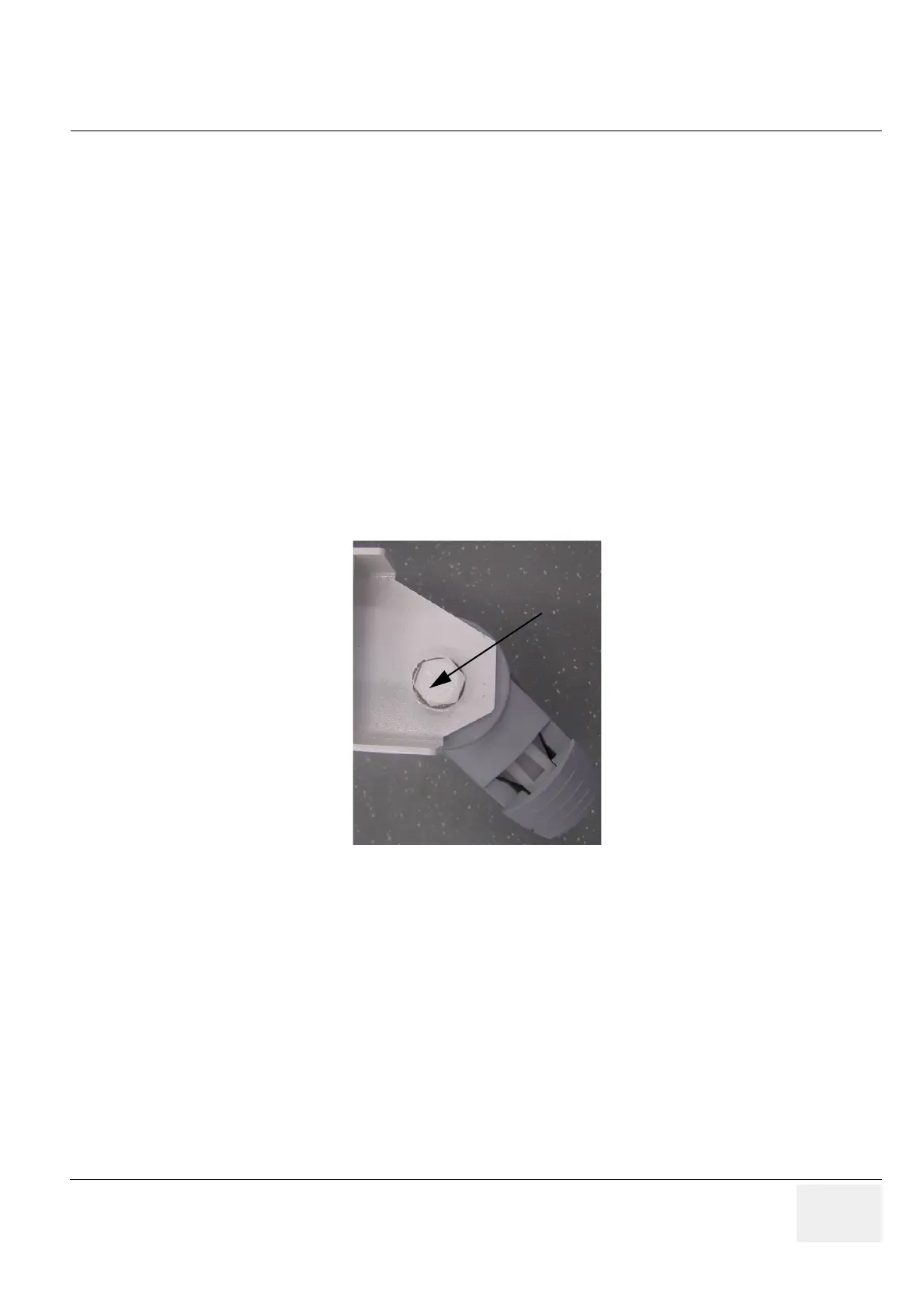

Figure 8-102 screw off the Wheels
