Chapter 9 - Renewal Parts 9-33

9-9-5 Optional Modo Cart

NOTE: The illustrations may not correspond to the actual product!

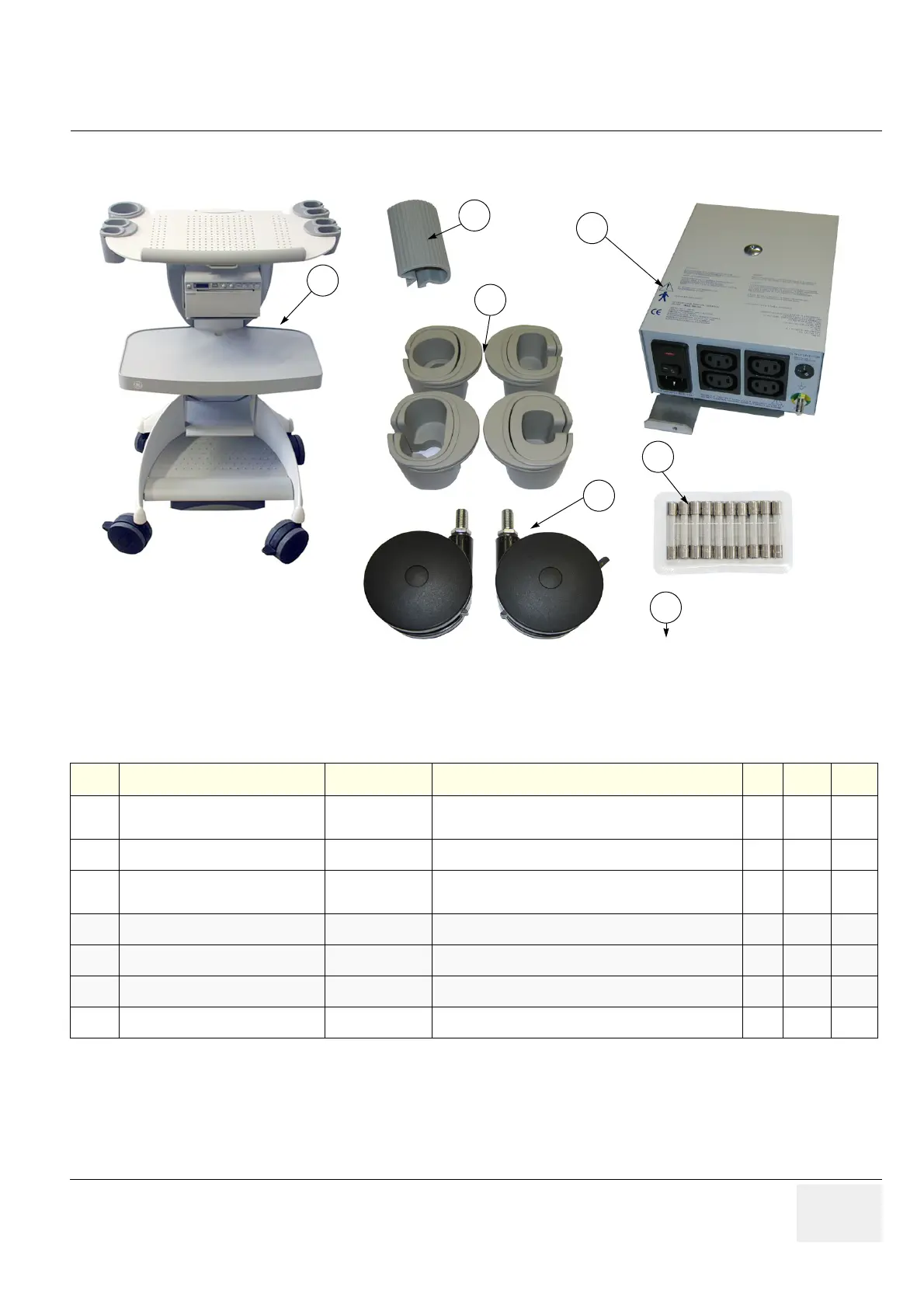

Figure 9-11 Modo Cart - Replacement parts

Table 9-15 Modo Cart - Replacement parts

Item Part Name Part Number Description

Qty CRU FRU

550

Modo Cart (without peripherals)

KTZ196285

H48651TD

Modo Cart incl. isolation transformer, probe and gel

holder, peripherals shelves, hand-rest and handles

-Y1

551

Cable Clip M-Cart

KTZ220885 Cable Clip M-Cart 2 Y 1

552

Isolation Transformer M-Cart

KTZ220714

Isolation Transformer (Power Supply)

IMED300WR M-Cart

1Y 1

553

Probe Holder Kit M-Cart

KTZ220886 Probe Holder Kit M-Cart 1 Y 1

554

Front and Rear Wheels M-Cart

KTZ220887 Front and Rear Wheels M-Cart 2 Y 1

555

Fuses M-Cart

KTZ196333 Fuses (10Stk. 4A/10Stk. 2A) for IMED300WR - Y 1

556

Screw Kit

KTZ280045 various screws 1 Y 1

550

551

552

553

554

555

556
