GE VOLUSON
i / VOLUSON
e
D
IRECTION KTI106052, REVISION 10 SERVICE MANUAL
6-8 Section 6-7 - Dock Cart light Height Adjustment
Section 6-7
Dock Cart light Height Adjustment
1.) Make sure that the power cable is not connected to the Dock Cart light.
2.) Screw off the 4 screws of the Top Rear Cover.
3.) Remove the 4 screws which hold together the Top Frame’s fixation clamp and the Bottom Frame.
4.) Move the Top Frame to the desired position.
5.) Fixate the Top Frame’s position by means of the 4 screws.
6.) Re-apply the Top Rear Cover and fasten with the 4 screws.
6-7-1 Adjusting height of the shelf
NOTE: To adjust the height of a shelf, the shelf must be empty.
NOTE: Make sure to lock the brakes of the Dock Cart light.
You need an Allen key, size 5.
1.) Remove the 4 Allen screws - 2 above and 2 below the shelf.
2.) Adjust height.
3.) Screw the 4 Allen screws back in.
!! CAUTION:
Only adjust the height of the Dock Cart light without the Voluson i / Voluson e and
any peripherals mounted.
!! CAUTION:
Be careful not to squeeze your fingers when adjusting the height of the Dock Cart light.

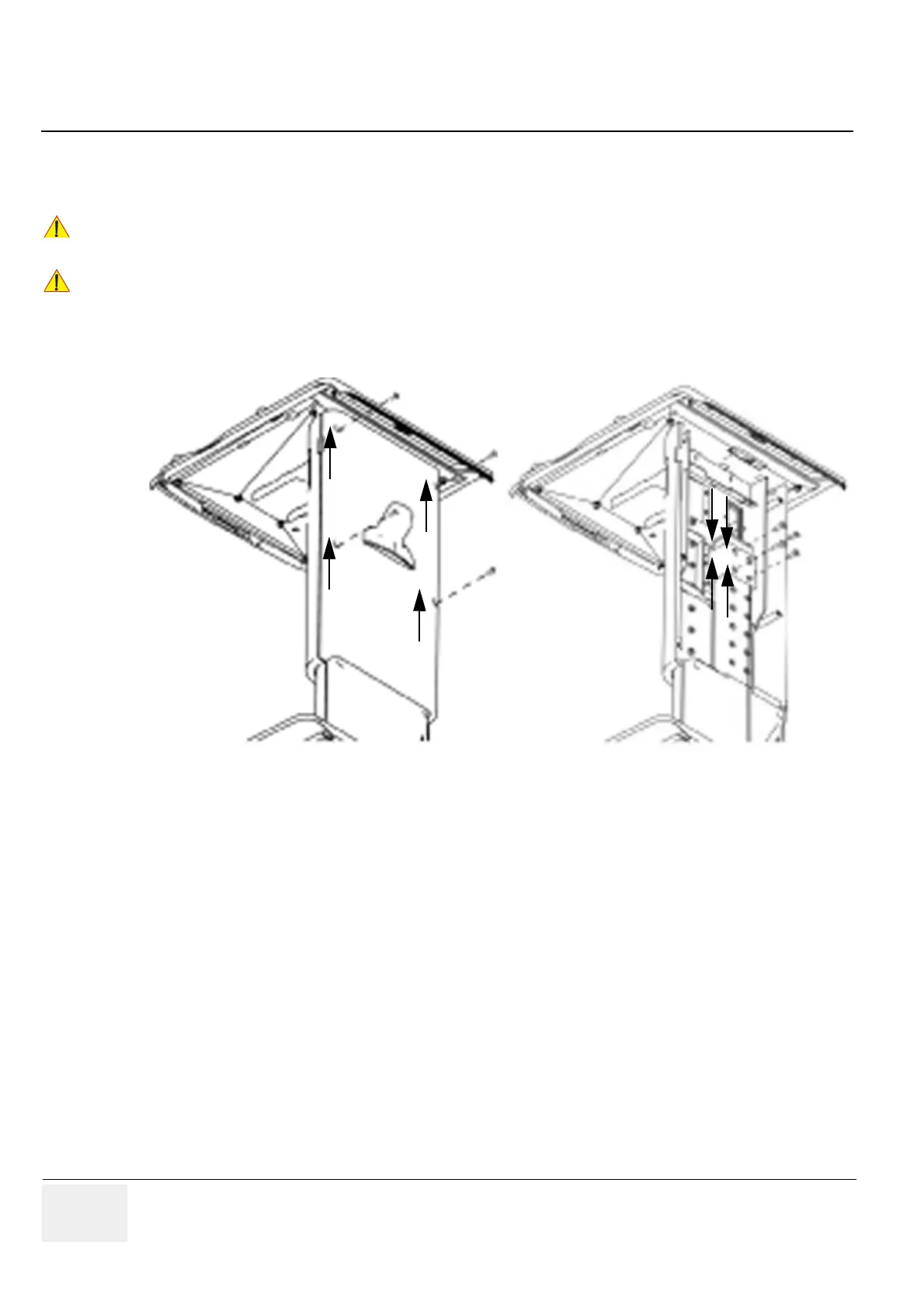

Figure 6-9 remove 4 screws of Top Rear Cover / remove 4 screws
