8-32 Section 8-14 - Replacement of the BBDI Rigid Flex Assembly
Section 8-14
Replacement of the BBDI Rigid Flex Assembly
8-14-1 Manpower
One person, 40 minutes
8-14-2 Tools
Phillips screwdriver 1 and 2
8-14-3 Preparations
1.) Power Off/Shutdown the system as described in Section 3-6-3 on page 3-72.
2.) Disconnect all external USB-devices (e.g., USB printer).
3.) Remove the Battery as described in Section 8-11-4 on page 8-29.
4.) Remove the Handle as described in the Section 8-10-4 on page 8-28.
5.) Remove the Keyboard module as described in Section 8-15-4 on page 8-37.
6.) Remove the LCD Display Frame as described in Section 8-12-4 on page 8-30.
8-14-4 Rigid Flex Assy - Removal Procedure
1.) Loosen the 2 screws, move the bracket which fasten the BBDI Rigid Flex forwards and remove it.

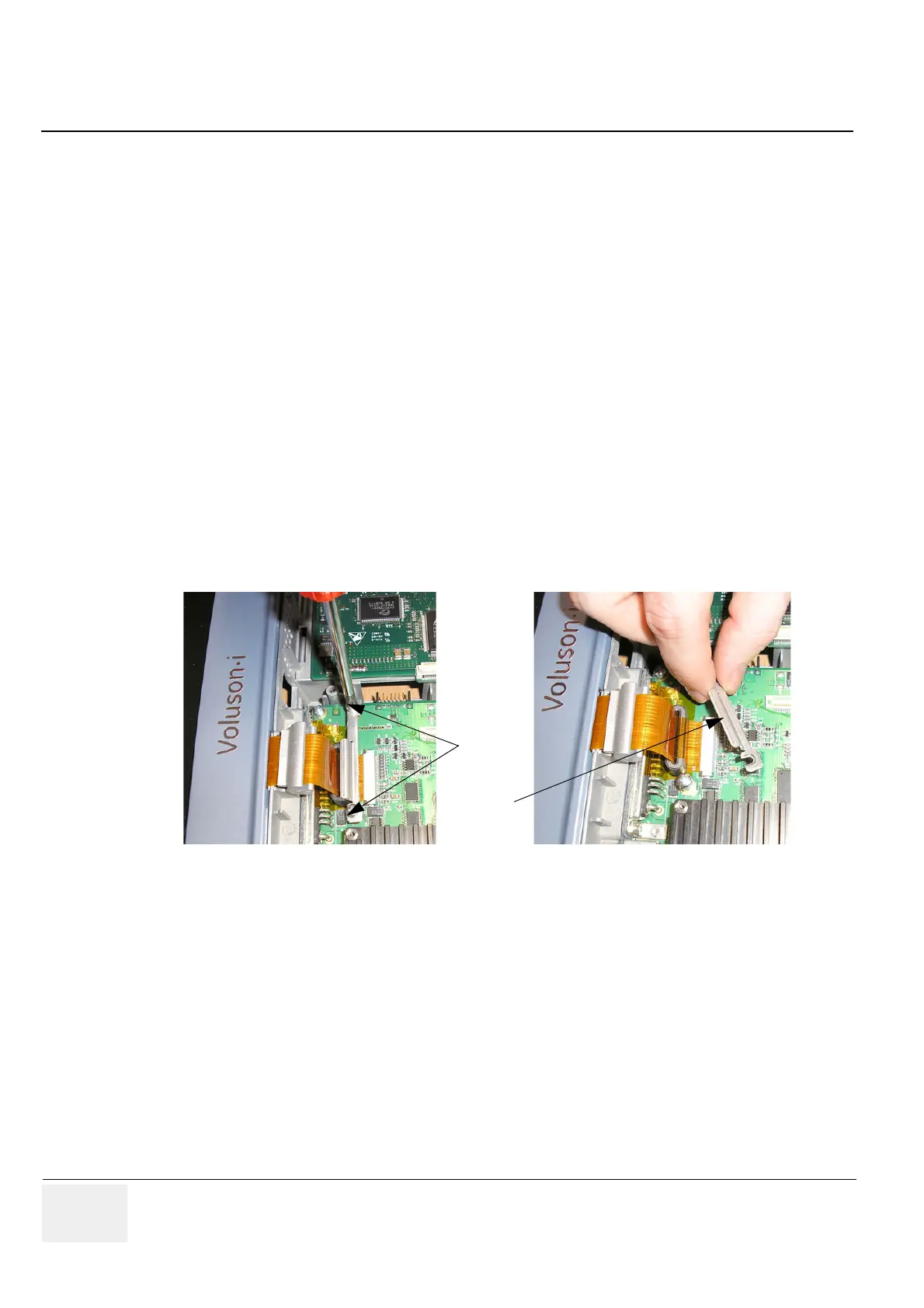

Figure 8-40 loosen screws and remove bracket
screws
bracket
