3-5-13 Connecting the VCR (VideoCassette Recorder)
NOTE: There are 2 types of Mitsubishi HS-MD3000 VCR (PAL and NTSC) approved by GE.
3-5-13-1 Direct Connection to the Voluson i / Voluson e system
Use the standard VCR type (PAL or NTSC) that is suited to your region.
The video signal is received through a VGA-to-video converter.

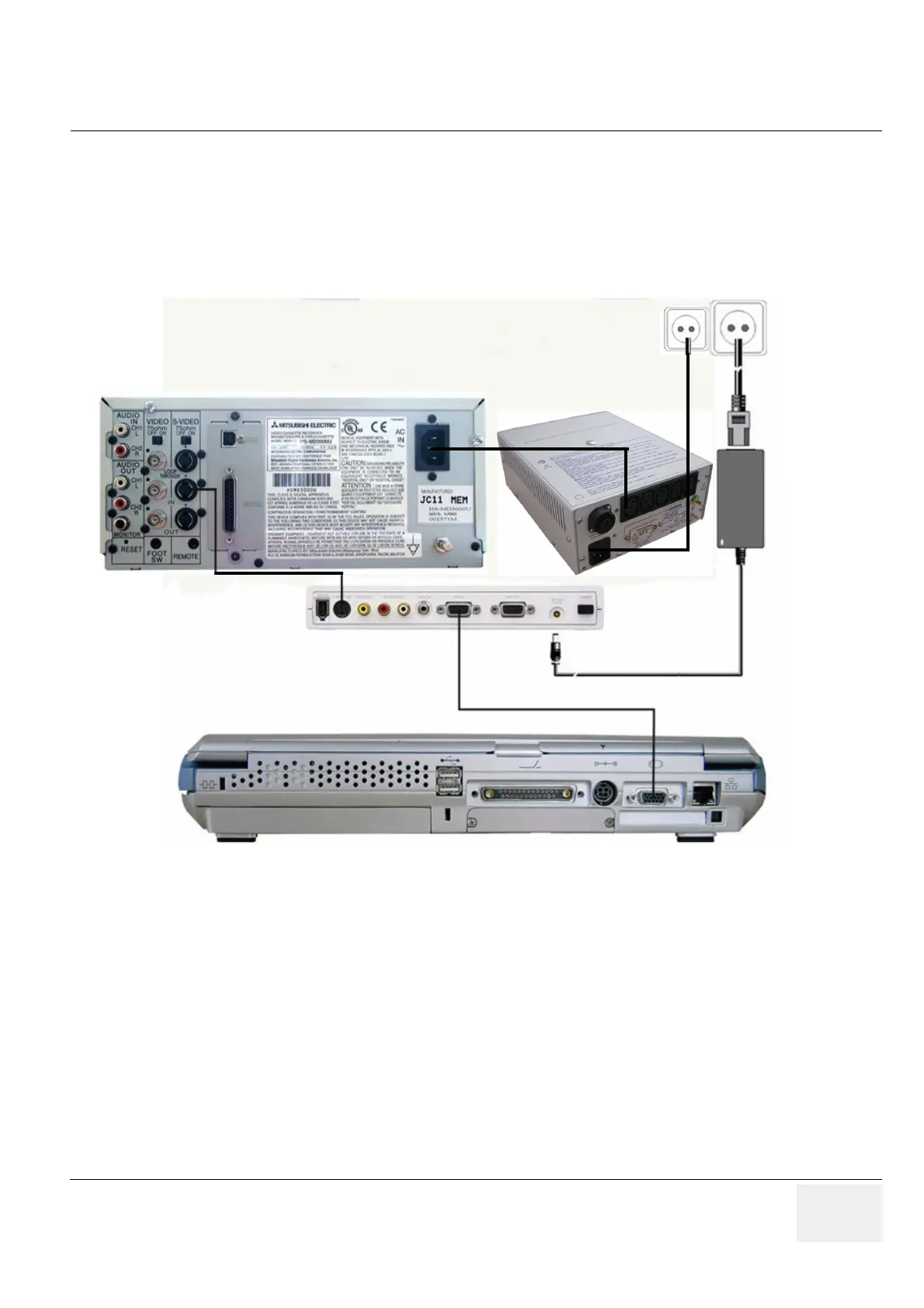

Figure 3-69 Connection Scheme - VCR with Video Scan Converter Canopus
power
socket
Video Converter (rear)
Power
Supply
Voluson i/e (rear)
Isolation Transformer
