Chapter 8 - Replacement Procedures 8-67
8-20-8 Replacement of the Console Bottom Shelf
8-20-8-1 Manpower
Oner person, 10 minutes
8-20-8-2 Tools
Phillips screwdriver 1
8-20-8-3 Preparations
1.) Remove the Printer.
2.) Remove the Cover BW Printer Shelf as described in Section 8-20-7 on page 8-66.
8-20-8-4 Console Bottom Shelf - Removal Procedure
1.) Screw off the 2 screws and carefully remove it.
8-20-8-5 Console Bottom Shelf - Installation Procedure
1.) Place the new Shelf and fasten with the 2 screws.
2.) Mount the Cover BW Printer Shelf as described in Section 8-20-7-5 on page 8-66.

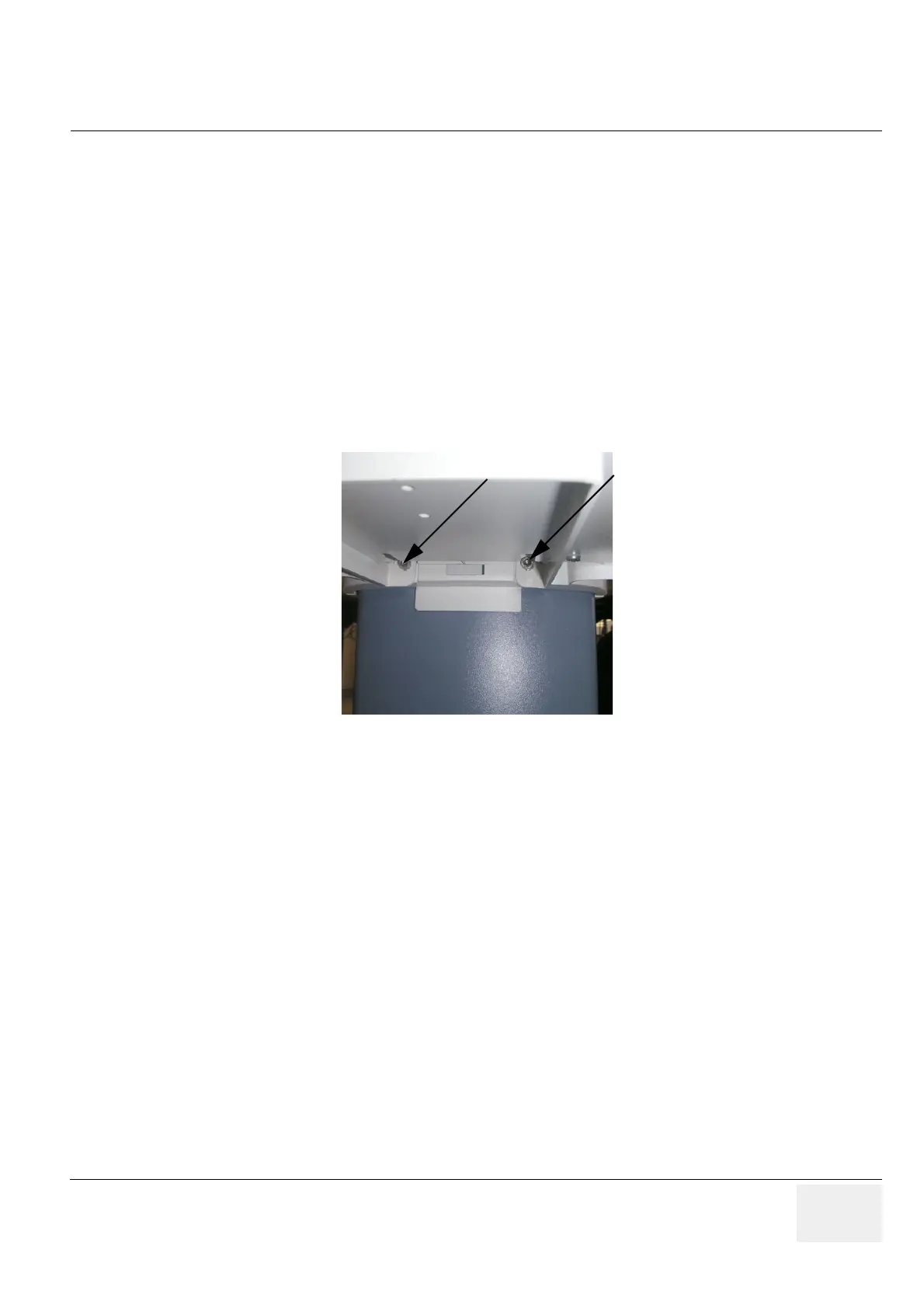

Figure 8-87 screw off the 2 screws
