3-60 Section 3-5 - Connection of Auxiliary Devices
3-5-14 Connecting the DVD Recorder
3-5-14-1 Direct Connection to the Voluson i / Voluson e system
The video signal is received through a VGA-to-video converter.
NOTICE
!! NOTICE:
The Sony DVO-1000MD DVD recorder is only able to read and write on DVD+RW (ReWriteable)
media! Please check on your DVD case before using.

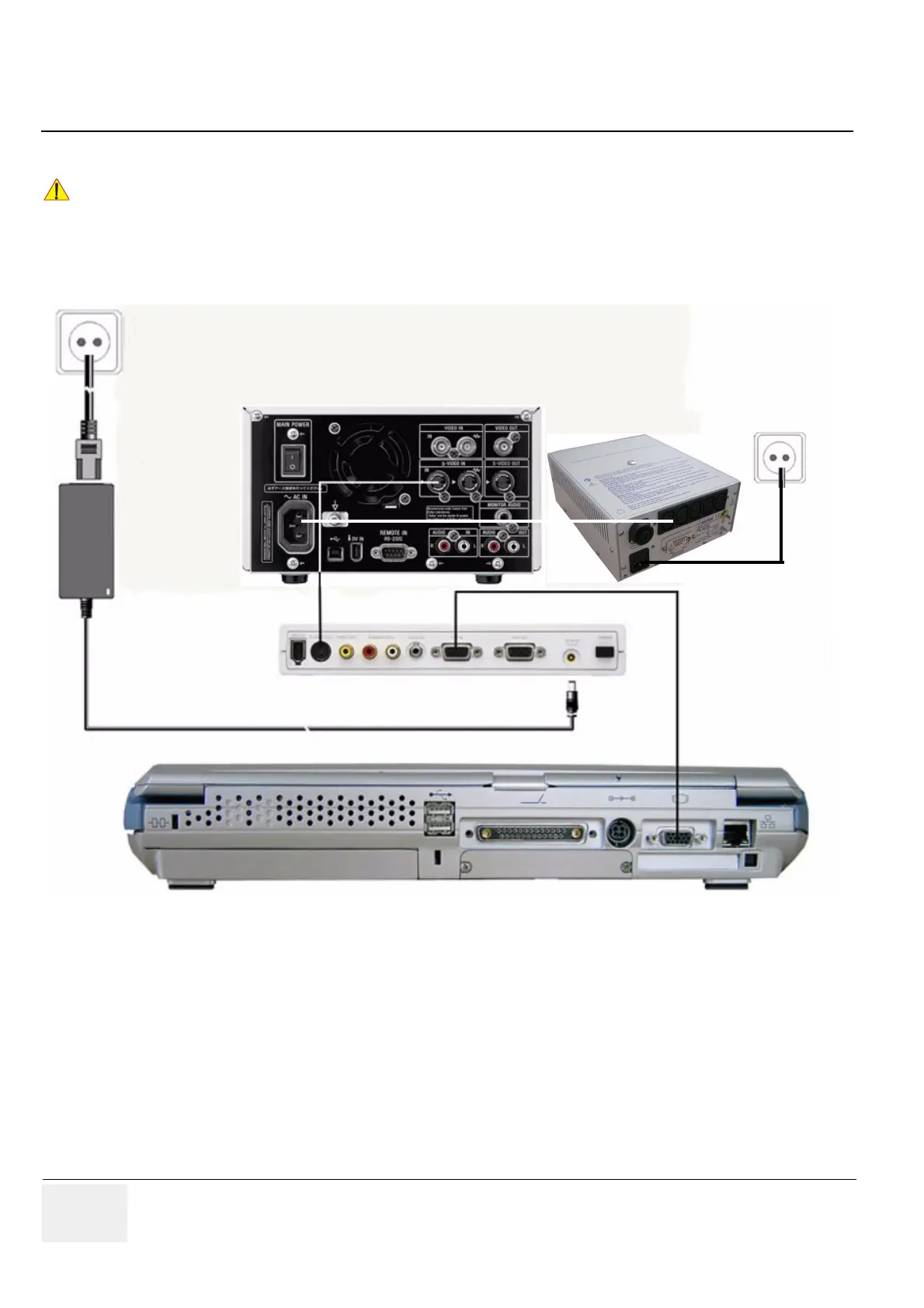

Figure 3-74 Connection Scheme - DVD Recorder with Video Scan Converter Canopus
power
socket
power
socket
isolation
transformer
Power
Supply
Video Converter (rear)
Voluson i/e (rear)
