GE VOLUSON
i / VOLUSON
e
D
IRECTION KTI106052, REVISION 10 SERVICE MANUAL
6-6 Section 6-5 - Modo Cart Height Adjustment
Section 6-5
Modo Cart Height Adjustment
NOTE: A small 4mm hex wrench is needed to loosen the 2 screws on the rear of the Modo Cart.
1.) Loosen the 2 screws at the rear of the Modo Cart using the 4mm hex wrench.
NOTE: DO NOT remove this 2 screws!
2.) Lower respectively raise the shelf assembly until the Modo Cart height is at desired position.
3.) Tighten the screws using the 4 mm hex wrench.
NOTE: You may need to reposition the cable management clips when setting the Modo Cart height to another
position.
!! CAUTION:
Only adjust the height of the Modo Cart without the Voluson i / Voluson e and
any peripherals mounted.

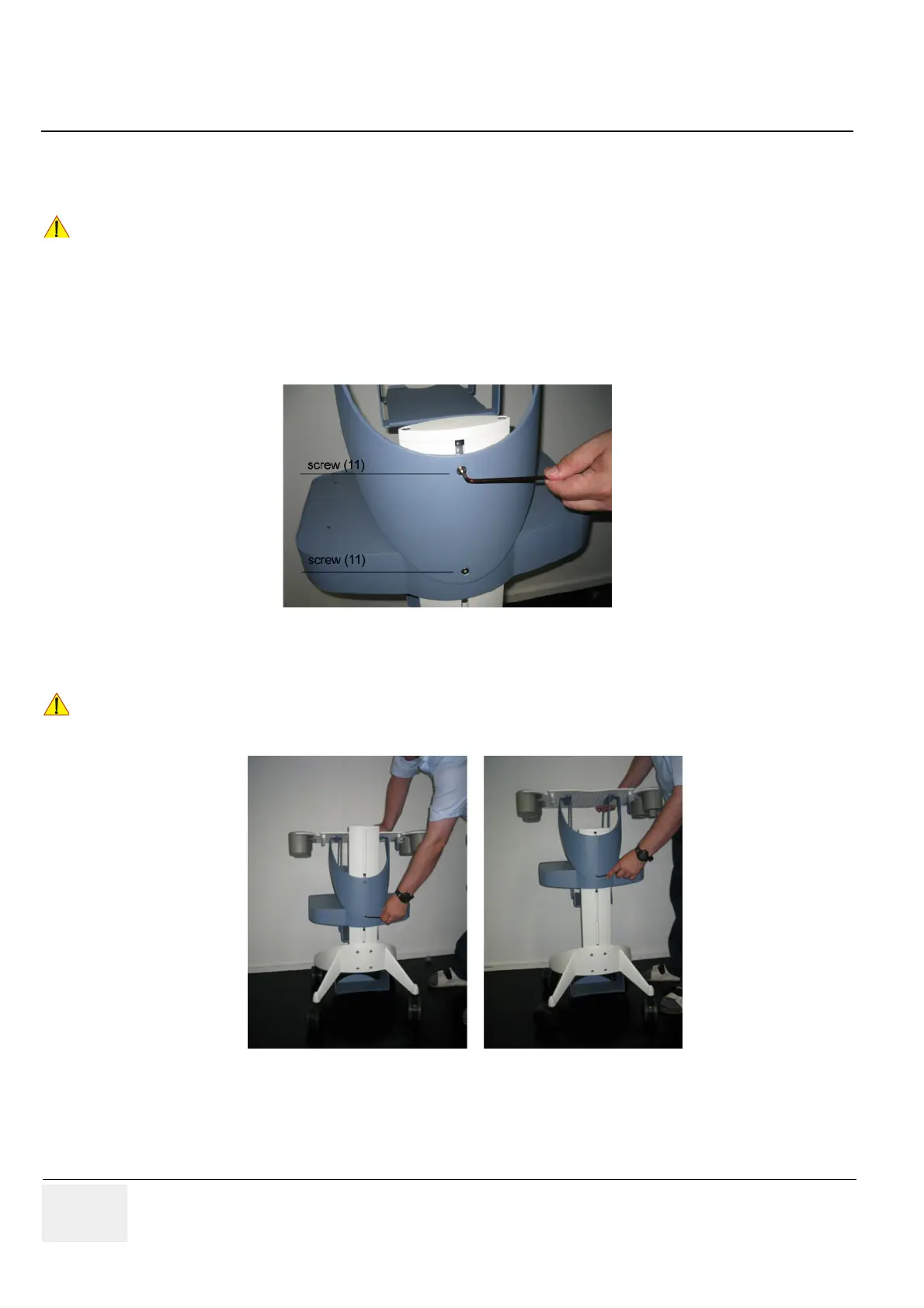

Figure 6-6 loosen 2 screws
!! NOTICE:
When lowering the height of the Modo Cart, be sure to check that the lower storage shelf does not hit
any device on the bottom shelf.
Figure 6-7 lower/raise the shelf assembly, then fasten screws
raise
shelf assembly
lower
shelf assembly
