GE VOLUSON i / VOLUSON e
D
IRECTION KTI106052, REVISION 10 SERVICE MANUAL
5-38 Section 5-6 - Keyboard and Control Panel
5-6-1 Keyboard and Control Panel Layout
Figure 5-13 below illustrates the layout of the Voluson i / Voluson e keyboard and control panel.
The buttons and controls are grouped together for ease of use; the different areas of the keyboard and
control panel include the following:
- Soft-menu Buttons – part of the Extended Keyboard
- On/Off Switch
- TGC - Slider Controls
- Alpha-numeric Keyboard
- GAIN Rotary Knob
- Extended Keyboard
- Trackball and Trackball buttons
The Voluson i / Voluson e keyboard unit comprises the main user-interactive devices: an alphanumeric
keyboard, a 1.5” trackball, and an Extended keyboard. In addition, it includes one or more printed circuit
boards (PCBs) designed to carry the various electronic components - these include the keyboards’
controller, TGC potentiometers, USB Hub, and backlight illumination.

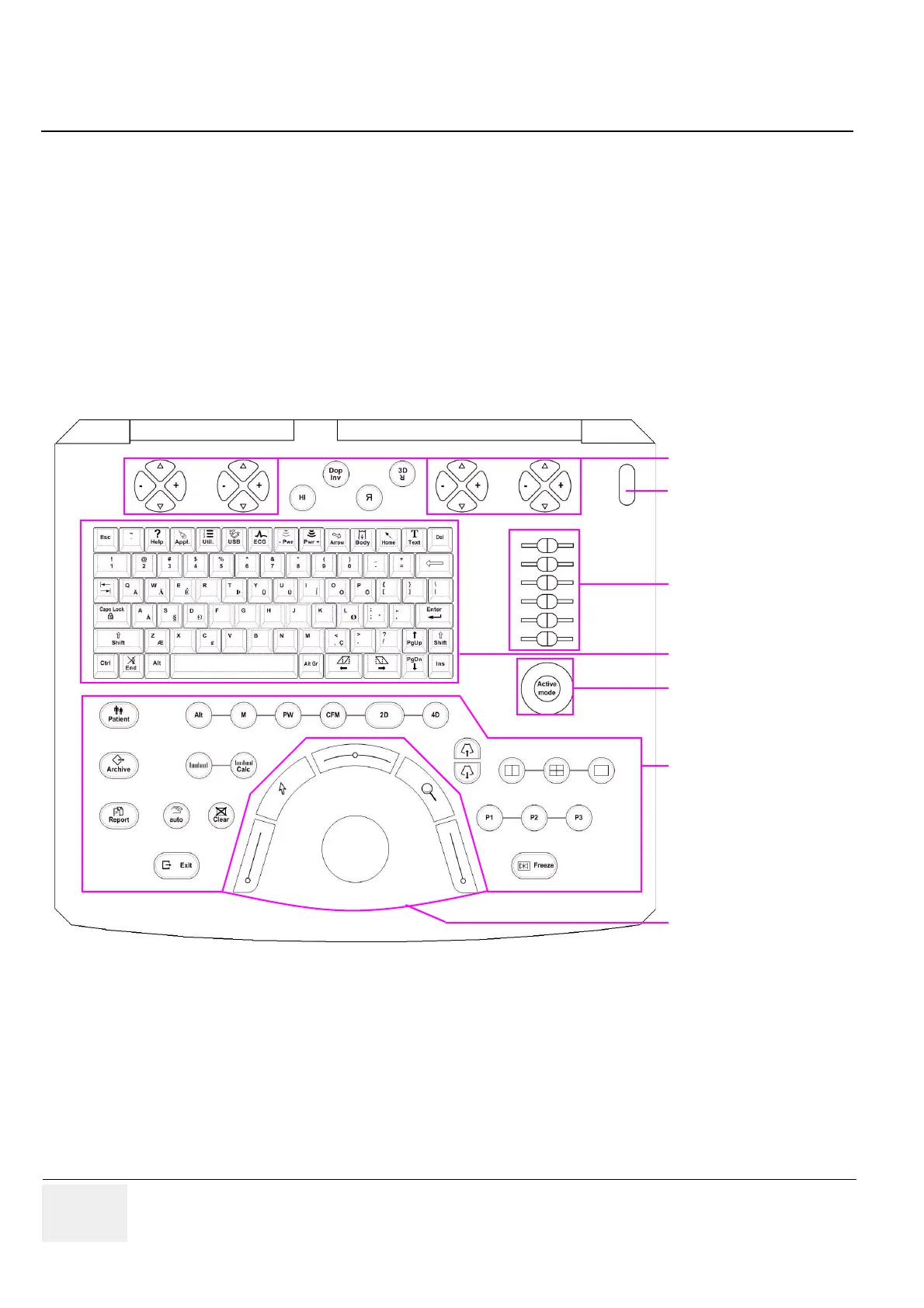

Figure 5-13 Voluson i / Voluson e Keyboard and Control Panel Layout
Soft-menu Buttons
On/Off Switch
TGC - Slider Controls
Gain Rotary
(Active Mode)
Alpha-numeric Keyboard
Extended Keyboard
Trackball and
Trackball buttons
